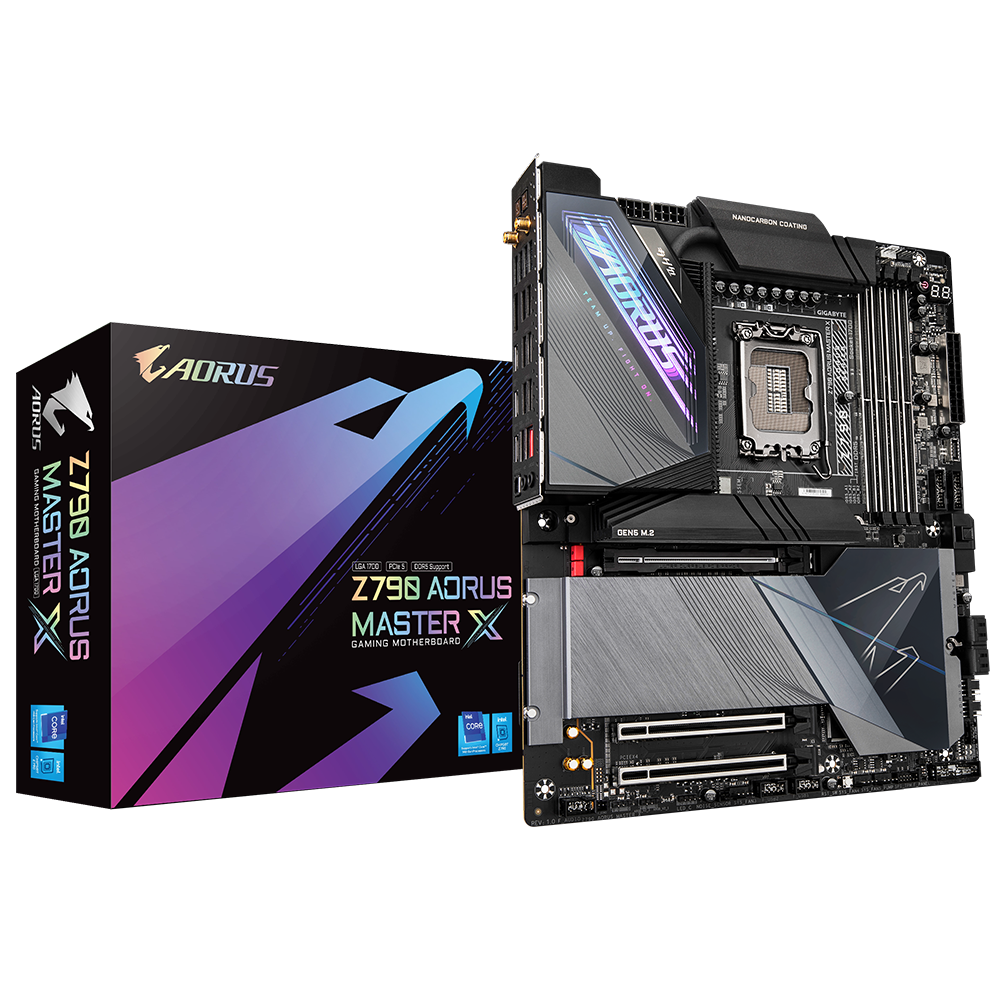

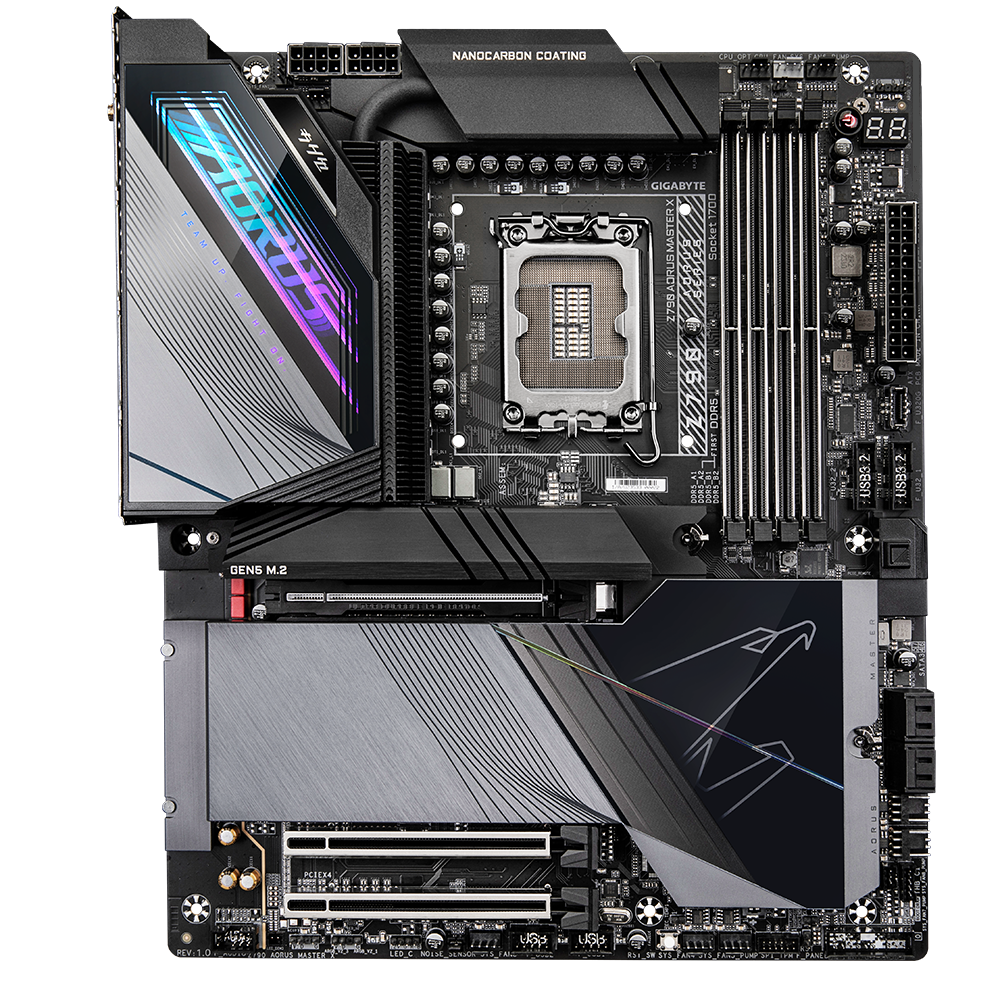

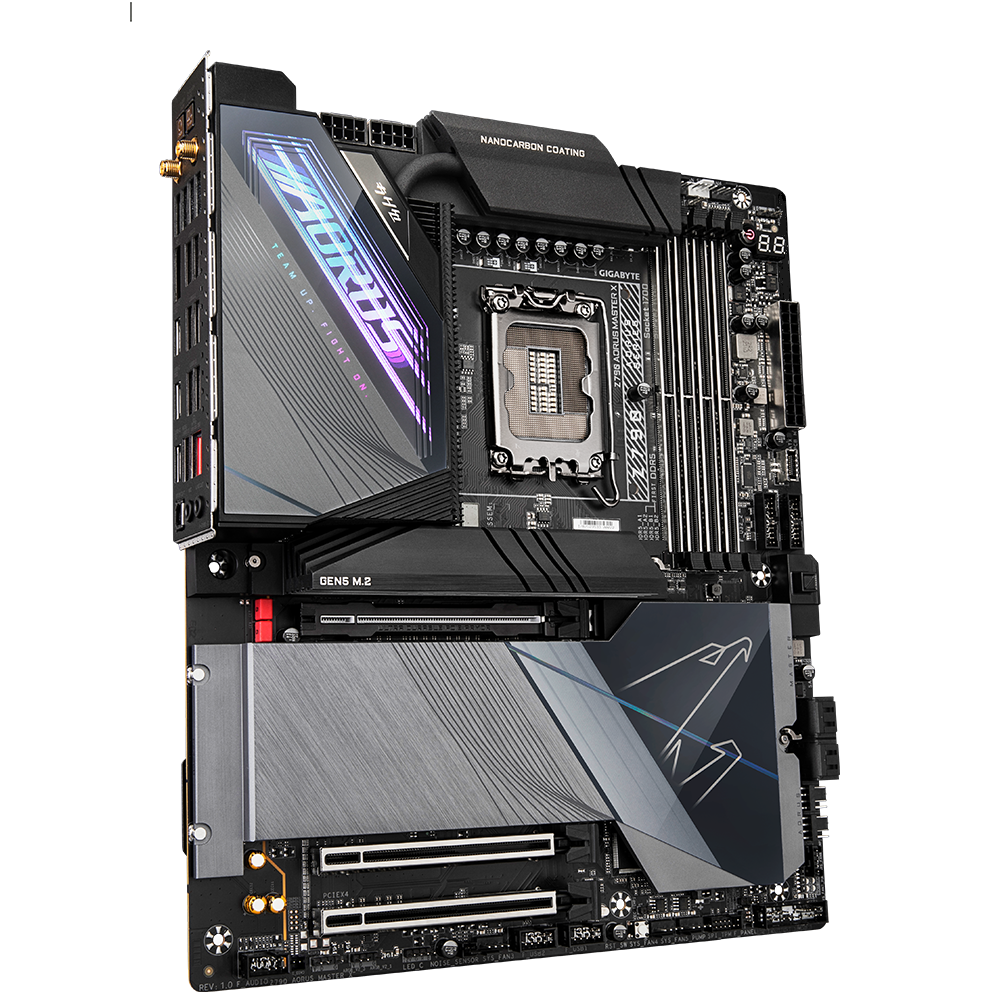

| Model | MASTER X |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | Support for the 13th and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors* |
| Chipsets | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR5 DIMM sockets |
| Memory Standard | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O. |
| Maximum Memory Supported | up to 192 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Express x16 | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, su |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| SATA RAID | RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics |
| Onboard Audio | |
| Audio Channels | 2/4/5.1-channel |
| Audio Chipset | Realtek ALC1220-VB codec |
| Onboard LAN | |
| LAN Chipset | MarvellÆ AQtion AQC113C 10GbE LAN chip |
| Max LAN Speed | 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |

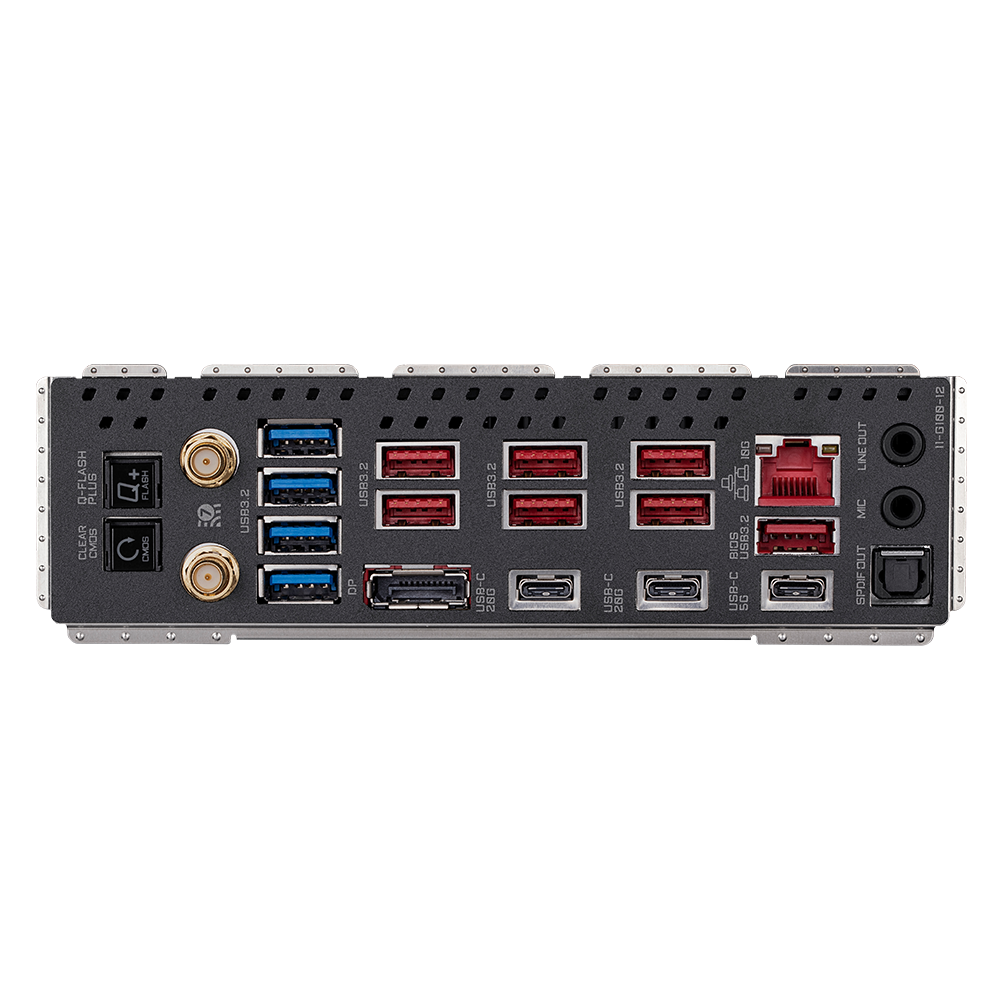

| Rear Panel Ports | |
| USB | 3 x USB Type-CÆ ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel),1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 1 support - 7 x USB 3.2 Gen 2 Type-A ports (red) on the back |
| S/PDIF Out | 1 x optical S/PDIF Out connector |
| Audio Ports | 2 x audio jacks |
| Video Ports | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Onboard USB | |
| Onboard 1394 | |
| Physical Spec | |
| Form Factor | E-ATX Form Factor; 30.5cm x 27.0cm |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Featured | Yes |
|---|---|
| brand | Gigabyte |
