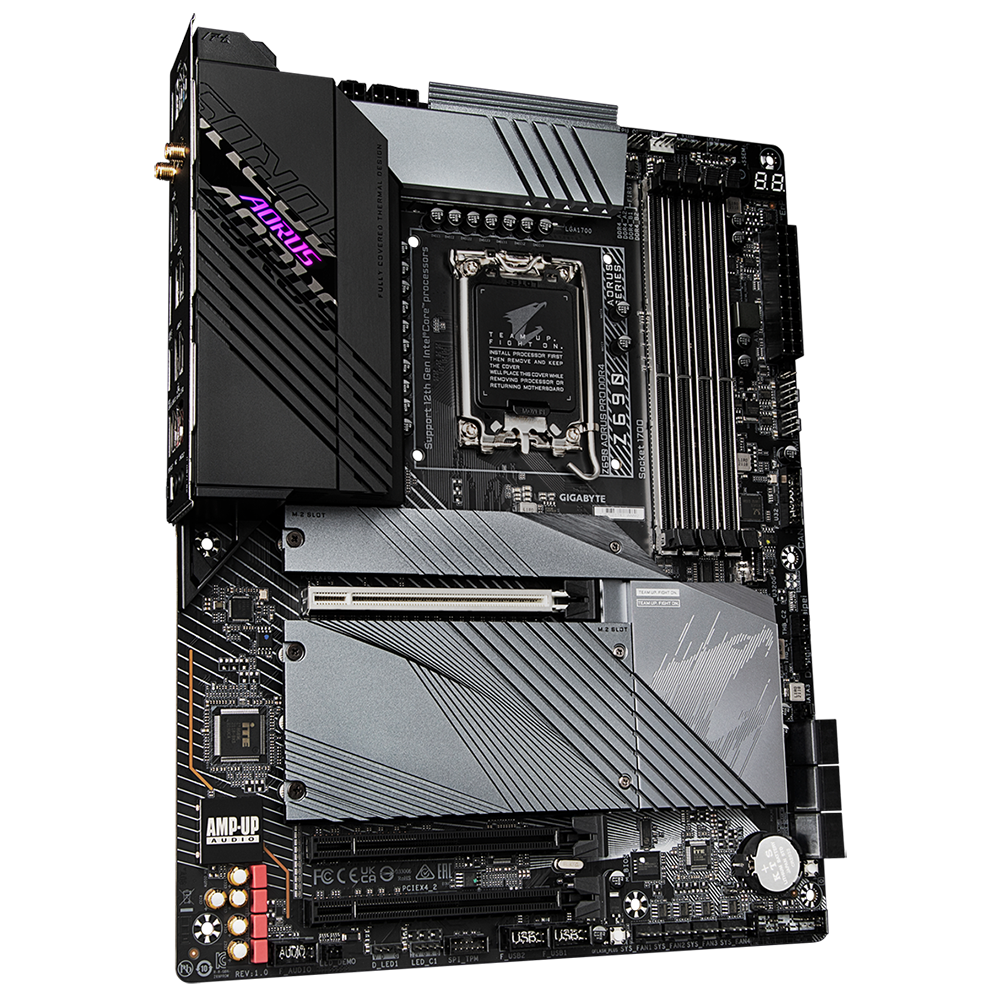

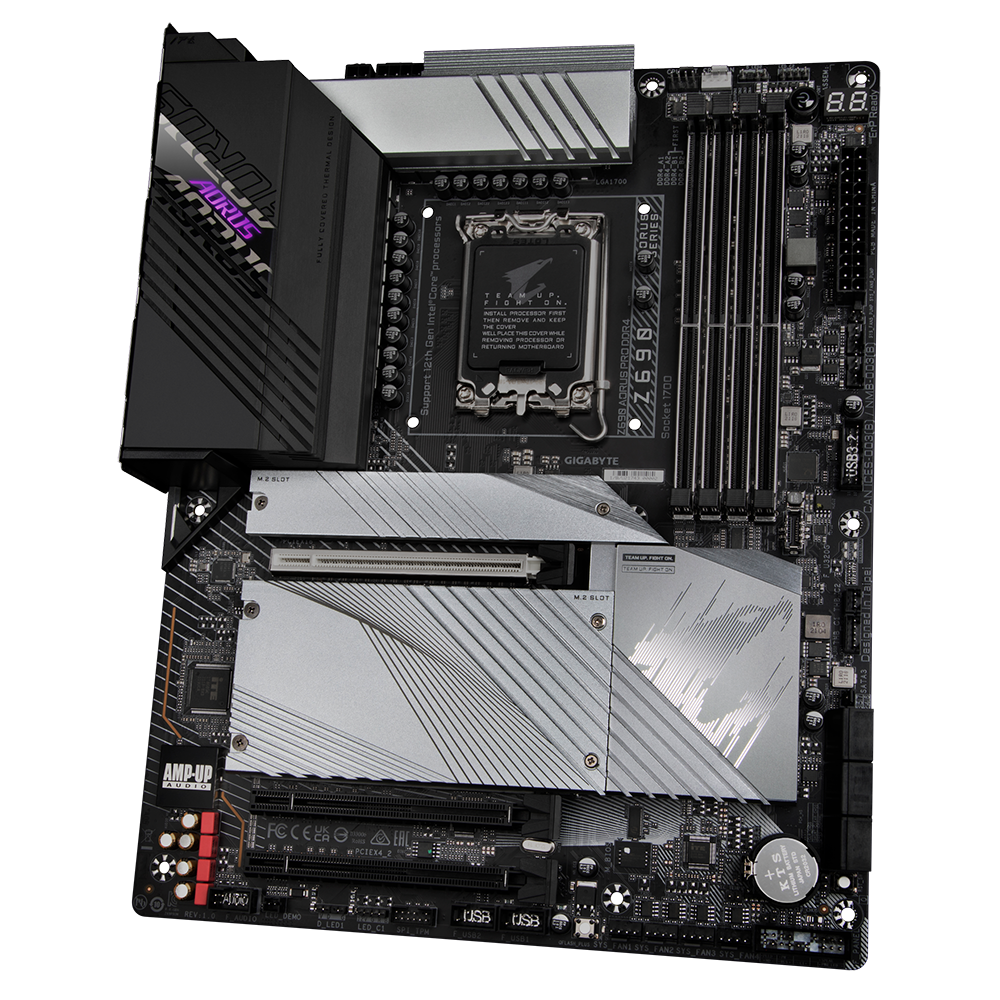

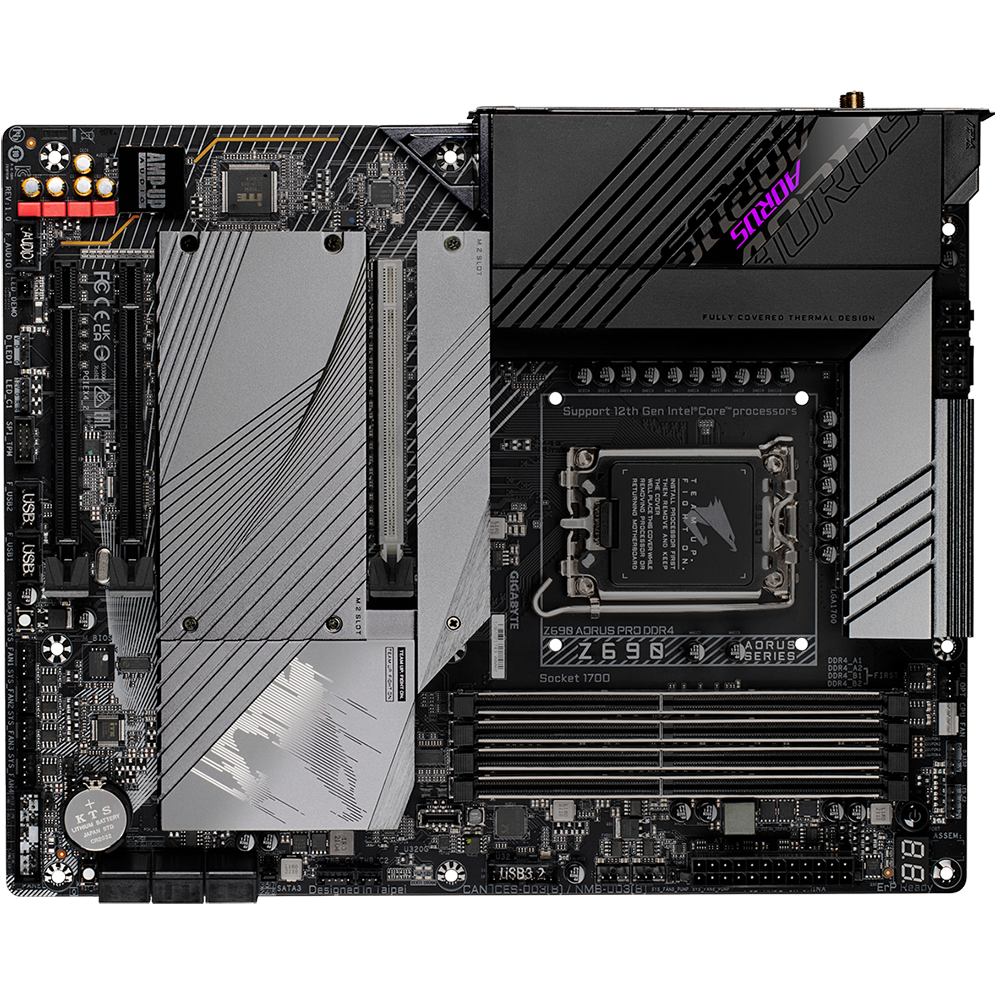

| CPU | LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors |
| (Go to GIGABYTE's website for the latest CPU support list.) |
| L3 cache varies with CPU |
| (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel Z690 Express Chipset |
| Memory | DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x DisplayPort, supporting a maximum resolution of4096x2304@60Hz |
| * Support for DisplayPort 1.2 version and HDCP 2.3 |
| (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek ALC4080 CODEC |
| High Definition Audio |
| 2-channel analog output |
| Support for S/PDIF Out |
| 7.1-channel digital signals |
| * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 6 AX200: |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band |
| BLUETOOTH 5.2 |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| (The PCIEX16 slot conforms to PCI Express 5.0 standard.) |
| 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
| (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) |
| 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) |
| 6 x SATA 6Gb/s connectors |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Intel Optane Memory Ready |
| * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| USB | Chipset: |
| 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) |
| 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| Chipset+2 USB 3.2 Gen 1 Hubs: |
| 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Chipset+2 USB 2.0 Hub: |
| 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x 4-pin ATX 12V power connector |
| 1 x CPU fan header |
| 1 x water cooling CPU fan header |
| 4 x system fan headers |
| 2 x system fan/water cooling pump headers |
| 2 x addressable LED strip headers |
| 2 x RGB LED strip headers |
| 4 x M.2 Socket 3 connectors |
| 6 x SATA 6Gb/s connectors |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB Type-C header, with USB 3.2 Gen 2x2 support |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 1 x noise detection header |
| 2 x Thunderbolt add-in card connectors |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 1 x power button |
| 1 x reset button |
| 1 x Q-Flash Plus button |
| 2 x temperature sensor headers |
| 1 x reset jumper |
| 1 x Clear CMOS jumper |
| ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |

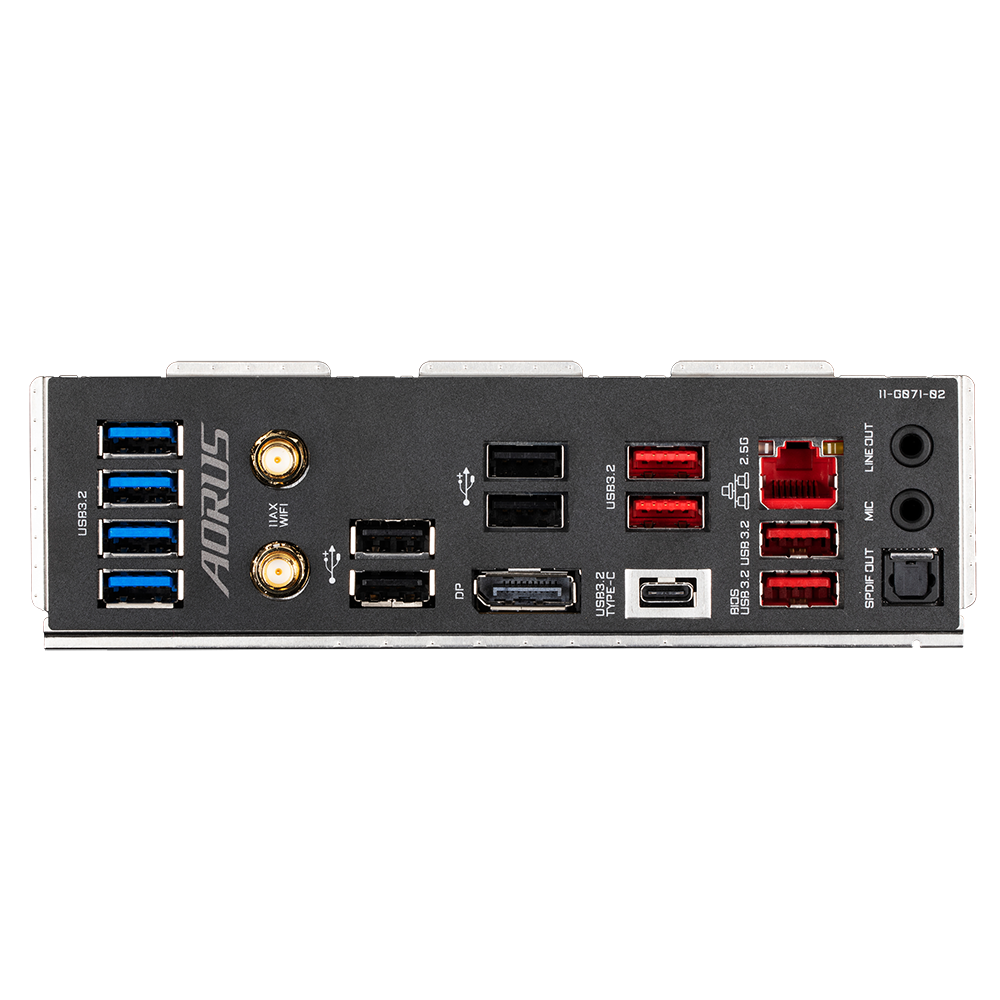

| Back Panel Connectors | 1 x USB Type-C port, with USB 3.2 Gen 2x2 support |
| 4 x USB 3.2 Gen 2 Type-A ports (red) |
| 4 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
| 2 x SMA antenna connectors (2T2R) |
| 1 x DisplayPort |
| 1 x RJ-45 port |
| 1 x optical S/PDIF Out connector |
| 2 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| Noise detection |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| Fast Boot |
| Game Boost |
| ON/OFF Charge |
| RGB Fusion |
| Smart Backup |
| System Information Viewer |
| Support for Q-Flash Plus |
| Support for Q-Flash |
| Support for Xpress Install |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
