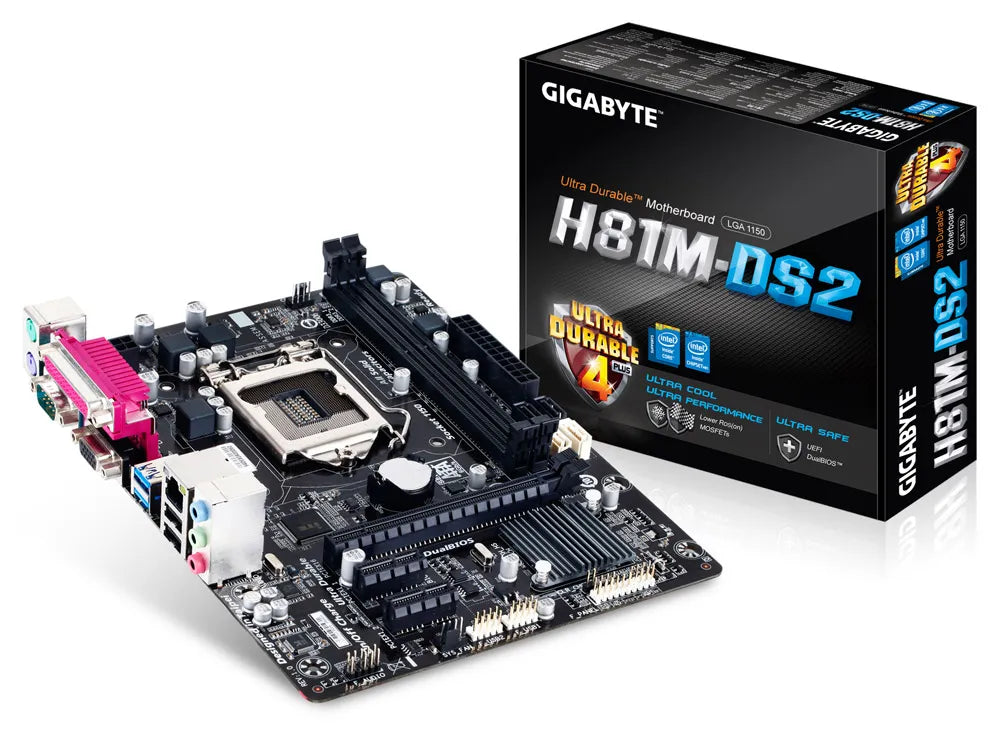

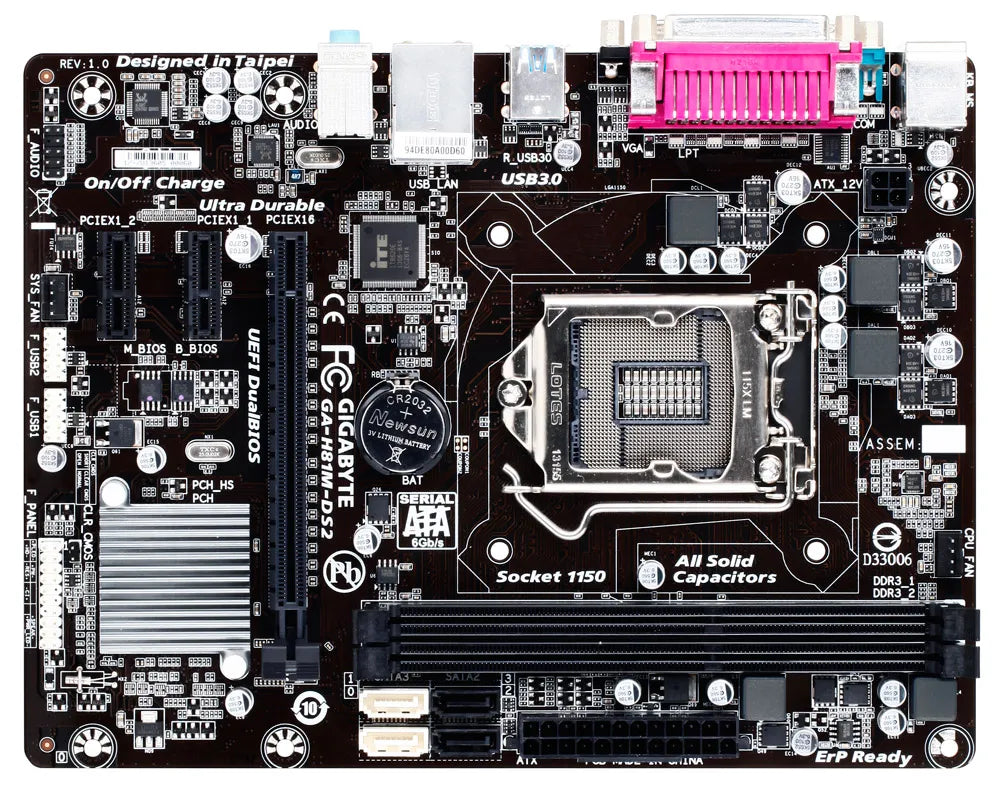

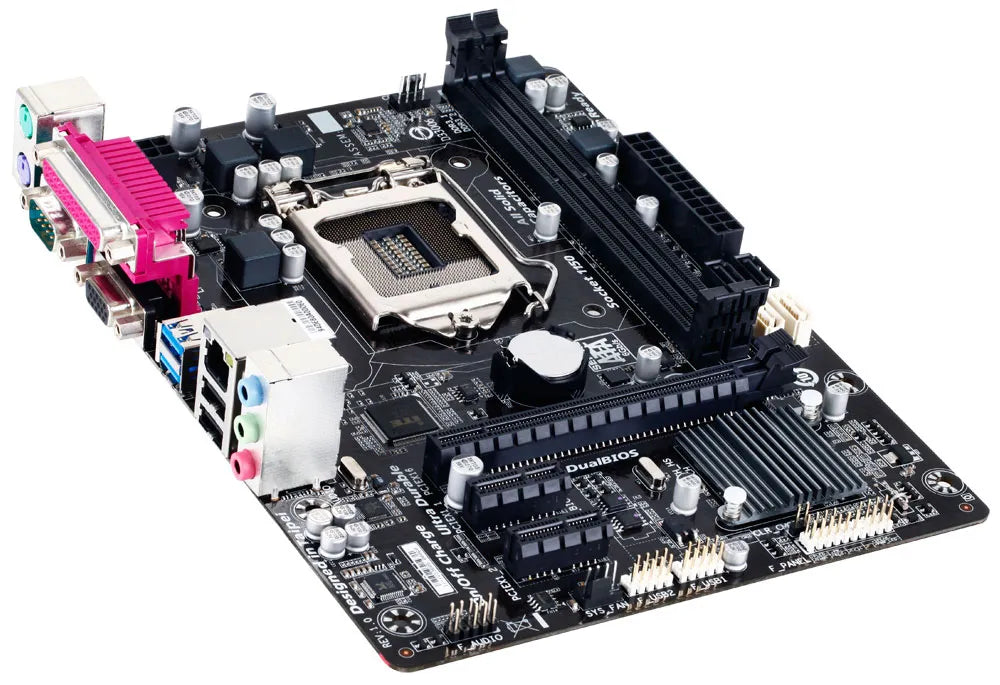

| Model | GA-H81M-DS2 |
| CPU | 1. Support for IntelÆCoreô i7 processors/IntelÆCoreô i5 processors/IntelÆCoreô i3 processors/IntelÆPentiumÆprocessors/IntelÆCeleronÆprocessors in the LGA1150 package |
| 2. L3 cache varies with CPU |
| (Please refer ìCPU Support Listà for more information.) |
| Chipset | IntelÆ H81 Express Chipset |
| Memory | 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory |
| * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
| 2. Dual channel memory architecture |
| 3. Support for DDR3 1600/1333 MHz memory modules |
| 4. Support for non-ECC memory modules |
| 5. Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer ìMemory Support Listà for more information.) |
| Onboard Graphics | Integrated Graphics Processor ñ IntelÆHD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920—Š1200 |
| 2. Maximum shared memory of 1 GB |
| Audio | 1. RealtekÆALC887 codec |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN | RealtekÆ GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| 2. 2 x PCI Express x1 slots |
| (The PCI Express slots conform to PCI Express 2.0 standard.) |
| Storage Interface | Chipset: |
| 1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices |
| 2. 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices |
| USB | Chipset: |
| 1. Up to 2 USB 3.0/2.0 ports on the back panel |
| 2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector |
| 3. 2 x SATA 6Gb/s connectors |
| 4. 2 x SATA 3Gb/s connectors |
| 5. 1 x CPU fan header |
| 6. 1 x system fan header |
| 7. 1 x front panel header |
| 8. 1 x front panel audio header |
| 9. 2 x USB 2.0/1.1 headers |
| 10. 1 x Clear CMOS jumper |

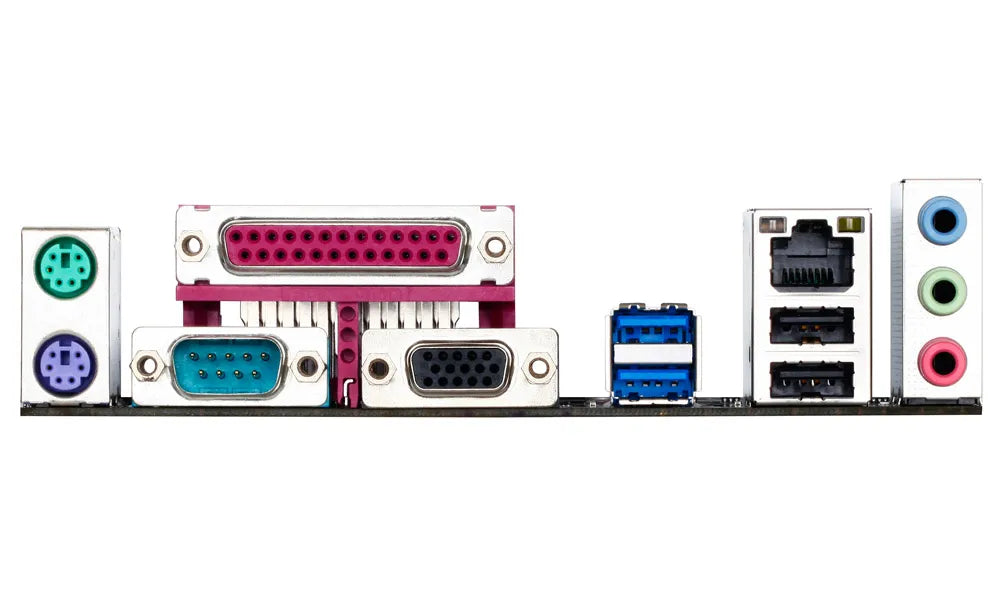

| Back Panel Connectors | 1. 1 x PS/2 mouse port |
| 2. 1 x PS/2 Keyboard port |
| 3. 1 x parallel port |
| 4. 1 x serial port |
| 5. 1 x D-Sub port |
| 6. 2 x USB 3.0/2.0 ports |
| 7. 2 x USB 2.0/1.1 ports |
| 8. 1 x RJ-45 port |
| 9. 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | 1. System voltage detection |
| 2. CPU/System temperature detection |
| 3. CPU/System fan speed detection |
| 4. CPU/System overheating warning |
| 5. CPU/System fan fail warning |
| 6. CPU/System fan speed control |
| * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1. 2 x 64 Mbit flash |
| 2. Use of licensed AMI EFI BIOS |
| 3. Support for DualBIOSô |
| 4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |

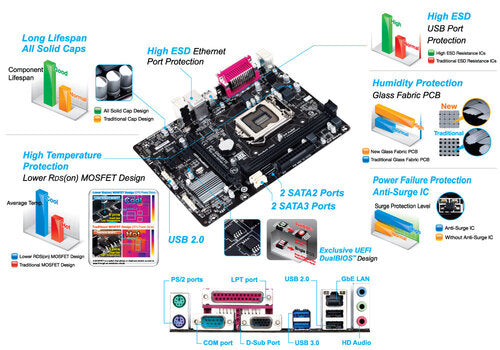

| Unique Features | 1. Support for Q-Flash |
| 2. Support for Xpress Install |
| 3. Support for APP Center |
| * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. |
| @BIOS |
| EasyTune |
| EZ Setup |
| USB Blocker |
| 4. Support for ON/OFF Charge |
| Bundled Software | NortonÆ Internet Security (OEM version) |
| Operating System | Support for Windows 10/8.1/8/7 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Warranty | 3 Years ManufacturerÃs Warranty |
| Country Of Origin | China |
| Manufacturer | Gigabyte Technology (India) Private Limited |
| B-Wing, 807 & 808, Naman MidTown |
| Elphinstone Road, Mumbai 400013 |
| Email:sales@gigabyte.in |
| Tel: +91 0 22 40633222 |
| Importer | WPG C&C Computers And Peripheral(I) Pvt.Ltd |
| Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III, |
| New Delhi-110020 |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 27 x 23.5 x 5.8 Centimeters |
