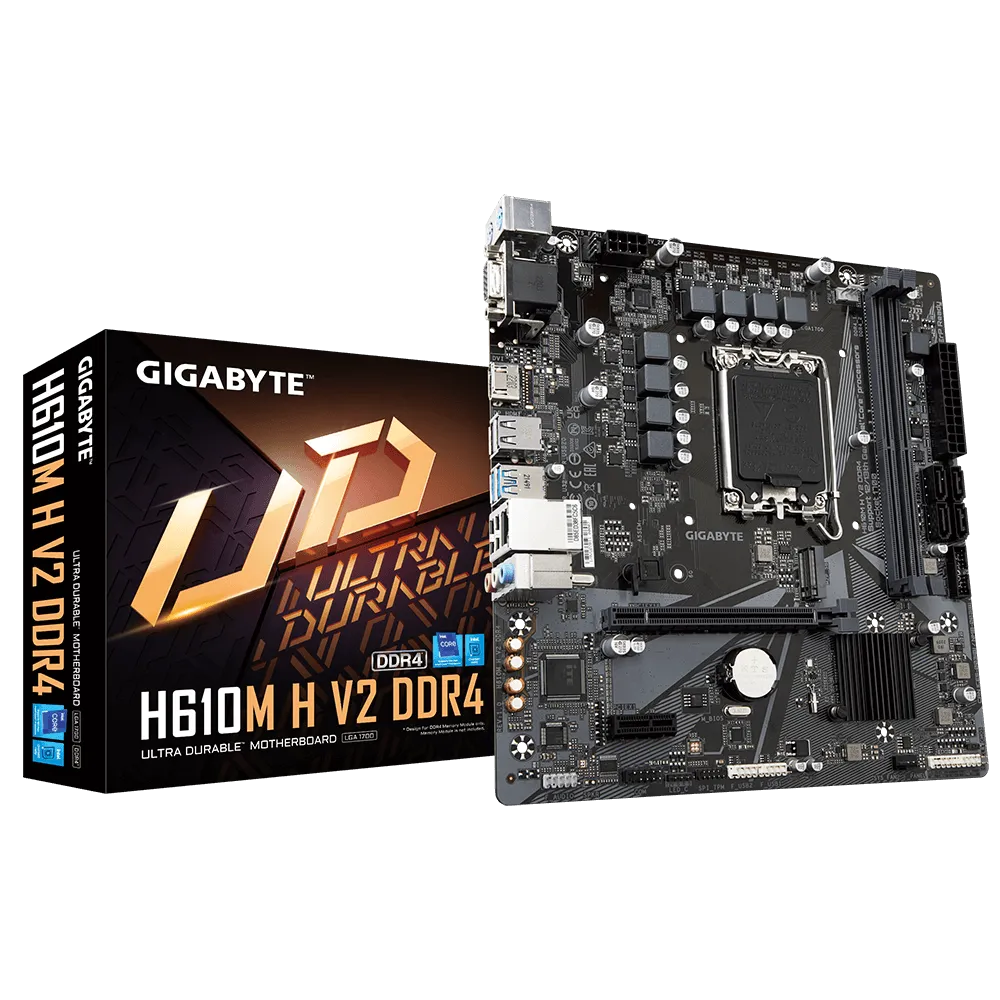

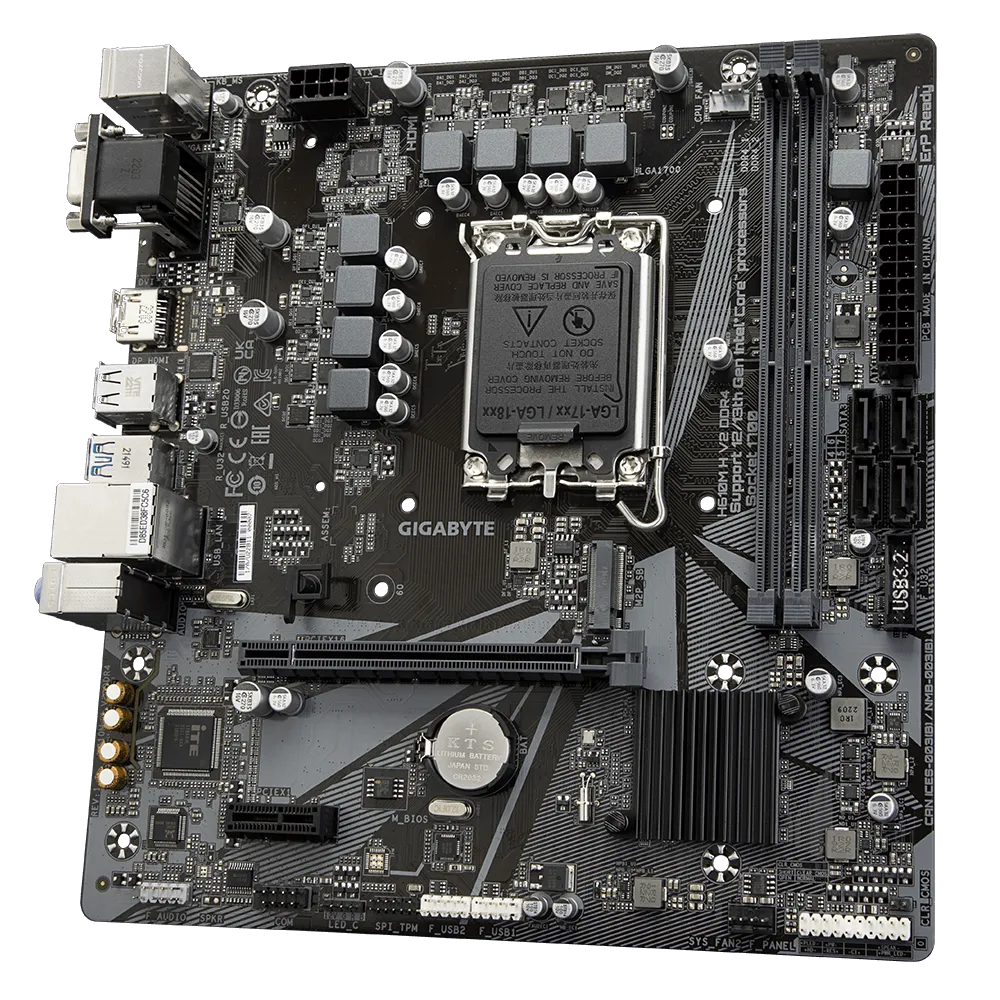

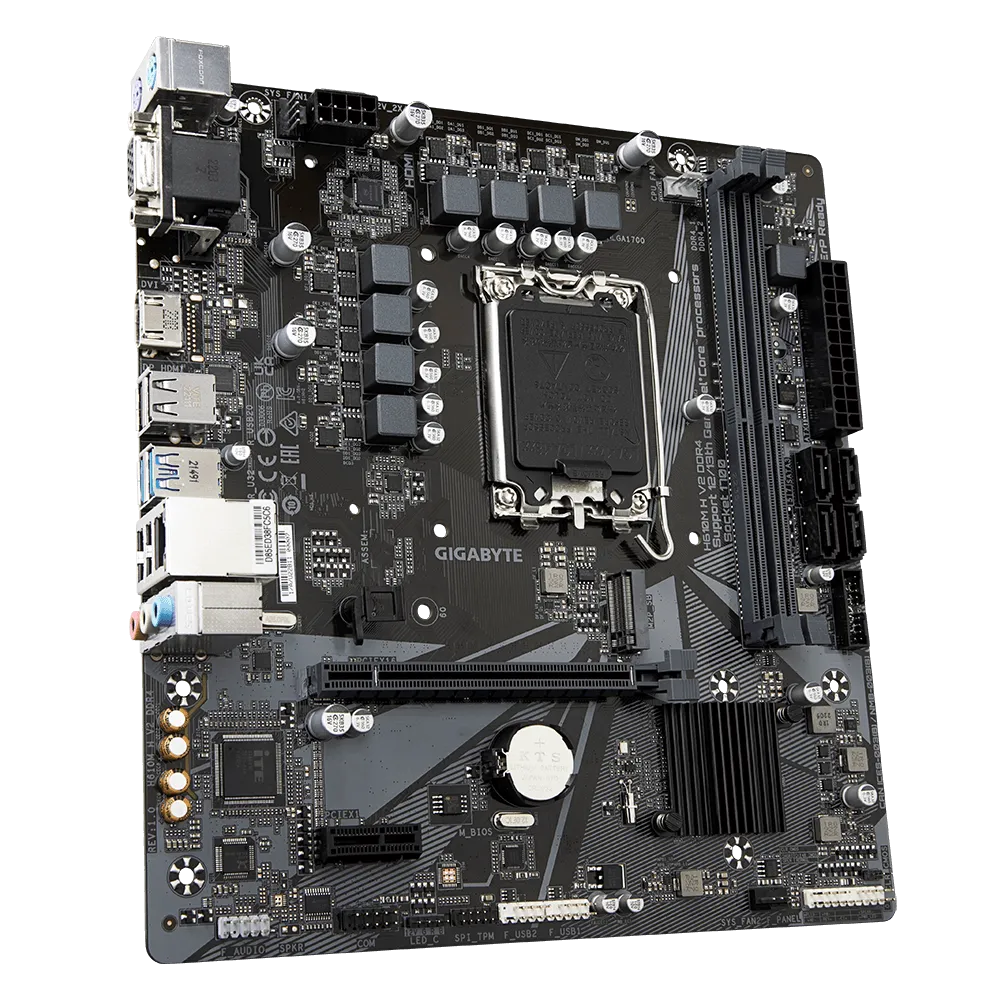

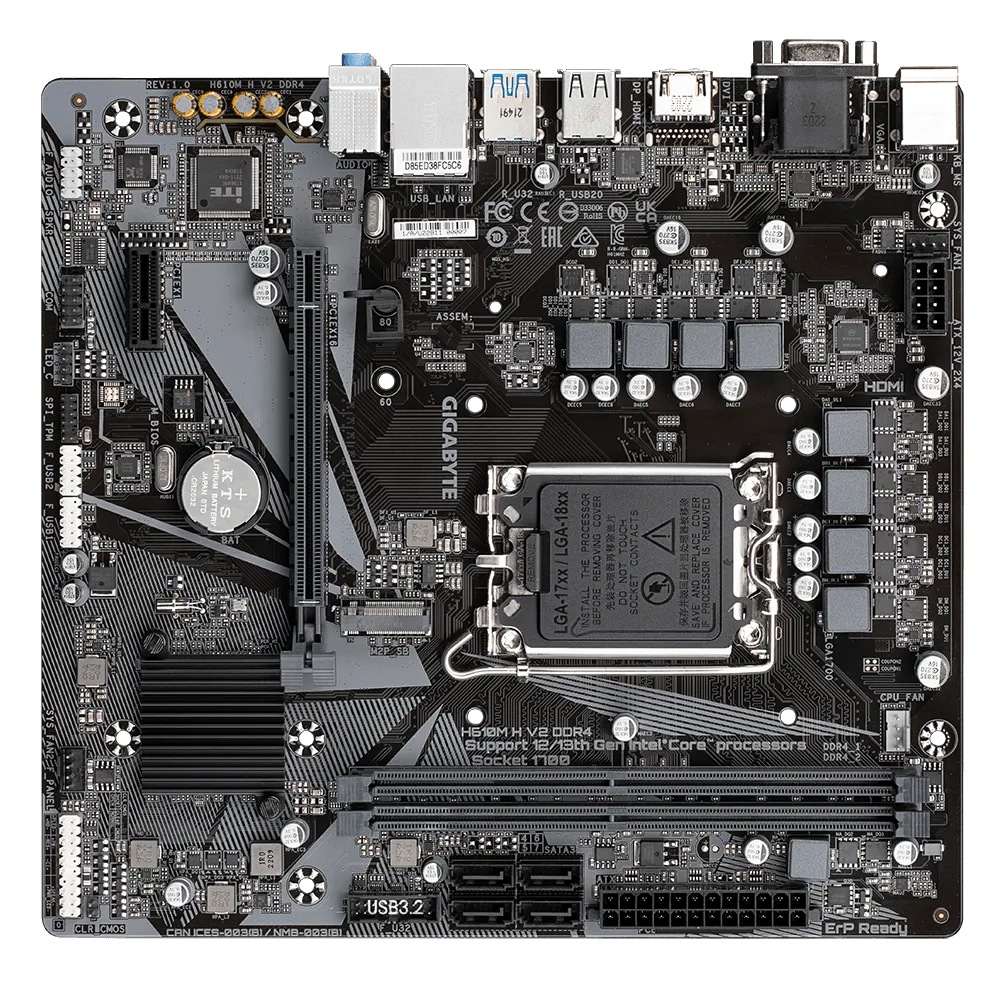

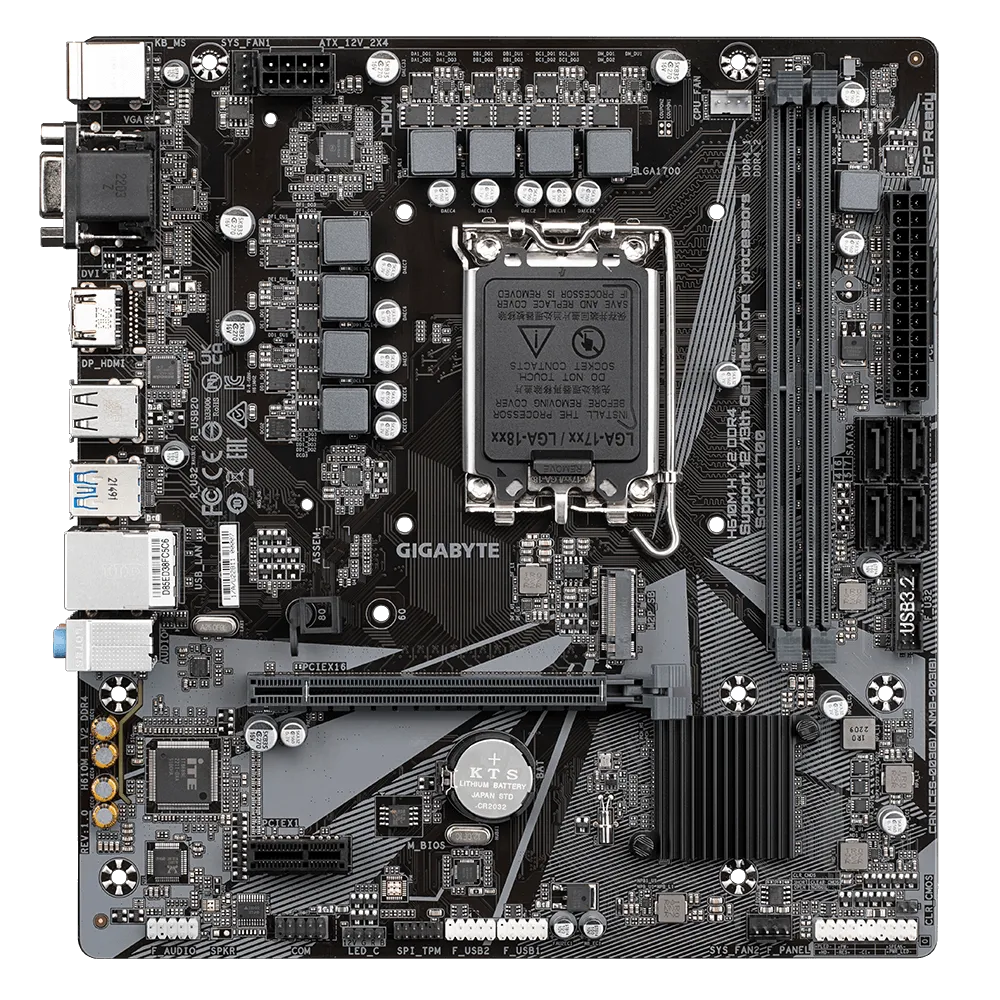

| Model | H610M H V2 DDR4 |
| CPU | LGA1700 socket: Support for 13th Generation IntelÆ Coreô Processors and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| L3 cache varies with CPU |
| Chipset | IntelÆ H610 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-IntelÆ HD Graphics support: |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Support for HDMI 2.1 version and HDCP 2.3. |
| Support native HDMI 2.1 TMDS compatible ports |
| Audio | RealtekÆ Audio CODEC |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| LAN | RealtekÆ GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| Chipset: |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) |
| 4 x SATA 6Gb/s connectors |
| USB | Chipset: |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 4 x USB 2.0/1.1 ports on the back panel |
| Chipset+USB 2.0 Hub: |
| 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x CPU fan header |
| 2 x system fan headers |
| 1 x M.2 Socket 3 connector |
| 4 x SATA 6Gb/s connectors |
| 1 x RGB LED strip header |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x USB 3.2 Gen 1 header |
| 2 x USB 2.0/1.1 headers |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 1 x serial port header |
| 1 x Clear CMOS jumper |

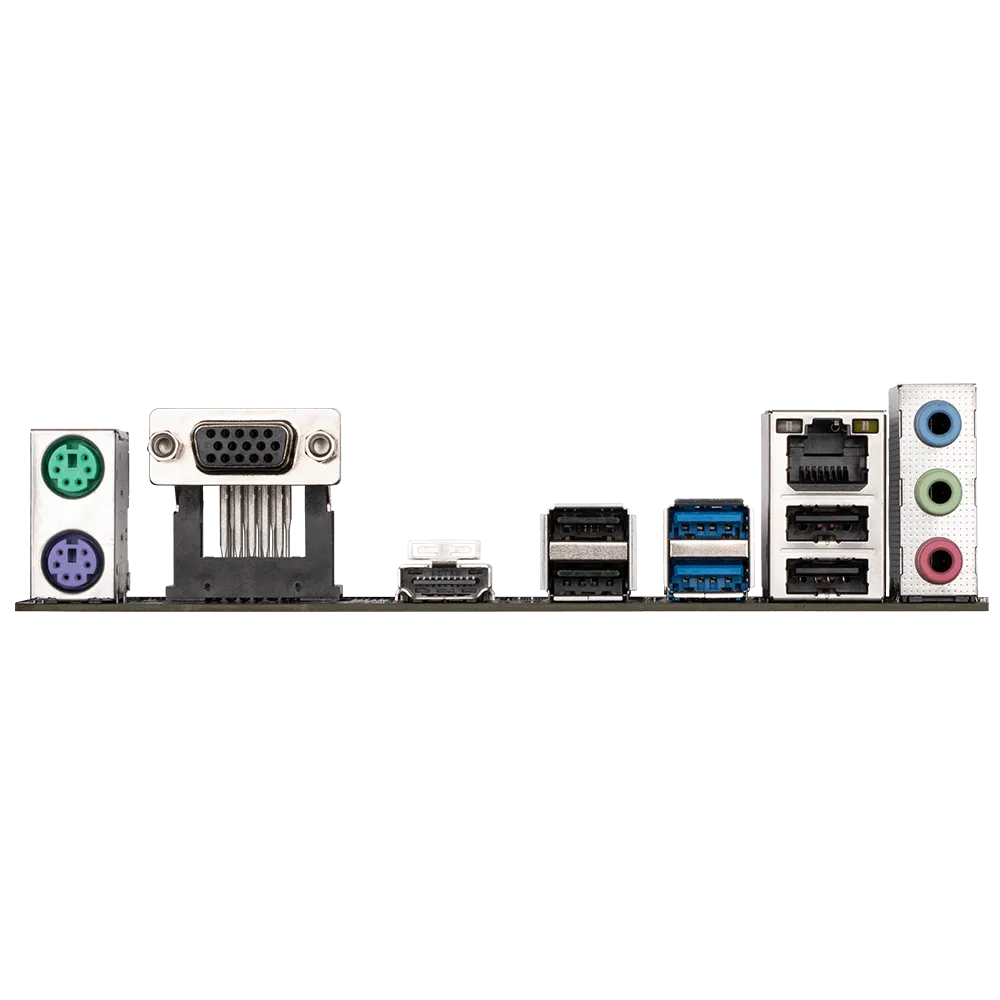

| Back Panel Connectors | 1 x PS/2 keyboard port |
| 1 x PS/2 mouse port |
| 1 x D-Sub port |
| 1 x HDMI port |
| 2 x USB 3.2 Gen 1 ports |
| 4 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 3 x audio jacks |
| I/O Controller | iTEÆ I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection |
| Fan speed detection |
| Water cooling flow rate detection |
| Fan fail warning |
| Fan speed control |
| BIOS | 1 x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center |
| Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| Ambient LED |
| EasyTune |
| Smart Backup |
| System Information Viewer |
| Support for Q-Flash |
| Support for Xpress Install |
| Bundled Software | NortonÆ Internet Security (OEM version) |
| LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Warranty | 3 Years |
