| 1. 11th Generation IntelÆCoreô i9 processors/IntelÆCoreô i7 processors/IntelÆCoreô i5 processors |
| 2. 10th Generation IntelÆCoreô i9 processors/IntelÆCoreô i7 processors/IntelÆCoreô i5 processors/IntelÆCoreô i3 processors/IntelÆPentiumÆprocessors/IntelÆCeleronÆprocessors |
| L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) |
| 1. IntelÆH470 Express Chipset |
| 1. 11th Generation IntelÆCoreô i9/i7/i5 processors: |
| Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| 2. 10th Generation IntelÆCoreô i9/i7 processors: |
| Support for DDR4 2933/2666/2400/2133 MT/s memory modules |
| 3. 10th Generation IntelÆCoreô i5/i3/PentiumÆ/CeleronÆprocessors: |
| Support for DDR4 2666/2400/2133 MT/s memory modules |
| 4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| 5. Dual channel memory architecture |
| 6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| 7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| 8. Support for Extreme Memory Profile (XMP) memory modules |
| (Please refer "Memory Support List" for more information.) |
| Integrated Graphics Processor-IntelÆHD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| * The D-Sub port is only available with the 10th Generation processors. |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| * Support for HDMI 1.4 version and HDCP 2.3. |
| (Graphics specifications may vary depending on CPU support.) |
| 1. RealtekÆAudio CODEC |
| 2. High Definition Audio |
| 3. 2/4/5.1/7.1-channel |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| 1. RealtekÆGbE LAN chip (1 Gbps/100 Mbps) |
| |
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 |
| Chipset: |
| 1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| 2. 4 x SATA 6Gb/s connectors |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| IntelÆOptaneô Memory Ready |
| |
| 1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector |
| 3. 1 x CPU fan header |
| 4. 1 x system fan header |
| 5. 1 x RGB LED strip header |
| 6. 1 x M.2 Socket 3 connector |
| 7. 4 x SATA 6Gb/s connectors |
| 8. 1 x front panel header |
| 9. 1 x front panel audio header |
| 10. 1 x USB 3.2 Gen 1 header |
| 11. 1 x USB 2.0/1.1 header |
| 12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 13. 1 x serial port header |
| 14. 1 x Clear CMOS jumper |

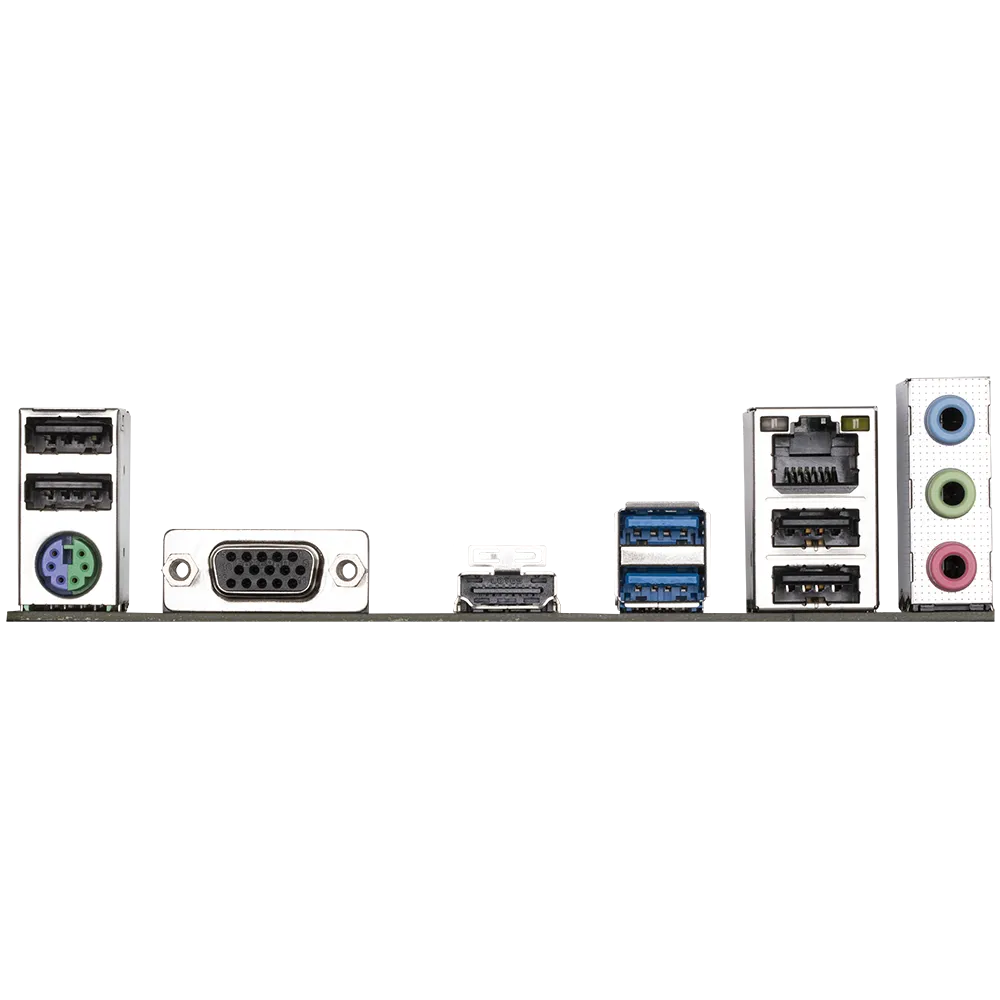

| 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port |
| 3. 1 x HDMI port |
| 4. 2 x USB 3.2 Gen 1 ports |
| 5. 4 x USB 2.0/1.1 ports |
| 6. 1 x RJ-45 port |
| 7. 3 x audio jacks |
| 1. iTEÆI/O Controller Chip |
| 1. Voltage detection |
| 2. Temperature detection |
| 3. Fan speed detection |
| 4. Fan fail warning |
| 5. Fan speed control |
| * Whether the fan speed control function is supported will depend on the cooler you install. |
| 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| @BIOS |
| Ambient LED |
| EasyTune |
| Smart Backup |
| System Information Viewer |
| 2. Support for Q-Flash |
| 3. Support for Xpress Install |
| 1. NortonÆInternet Security (OEM version) |
| 2. LAN bandwidth management software |
| 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit |
| 1. Micro ATX Form Factor; 22.6cm x 18.5cm |
