CPU | 1. Support for 9th and 8th Generation IntelÆ Coreô i9 processors/IntelÆ Coreô i7 processors/IntelÆ Coreô i5 processors/IntelÆ Coreô i3 processors/IntelÆ PentiumÆ processors/IntelÆ CeleronÆ processors in the LGA1151 package |
| 2. L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
Chipset | 1. IntelÆ H310 Express Chipset |
Memory | 1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| 2. Dual channel memory architecture | |
| 3. Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| * To support 2666 MHz or XMP memory, you must install an 8th Generation IntelÆ Coreô i7/i5 processor. | |
| (Please refer "Memory Support List" for more information.) | |
Onboard Graphics | Integrated Graphics Processor-IntelÆ HD Graphics support: |
| 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz | |
| * Support for HDMI 1.4 version and HDCP 2.2. | |
| Maximum shared memory of 1 GB | |
Audio | 1. RealtekÆ ALC887 codec |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
LAN | 1. RealtekÆ GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) | |
| 2. 2 x PCI Express x1 slots | |
| (The PCI Express x1 slots conform to PCI Express 2.0 standard.) | |
Storage Interface | |
Chipset: | 1. 4 x SATA 6Gb/s connectors |
USB | |
Chipset: | 1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| 2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 4-pin ATX 12V power connector | |
| 3. 4 x SATA 6Gb/s connectors | |
| 4. 1 x CPU fan header | |
| 5. 1 x system fan header | |
| 6. 1 x front panel header | |
| 7. 1 x front panel audio header | |
| 8. 1 x USB 3.1 Gen 1 header | |
| 9. 1 x USB 2.0/1.1 headers | |
| 10. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 11. 1 x Clear CMOS jumper | |

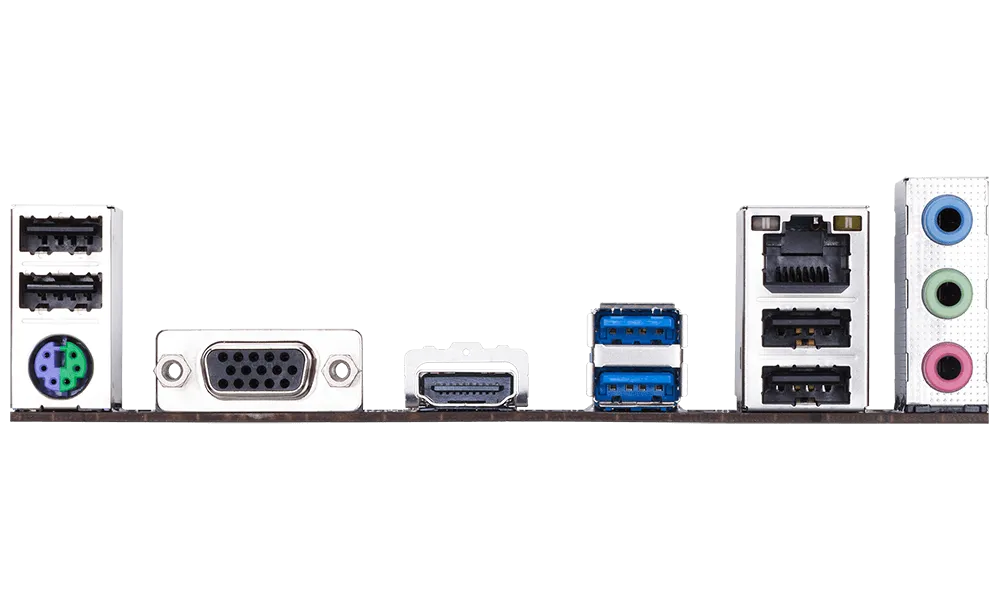

Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x D-Sub port | |
| 3. 1 x HDMI port | |
| 4. 2 x USB 3.1 Gen 1 ports | |
| 5. 4 x USB 2.0/1.1 ports | |
| 6. 1 x RJ-45 port | |
| 7. 3 x audio jacks | |
I/O Controller | 1. iTEÆ I/O Controller Chip |
H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 3D OSD | |
| @BIOS | |
| AutoGreen | |
| Cloud Station | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| Platform Power Management | |
| Smart Backup | |
| Smart Keyboard | |
| Smart TimeLock | |
| Smart HUD | |
| System Information Viewer | |
| USB Blocker | |
| V-Tuner | |
| 2. Support for Q-Flash | |
| 3. Support for Xpress Install | |
Bundled Software | 1. NortonÆ Internet Security (OEM version) |
| 2. RealtekÆ 8118 Gaming LAN Bandwidth Control Utility | |
Operating System | 1. Support for Windows 10 64-bit |
Form Factor | 1. Micro ATX Form Factor; 22.6cm x 17.4cm |
| Featured | Yes |
|---|---|
| brand | Gigabyte |
