| Brand | Gigabyte |

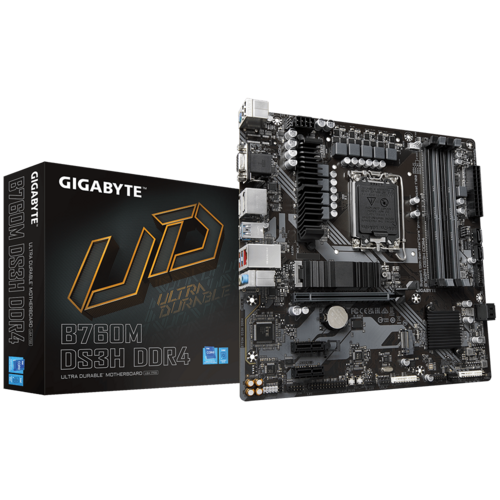

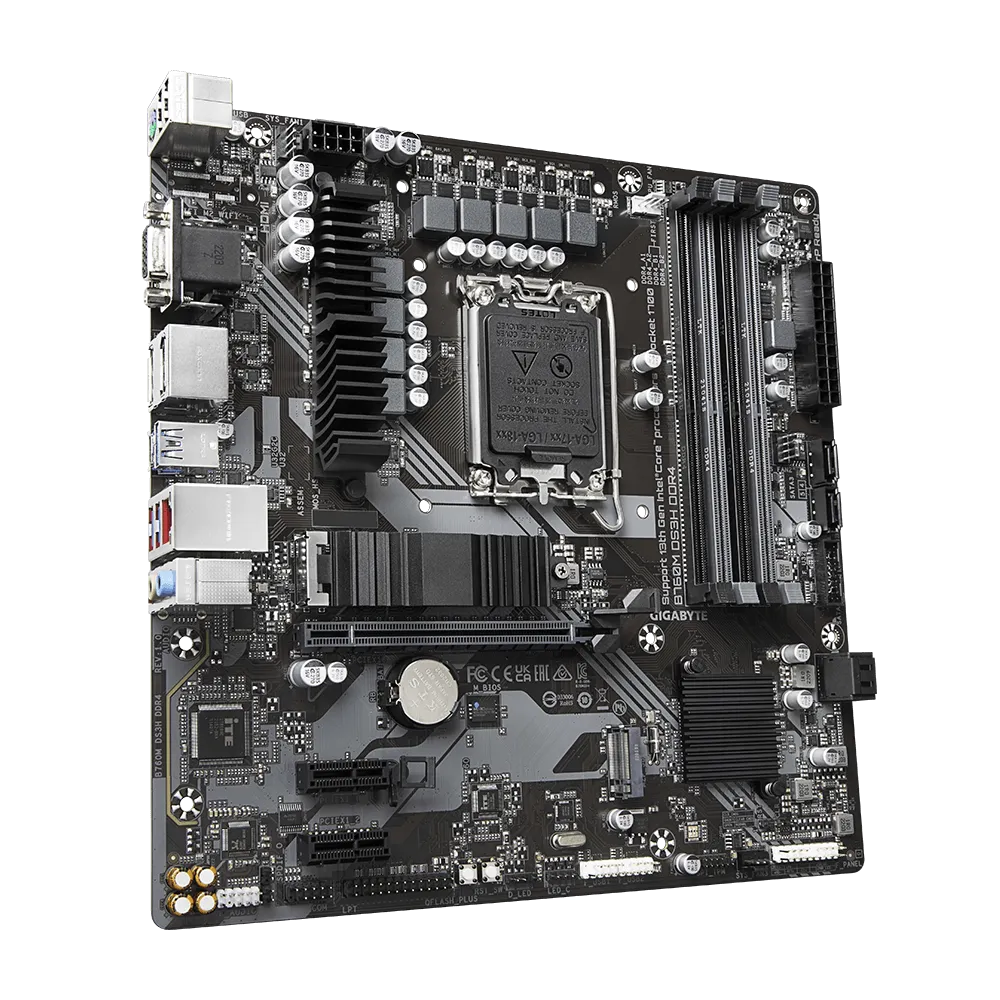

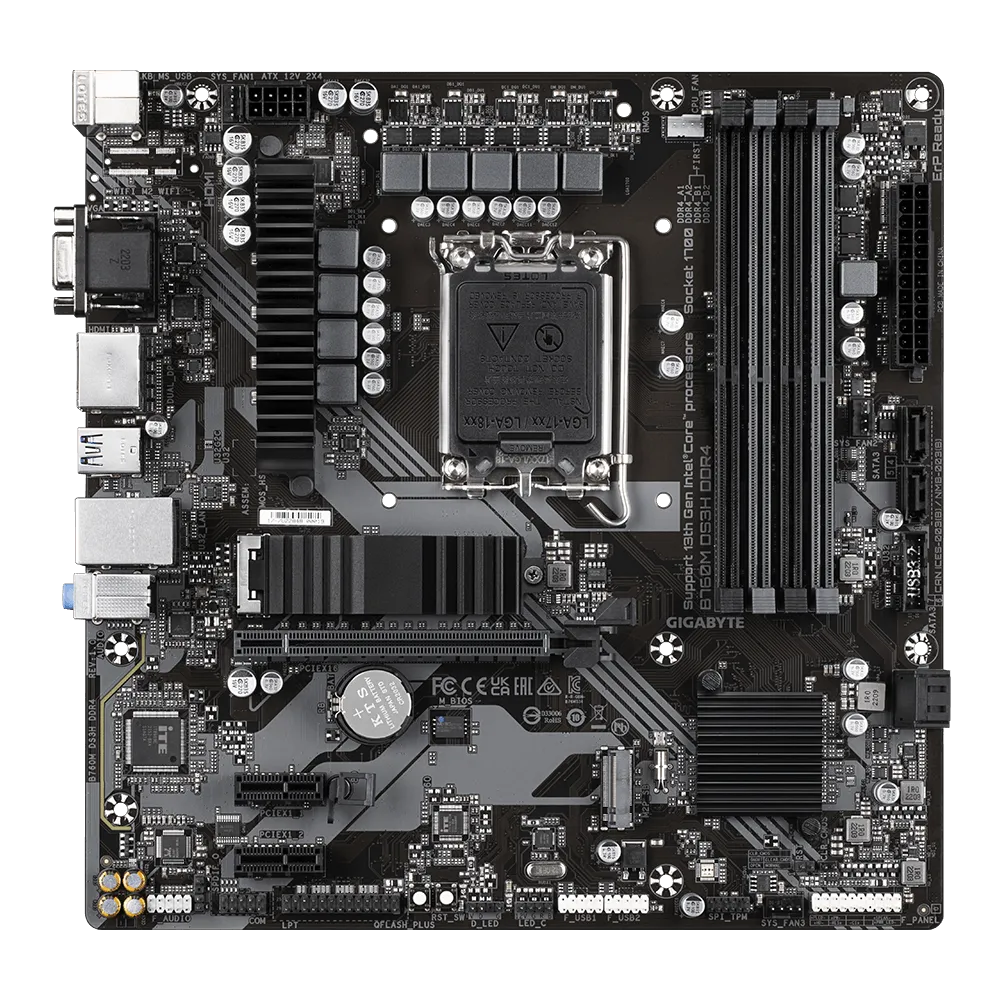

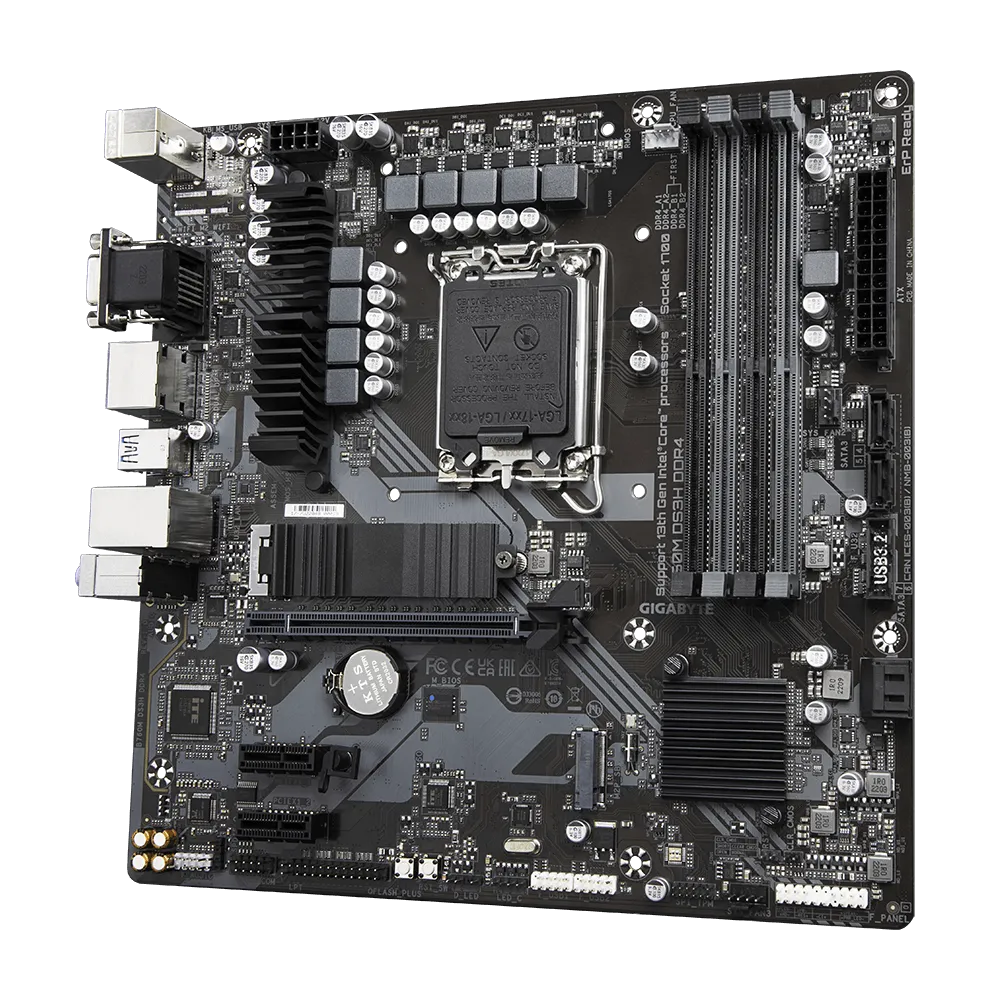

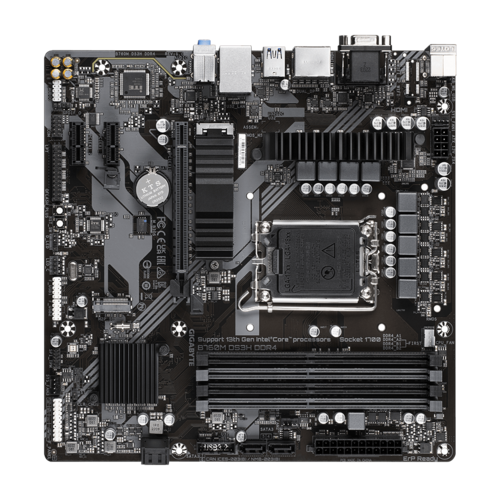

| Model | B760 DS3H DDR4 |
| CPU | 1. LGA1700 socket: Support for the 13th and 12th Generation IntelÆCoreô, PentiumÆGold and CeleronÆProcessors |
| 2. L3 cache varies with CPU | |
| (Please refer "CPU Support List" for more information.) | |
| Chipset | IntelÆ B760 Express Chipset |
| Memory | 1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
| 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 3. Dual channel memory architecture | |
| 4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 6. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-IntelÆHD Graphics support: |
| 1. 1 x HDMI port, supporting a maximum resolution of4096x2160@60Hz | |
| * Support for HDMI 2.0 version and HDCP 2.3. | |
| 2. 1 x DisplayPort, supporting a maximum resolution of4096x2304@60Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3 | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | 1. RealtekÆAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| 4. Support for S/PDIF Out | |
| LAN | RealtekÆ GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| 1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 | |
| (PCIEX1_1, PCIEX1_3~PCIEX1_5) | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 2. 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 1. 1 x USB Type-CÆport on the back panel, with USB 3.2 Gen 2x2 support | |
| 2. 1 x USB Type-CÆport with USB 3.2 Gen 1 support, available through the internal USB header | |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel | |
| 4. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 5. 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset+2 USB 2.0 Hubs: | |
| 1. 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 1 x CPU fan/water cooling pump header | |
| 5. 3 x system fan headers | |
| 6. 1 x system fan/water cooling pump header | |
| 7. 2 x addressable LED strip headers | |
| 8. 2 x RGB LED strip headers | |
| 9. 2 x M.2 Socket 3 connectors | |
| 10. 4 x SATA 6Gb/s connectors | |
| 11. 1 x front panel header | |
| 12. 1 x front panel audio header | |
| 13. 1 x S/PDIF Out header | |
| 14. 1 x USB Type-CÆheader, with USB 3.2 Gen 1 support | |
| 15. 1 x USB 3.2 Gen 1 header | |
| 16. 2 x USB 2.0/1.1 headers | |
| 17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 18. 1 x serial port header | |
| 19. 1 x Q-Flash Plus button | |
| 20. 1 x reset button | |
| 21. 1 x reset jumper | |
| 22. 1 x Clear CMOS jumper | |

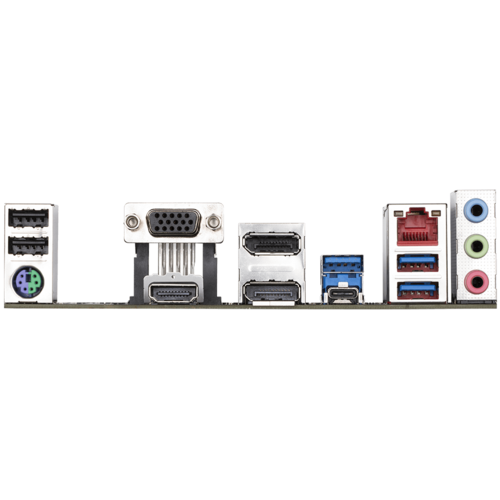

| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x USB Type-CÆport, with USB 3.2 Gen 2x2 support | |
| 3. 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4. 4 x USB 2.0/1.1 ports | |
| 5. 1 x HDMI port | |
| 6. 1 x DisplayPort | |
| 7. 1 x RJ-45 port | |
| 8. 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| 2. Support for Q-Flash | |
| 3. Support for Q-Flash Plus | |
| Bundled Software | 1. NortonÆInternet Security (OEM version) |
| 2. LAN bandwidth management software | |
| Operating System | 1. Support for Windows 11 64-bit |
| 2. Support for Windows 10 64-bit | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | Gigabyte |
