| CPU | LGA1700 socket: Support for the 13th and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| L3 cache varies with CPU | |
| Chipset | IntelÆ B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| Audio | |
| RealtekÆ Audio CODEC | |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| Support for S/PDIF Out | |
| LAN | RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| LUETOOTH 5.2 | |
| Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate | |
| IntelÆ Wi-Fi 6E AX210 (For PCB rev. 1.1) | |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| IntelÆ Wi-Fi 6E AX211 (For PCB rev. 1.2) | |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| RealtekÆ Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) | |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.3 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| Chipset: | |
| 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2 support | |
| 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset+2 USB 2.0 Hubs: | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | |
| 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 3 x system fan headers | |
| 1 x addressable LED strip header | |
| 1 x RGB LED strip header | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x S/PDIF Out header | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

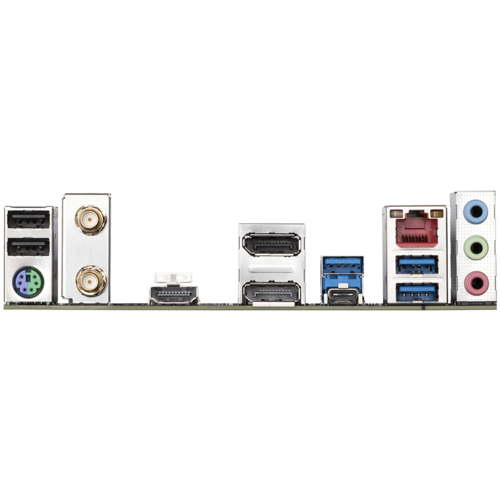

| Back Panel Connectors | |
| 2 x USB 2.0/1.1 ports | |
| 1 x PS/2 keyboard/mouse port | |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x HDMI port | |
| 2 x DisplayPorts | |
| 3 x USB 3.2 Gen 1 ports | |
| 1 x USB Type-CÆ port, with USB 3.2 Gen 2 support | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTEÆ I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | |
| 1 x 128 Mbit flash | |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | |
| Support for GIGABYTE Control Center (GCC) | |
| Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Bundled Software | |
| NortonÆ Internet Security (OEM version) | |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | Gigabyte |
