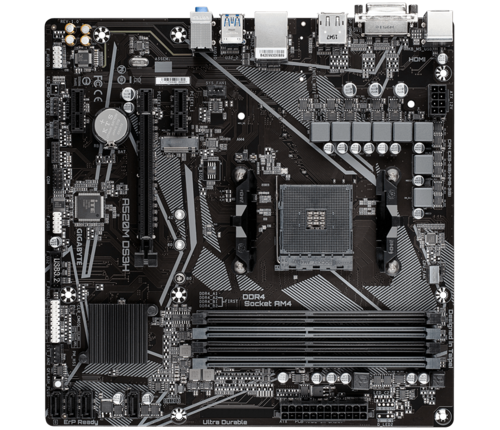

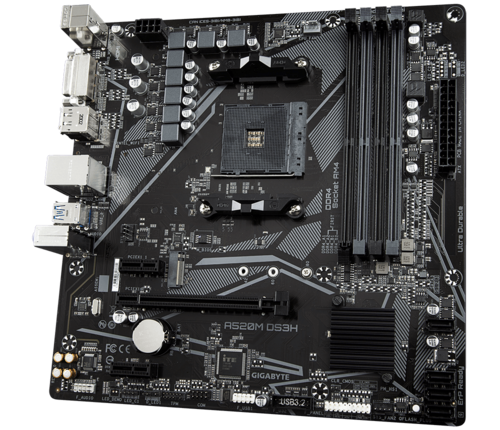

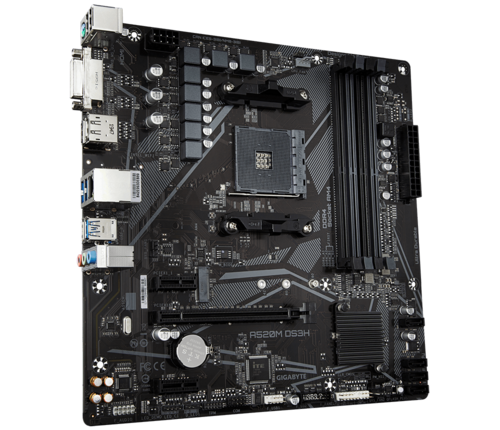

| CPU | 1. AMD Socket AM4, support for: AMD Ryzenô 5000 Series/ Ryzenô 5000 G-Series/ Ryzenô 4000 G-Series and Ryzenô 3000 Series Processors |
| Chipset | 1. AMD A520 |
| Memory | 1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| 2. AMD Ryzenô 5000 G-series / Ryzenô 5000 Series/ 3rd Generation AMD Ryzenô processors: | |
| Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 3. 3rd Gen AMD Ryzenô with Radeonô Graphics processors: | |
| Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules | |
| 4. Dual channel memory architecture | |
| 5. Support for ECC Un-bufferedDIMM 1Rx8/2Rx8 memory modules | |
| 6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 7. Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | 1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| * The DVI-D port does not support D-Sub connection by adapter. | |
| 2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz | |
| * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. | |
| 3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version, HDCP 2.3, and HDR. | |
| Support for up to 3 displays at the same time | |
| Maximum shared memory of 16 GB | |
| Audio | 1. RealtekÆAudio CODEC |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. | |
| LAN | 1. RealtekÆGbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | CPU: |
| 1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 | |
| Chipset: | |
| 1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) | |
| Chipset: | |
| 1. 4 x SATA 6Gb/s connectors | |
| 2. Support for RAID 0, RAID 1, and RAID 10 | |
| USB | CPU: |
| 1. 4 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset: | |
| 1. 2 x USB 3.2 Gen 1 ports available through the internal USB header | |
| 2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x CPU fan header | |
| 4. 2 x system fan headers | |
| 5. 1 x addressable LED strip header | |
| 6. 1 x RGB LED strip header | |
| 7. 1 x M.2 Socket 3 connector | |
| 8. 4 x SATA 6Gb/s connectors | |
| 9. 1 x front panel header | |
| 10. 1 x front panel audio header | |
| 11. 1 x USB 3.2 Gen 1 header | |
| 12. 1 x USB 2.0/1.1 header | |
| 13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| 14. 1 x serial port header | |
| 15. 1 x Clear CMOS jumper | |
| 16. 1 x Q-Flash Plus button | |

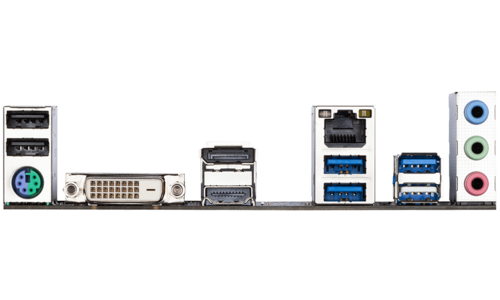

| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| 2. 1 x DVI-D port | |
| 3. 1 x DisplayPort | |
| 4. 1 x HDMI port | |
| 5. 4 x USB 3.2 Gen 1 ports | |
| 6. 2 x USB 2.0/1.1 ports | |
| 7. 1 x RJ-45 port | |
| 8. 3 x audio jacks | |
| I/O Controller | 1. iTEÆI/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Overheating warning | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| BIOS | 1. 1 x 128 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. NortonÆInternet Security (OEM version) |
| 2. RealtekÆ8118 Gaming LAN Bandwidth Control Utility | |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
| Featured | Yes |
|---|---|
| brand | Gigabyte |
