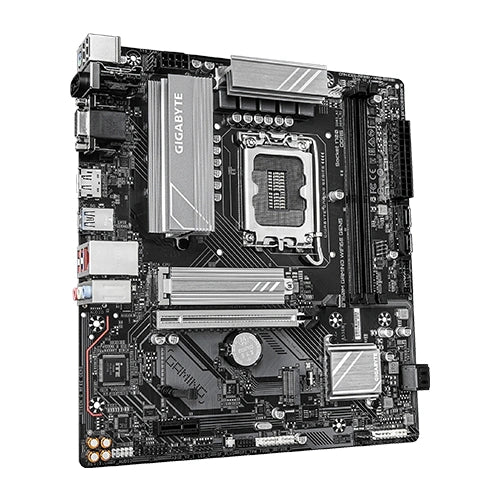

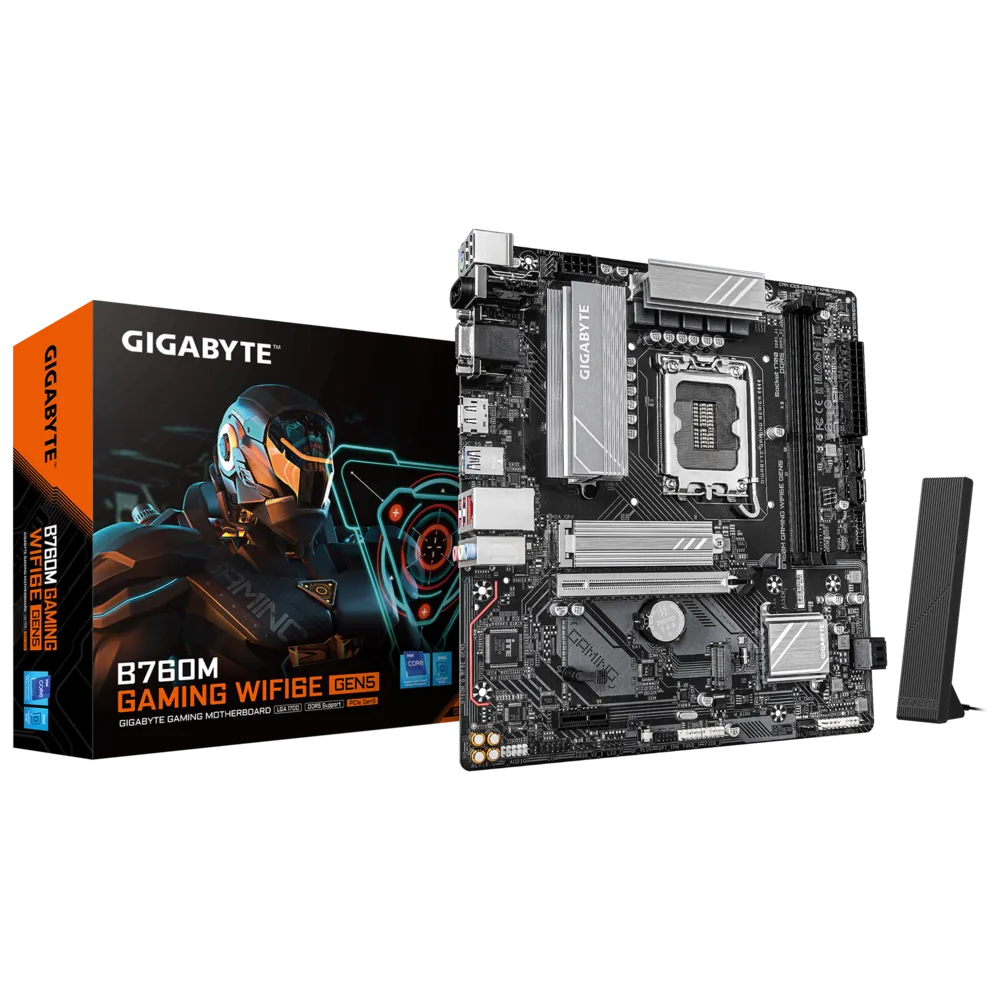

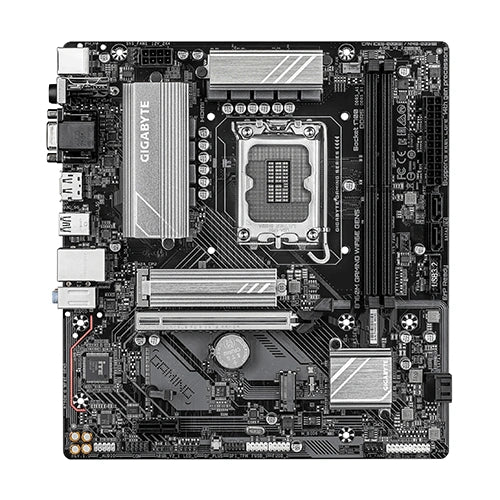

GIGABYTE B760M GAMING WIFI6E GEN5

Be the first to review this product

Special Price ₹11,466.00 Regular Price ₹18,999.00

Details

Specifications


Category	Details
CPU	LGA1700 socket: Supports Intel 14th / 13th / 12th Gen Core„, Pentium Gold, and Celeron processorsL3 cache varies by CPU
Chipset	Intel B760 Express Chipset
Memory	- Supports DDR5 up to 8000(O.C.) MT/s- 2 Ãƒ— DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM)- Dual-channel architecture- Supports ECC/Non-ECC un-buffered DIMMs (ECC in non-ECC mode)- Supports XMP memory modules
Onboard Graphics	Integrated Intel HD Graphics (depends on CPU)- 1 Ãƒ— D-Sub (1920Ãƒ—1200@60Hz)- 1 Ãƒ— HDMI 2.1 (4096Ãƒ—2160@60Hz, HDCP 2.3)- 1 Ãƒ— DisplayPort 1.2 (4096Ãƒ—2304@60Hz, HDCP 2.3)- Supports up to triple-display
Audio	Realtek Audio CODECHigh Definition Audio, 2/4/5.1/7.1-channelS/PDIF Out support
LAN	Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless	Intel Wi-Fi 6E AX210- Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz- Bluetooth 5.3- 11ax 160 MHz
Expansion Slots	- 1 Ãƒ— PCIe 5.0 x16 (CPU, graphics card/NVMe SSD only)- 1 Ãƒ— PCIe 3.0 x1 (Chipset)
Storage	CPU: 1 Ãƒ— M.2 (PCIe 4.0 x4/x2, 2280)Chipset: 1 Ãƒ— M.2 (PCIe 4.0 x4/x2, 2280)Chipset: 4 Ãƒ— SATA 6Gb/sSupports RAID 0/1/5/10 (SATA)
USB Ports	Back Panel:- 1 Ãƒ— USB Type-C (USB 3.2 Gen 1)- 3 Ãƒ— USB 3.2 Gen 1- 2 Ãƒ— USB 2.0Internal:- 1 Ãƒ— USB 3.2 Gen 1 header (2 ports)- 2 Ãƒ— USB 2.0 headers (4 ports)Total: 10 USB ports
Internal I/O	- 24-pin ATX main power- 8-pin ATX 12V power- 1 Ãƒ— CPU fan header- 3 Ãƒ— System fan headers- 2 Ãƒ— ARGB Gen2 headers- 1 Ãƒ— RGB LED header- 2 Ãƒ— M.2 slots- 4 Ãƒ— SATA ports- Front panel, front audio, SPDIF Out- USB 3.2 Gen1 & USB 2.0 headers- TPM header- Serial port header- Q-Flash Plus button- Reset jumper- Clear CMOS jumper

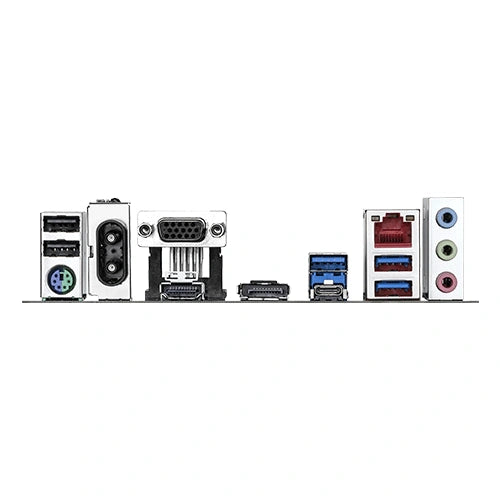

Back Panel I/O	- 2 Ãƒ— USB 2.0- 1 Ãƒ— PS/2 keyboard/mouse- 2 Ãƒ— Wi-Fi antenna connectors- 1 Ãƒ— D-Sub- 1 Ãƒ— HDMI- 1 Ãƒ— DisplayPort- 3 Ãƒ— USB 3.2 Gen 1- 1 Ãƒ— USB Type-C (USB 3.2 Gen 1)- 1 Ãƒ— RJ-45 LAN- 3 Ãƒ— Audio jacks
I/O Controller	iTE Controller Chip
H/W Monitoring	Voltage, Temperature, Fan speed detection, Water cooling flow rate, Fan fail warning, Fan speed control (depends on fan)
BIOS	AMI UEFI BIOS, 128 Mbit flashPnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton Internet Security (OEM)
OS Support	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX, 24.4 cm Ãƒ— 22.5 cm
