Specifications:
Full Protection
Overload, Discharge and Overcharge Protection
Humidity
0-90% RH @ 0-40°C (non-condensing)
Noise Level
Less than 40 dB
Voltage
230 V AC
Voltage Range
140 - 300 V AC
Frequency Range
50 Hz (Auto sensing)
Battery Type
1 x 12V/7 Ah
Back up Time
35 mins
Typical Recharge Time
4 hours recover to 90% capacity
Battery Mode
Every 10 seconds Sound Beep
Low Battery
Every second Sound Beep
Overload
Every 0.5 second Sound Beep
Fault
Continuous Sound Beep
Power Outlet
3 outlets
Net Weight
3.8 kg
Dimension (D x W x H)
279 x 101 x 142 mm
Capacity (VA/W)
600 VA / 360 W
Output Voltage
230 V AC ± 10%
Frequency Range (Battery Mode)
50 Hz ± 1%
Transfer Time
Typical 4-8 ms, 13 ms max.
Waveform (Battery Mode)
Simulated Sine Wave
AC Mode
Green Lighting
Battery Mode
Green Flashing
Fault
Green off
In the Box

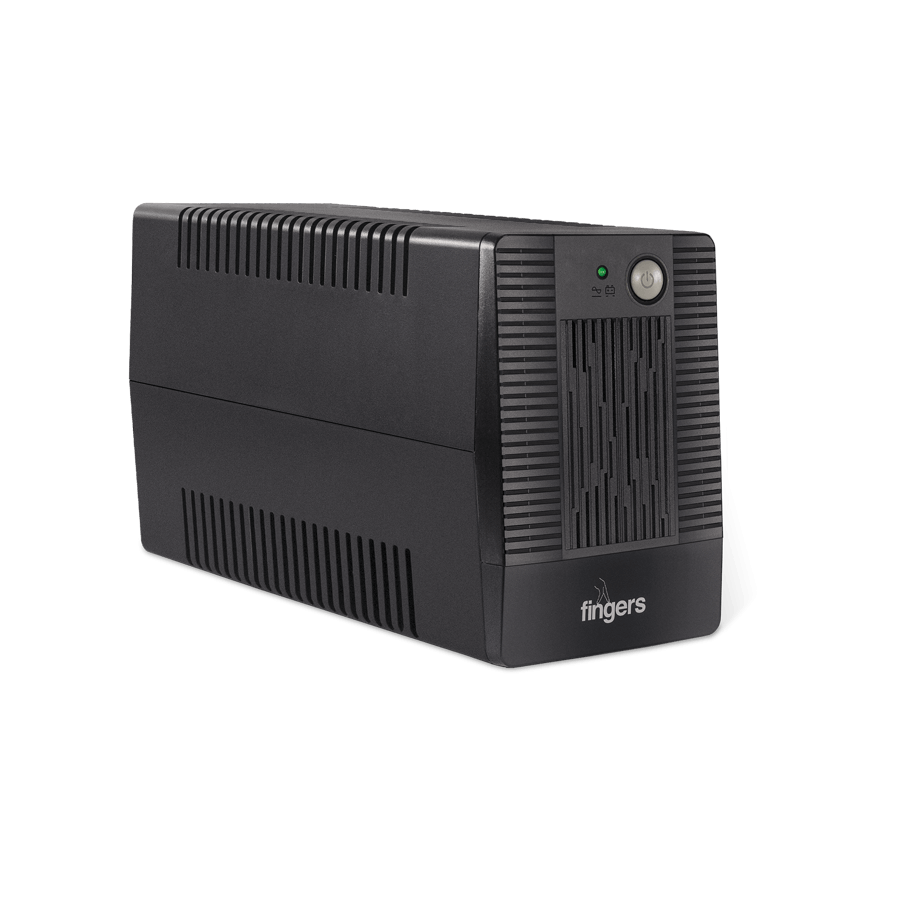

1 x Fast-Recharge UPS FR-6301 x Quick Start Guide1 x Brand Note
