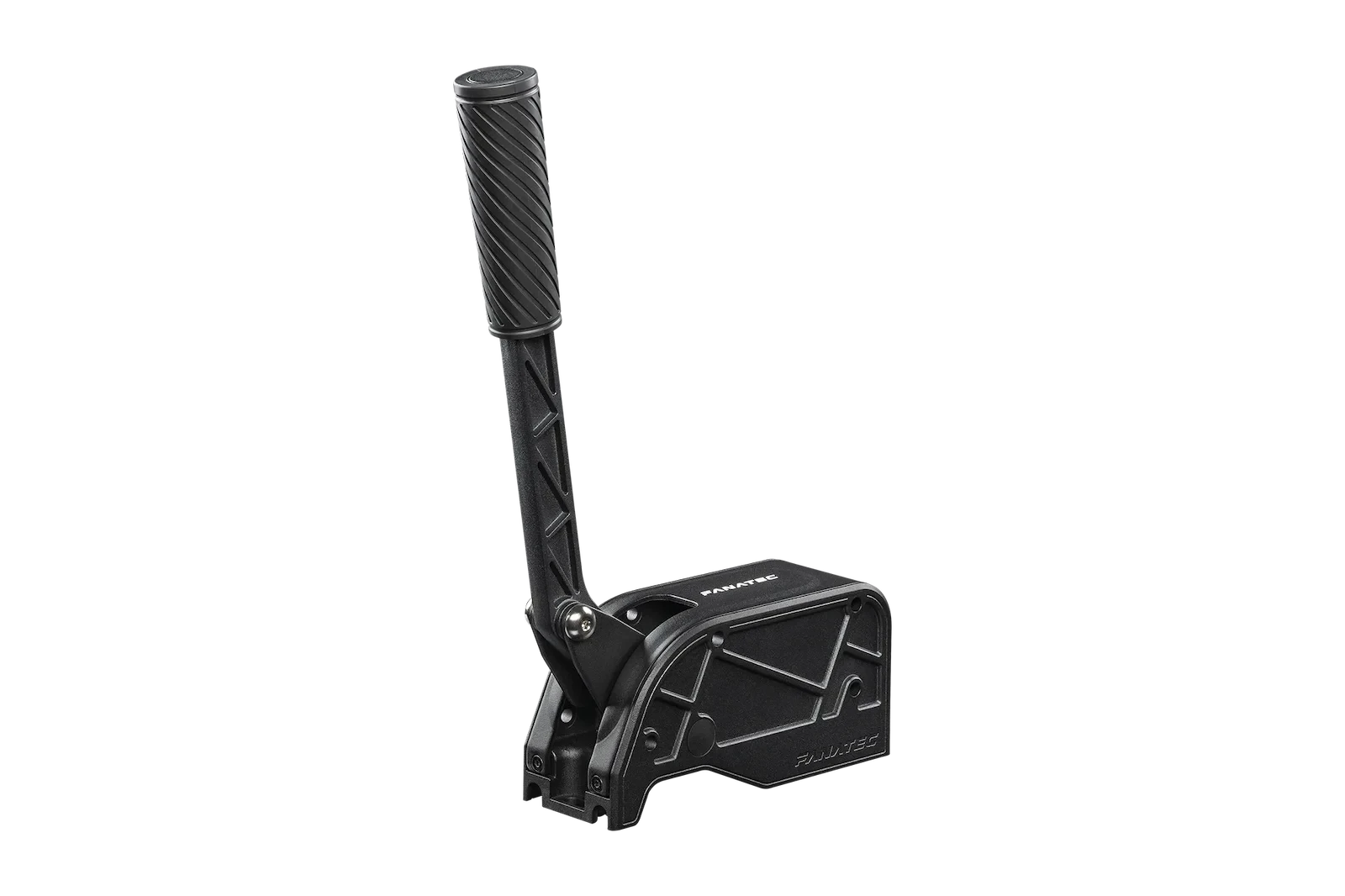

All-new handbrake design ideal for rally and drifting
Robust steel and aluminum construction
Load cell sensor for precision analog input
Ball bearings for smoother feel
Powder-coated black aluminum casing and lever
Removable rubber grip
Highly adjustable for stiffness, angle, and travel
Adjustable preload
Three angle positions
Invertible orientation
Fine angle tuning via rear bolt assembly
Travel adjustment using removable spacer (60, 70, and 80 mm)
Comprehensive mounting options
Mounts to side of ClubSport Shifter with included spacer
Mountable at an angle on aluminum profile
Suitable for mounting in a vertical or horizontal orientation
Table mounting possible (see Special Notes section below)
RJ12 to RJ12 cable connects directly to your Fanatec Wheel Base
Compatible with ClubSport USB Adapter (sold separately) to use as a standalone USB device on Windows PC
Works on PC and consoles, see Compatibility section below
Compatibility
Wheel Bases
This product is compatible with the following Wheel Bases:
CSL Elite Wheel Base*
CSL Elite Wheel Base V1.1*
CSL Elite Wheel Base + - officially licensed for PS4™*
CSL DD
Gran Turismo DD Pro Wheel Base
ClubSport Wheel Base V2*
ClubSport Wheel Base V2.5*
ClubSport DD
ClubSport DD+
PODIUM Wheel Base DD1
PODIUM Wheel Base DD1 PS4™
PODIUM Wheel Base DD2
*The analogue signal is not optimised for belt-driven Wheel Bases at this time (it is functional, but the 'max' output does not calibrate as intended). This will be improved in a future firmware update.Pedals: It is also possible to connect this product to the Handbrake port on the following pedals:
CSL Elite Pedals Load Cell Kit
CSL Elite Pedals V2
ClubSport Pedals V3
ClubSport Pedals V3 inverted
Other:
ClubSport USB Adapter (only needed to use as a standalone USB device on PC)
Platforms
PC: this product is compatible with Windows PC when connected to a supported Fanatec Wheel Base or Pedals (see list below). It is also possible to use as a standalone USB device using the ClubSport USB Adapter (sold separately). Functionality is game-dependent.
Xbox: this product becomes compatible with Xbox One and Xbox Series X|S consoles when connected to a supported Fanatec Wheel Base + Xbox licensed Fanatec Steering Wheel. Functionality is game-dependent.
PlayStation: this product becomes compatible with PlayStation 4 and PlayStation 5 consoles when connected to a supported PlayStation-licensed Fanatec Wheel Base. Functionality is game-dependent.
