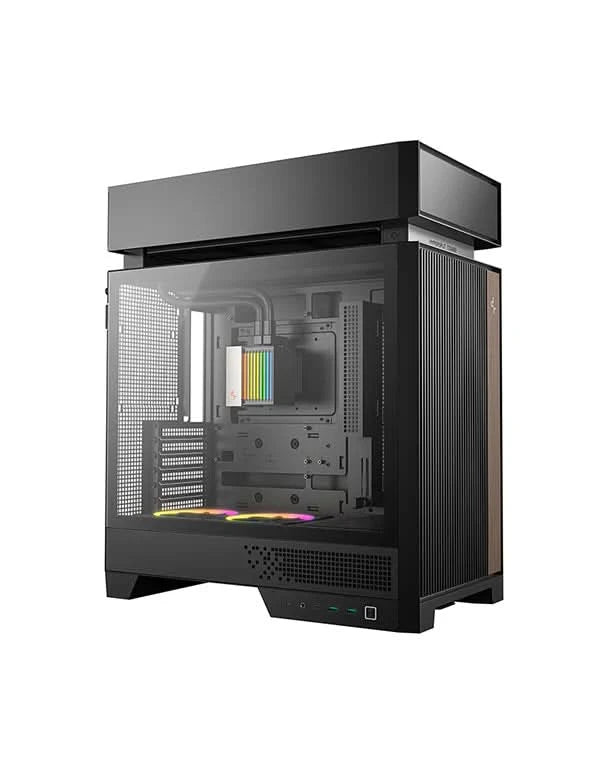

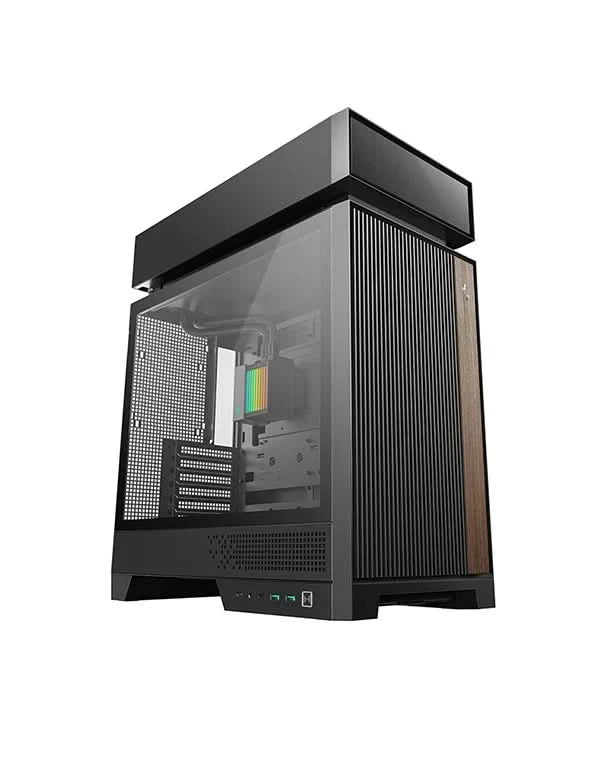

DeepCool CL6600 ATX Cabinet (Black)

Be the first to review this product

₹18,050.00

Details

Technical Spec

Product Dimensions	457.5Ã—235Ã—533.5mm(LÃ—WÃ—H)
Net Weight	11.82Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports	USB3.0Ã—2ã€Gen2 Type-C x1ã€Audio/MicÃ—1
3.5" Drive Bays	2+1
2.5" Drive Bays	1+1
Expansion Slots	7 Slots
Pre-Installed Fans	Bottom: 2Ã—120mm ARGBï¼ˆReverse Bladeï¼‰
Fan Support	Top: 3Ã—120mm/2Ã—140mm Front: 2Ã—140mm Rear: 1Ã—140/1Ã—120mm Bottom: 2Ã—120mm
Radiator Support	Top: Pre-Installed 360mm Front: NA Rear: 120mm
CPU Cooler Height Limit	175mm
GPU Size Limit	413mm/388mm(With Front Fan)
Power Supply Type	ATX PS2ï¼ˆmaximum length: 160mmï¼‰/SFX/SFX-L
Radiator Dimensions	402Ã—120Ã—27 mm
Radiator Material	Aluminum
Tube length	250 mm
Pump Dimensions	118Ã—80Ã—76 mm
Pump Speed	2500~3400 RPM±10%
Pump Connector	4-pin PWM

Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120Ã—120Ã—25 mm
Fan Speed	500~2500 RPM±10% 0 rpm<5 % PWM
Fan Airflow	73.41 CFM
Fan Air Pressure	4.69 mmAq
Fan Noise	‰¤35.63 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.3 A
Fan Power Consumption	3.6 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	1.7 Wï¼ˆPUMPï¼‰
EAN	6933412765295
P/N	R-CL6600-BKNNA0-G-1

SPLIT FOR PERFECT FLOW

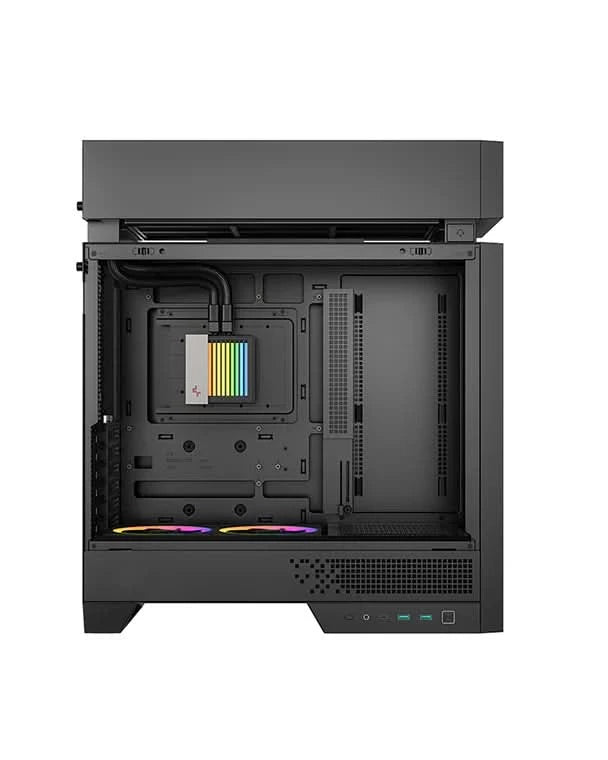

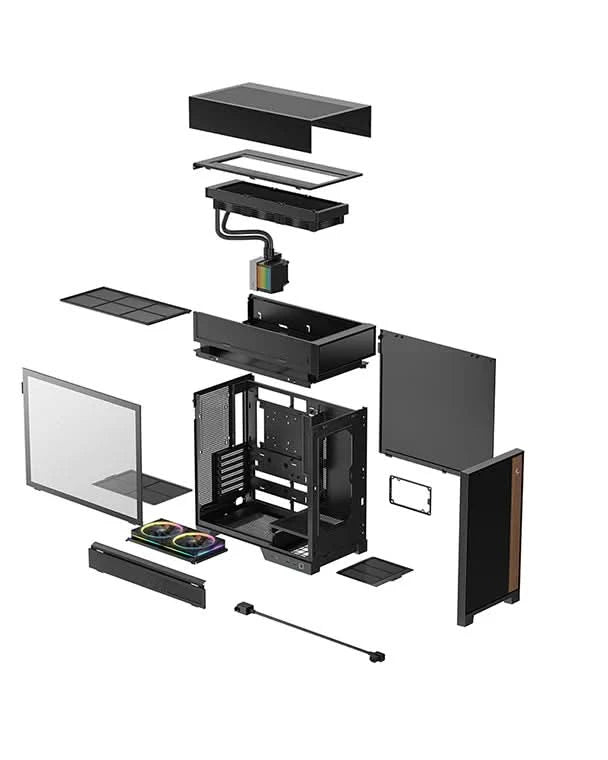

CL6600 keeps things cooler with a modular split-chamber layout. It places the radiator in its own zone, creating separate airflow paths for heat-generating components and letting the whole system run at its best.

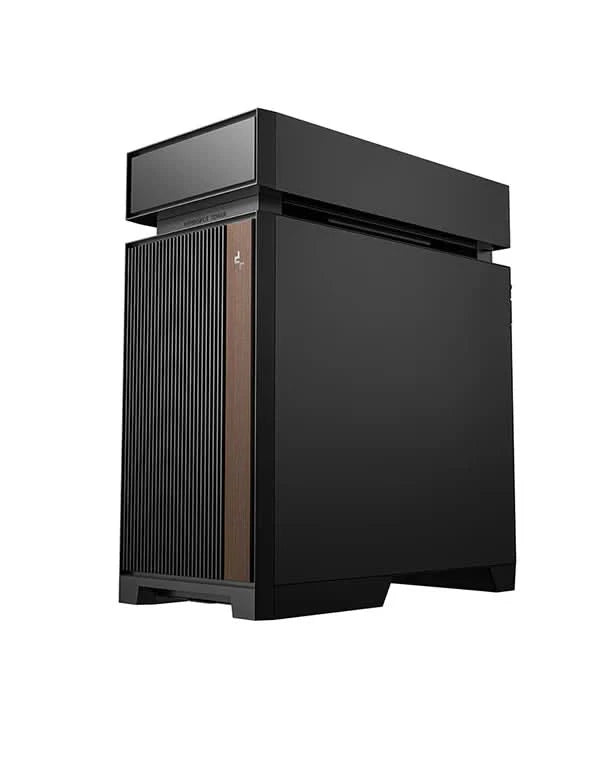

BALANCE IN LAYERS

A raised top chamber redefines the overall silhouette while keeping space organized. Vertical grille bars at the front provide natural ventilation and create visual rhythm, with real wood adding an organic finish to the clean, modern aesthetic
