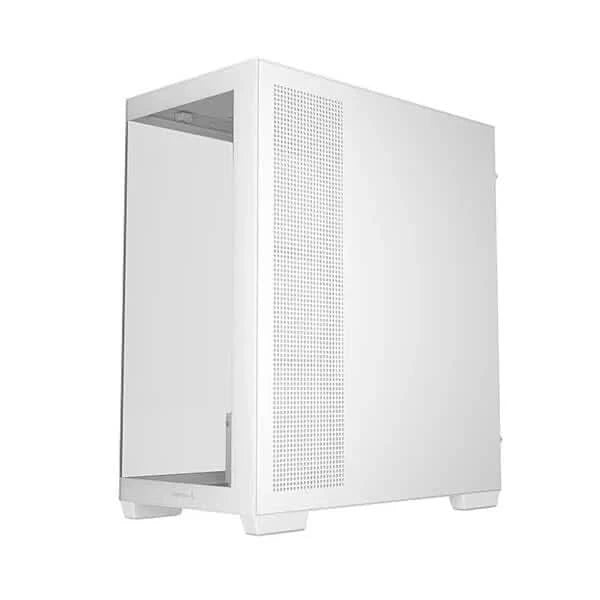

The CG580 WH is a white-coated, picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 WH is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN
The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORTYOU NEEDDesigned to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 WH can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5"" HDD drive.
QUALITY OF LIFE FEATURES
With two USB 3.0 ports and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. The magnetic top filter keeps dust out of your system and makes cleaning a little easier.
Specifications:
Model Number
R-CG580-WHNDA0-G-1
Product Dimensions
437×235×501mm(L×W×H)
Net Weight
7.9Kg
Materials
ABS+SGCC+Tempered Glass
Motherboard Support
ITX/Micro-ATX/ATX ITX/Micro-ATX/ATXATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports
USB3.0×2、Audio×1、Power、Reset
3.5" Drive Bays
2
2.5" Drive Bays
2+1
Expansion Slots
7 Slots
Pre-Installed Fans
None
Fan Support
Front: NATop: 3×120mm/2x140mmSide: 3x120mmRear: 1×120mm/1x140mmBottom: 1×120mm（3.5 HDD/120FAN :Choose one of two）PSU Shrouded: 2×120mm
