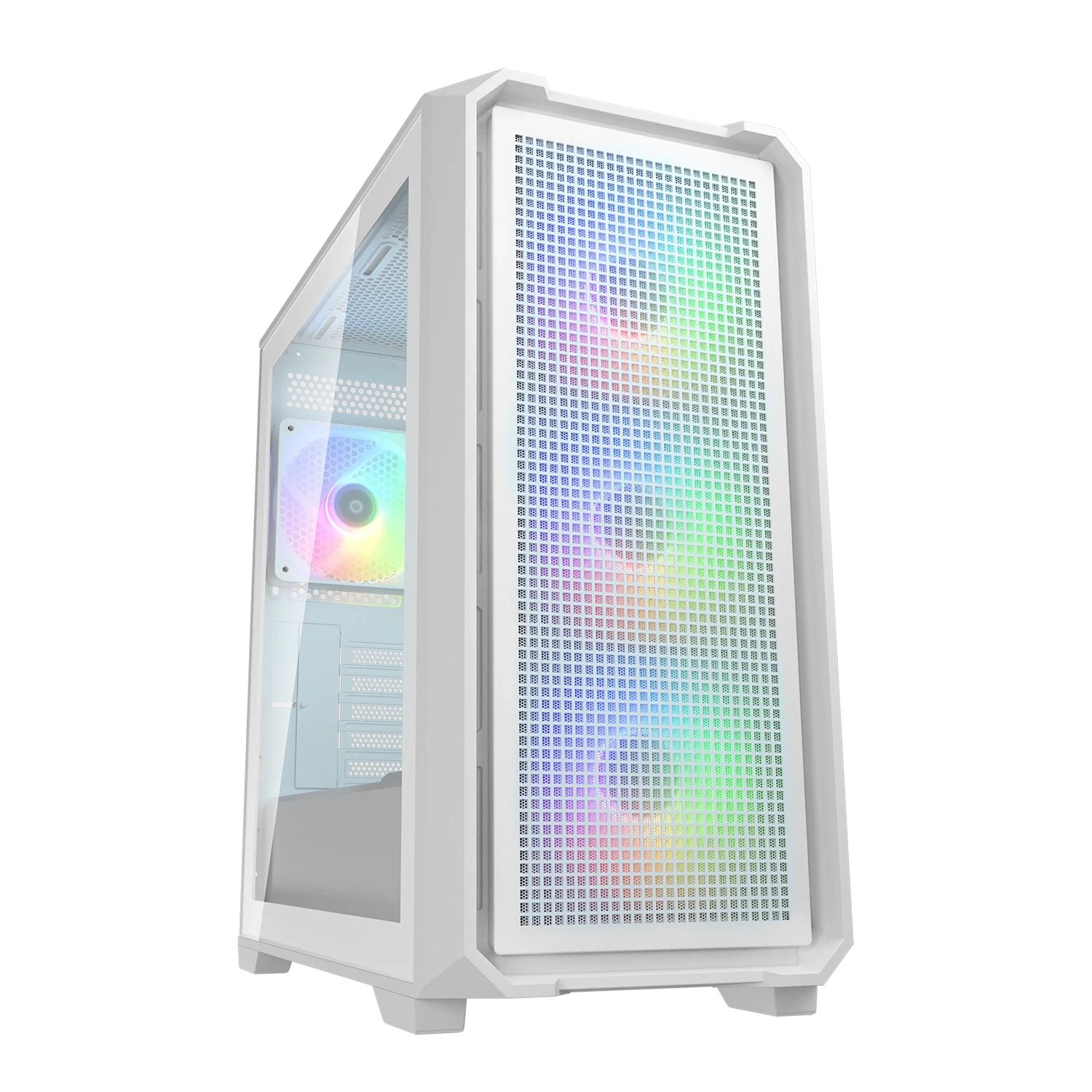

Featuring a square-perforated front panel, an airflow-guiding ramp, and support for up to 360mm water cooling, the MX600 Mini V2 packs formidable cooling into a space-efficient small form factor.
Square-perforated front panels ensure maximum, optimised airflow.
Airflow ramp precisely guides air current to cool components.
Preinstalled ARGB fans: 3x120mm in front and 1x120mm to the rear. Maximum capacity of 6 fans.
Water cooling support: up to 360mm in front OR up to 280mm on top.
Accommodates 360mm GPUs.
USB 3.0 Type-A x 2, 4 pole headset audio jack for fast, versatile device connectivity.
Houses 1 x 3.5” HDD drives and 2+1 2.5” SSD drives (converted from 3.5” drive bay)
Optimized Airflow
The MX600 Mini V2 is inoculated against escalating temperatures with a square-perforated front panel and precision-guided cooling.
Specifications:
Product Name
MX600 Mini V2 (White)
Case Size
Mini Tower
Motherboard Support
Mini ITX / Micro ATX
Dimensions (WxHxD)
210 x 450 x 415 (mm)8.3 x 17.7 x 16.3 (in)
I/O Panel
USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack, RGB Button
3.5" Drive Bay
1
2.5" Drive Bay
2+1 (converted from 3.5" drive bays)
Expansion Slots
5
Cooling Fan Support
Front
120mm x 3 / 140mm x 2
Top
120mm x 2 / 140mm x 2
Rear
120mm x 1
Pre-installed Fans
Front
120mm ARGB fan x 3
Rear
120mm ARGB fan x 1
Speed
1000 ± 10% RPM
Connector
5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans
6
Water Cooling Support
Front
* 360mm / 280mm / 240mm / 140mm / 120mm
