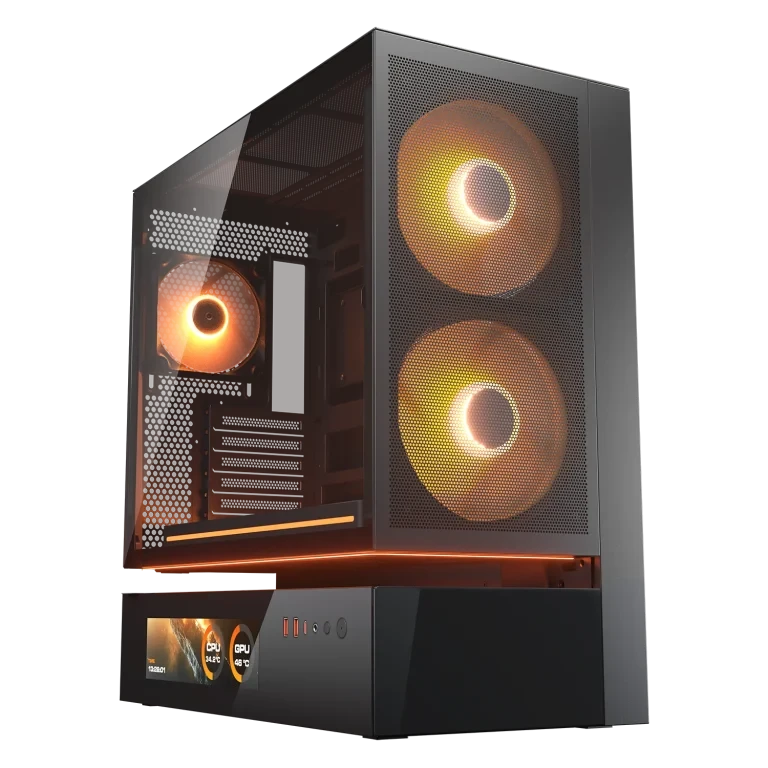

COUGAR CFV235 Mesh Vision ARGB ATX Mid Tower Cabinet ( Black )

Special Price ₹16,415.00 Regular Price ₹16,750.00

Product Name	CFV235 Mesh Vision / CFV235 Mesh Vision (White)
Case Form Factor	Mid Tower
Motherboard Type	Mini ITX / Micro ATX / ATX / CEB
Dimensions (WxHxD)	235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in)
9.16" LCD Monitor (1920 x 462 px)	Yes
I/O Panel	USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay	2
2.5" Drive Bay	2+2 (converted from 3.5" drive bays)
Expansion Slots	7
Cooling Fan Support	Front	160mm x 2
Top	120mm x 3 / 140mm x 2
Bottom	120mm x 3
Rear	120mm x 1
Pre-installed Fans	Front	160mm ARGB PWM fan x 2

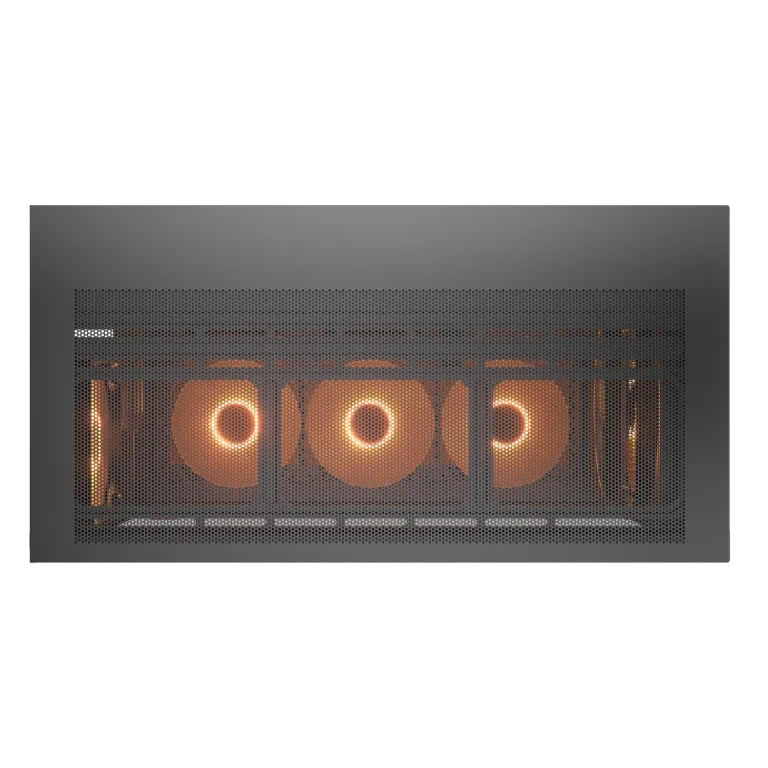

Bottom	Unity 360 ARGB PWM Reversed fan x 1

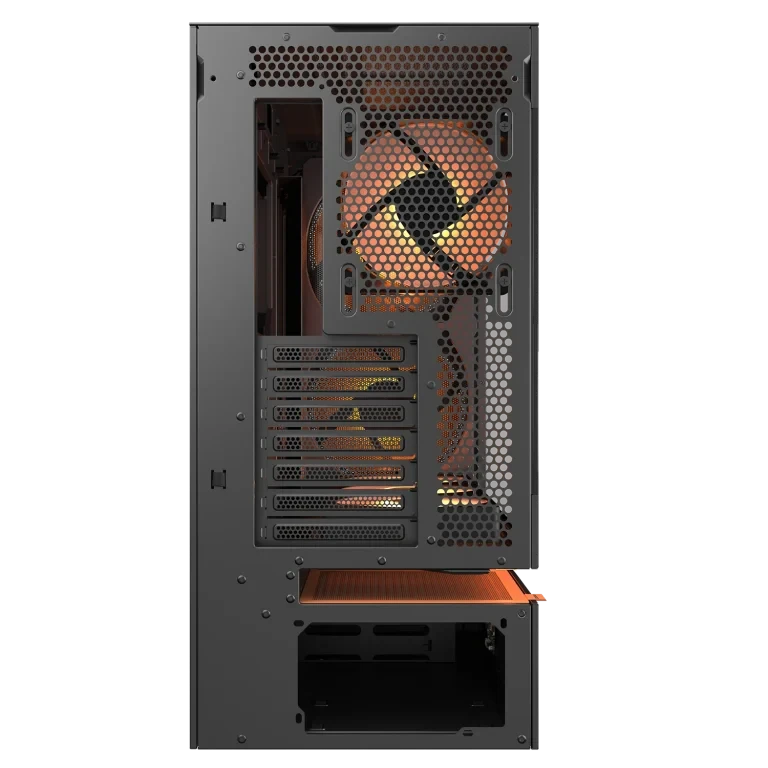

Rear	120mm ARGB PWM fan x 1
Speed	160mm ARGB PWM fan: 500-1200 ± 10% RPM Unity 360 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM
Connector	5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans	9
Water Cooling Support	Top	360mm / 280mm / 240mm / 140mm / 120mm
Rear	120mm
Aurora LED Strip	Yes
PWM and RGB hub Sync with M/B	Yes
Max. Graphics Card Length	400 (mm) / 15.7 (in)
Max. CPU Cooler Height	175 (mm) / 6.9 (in)
Max. PSU Length	200 (mm) / 7.9 (in)

Packing Data

	CFV235 Mesh Vision	CFV235 Mesh Vision (White)
Product Number (P/N)	382DA40.0007	382DA40.0008
Model No.	CGR-2DA4B-MV	CGR-2DA4W-MV
EAN CODE	4711649770143	4711649770150
UPC CODE	192554009773	192554009780
JAN CODE	4541995045172	4541995045189
Individual Size W/O Packaging Weight (N.Weight)	10.9 kg
Individual Packaging Weight (G.Weight)	13.3 kg
Individual Size W/O Packaging (WxHxD)	235 x 493 x 460 mm
Individual Packaging Size (WxHxD)	542 x 578 x 317 mm

Central Floating Ventilation free-floating separation provides a unique visual identity.
True floating void adds an extra dimension of airflow across 270° of access.

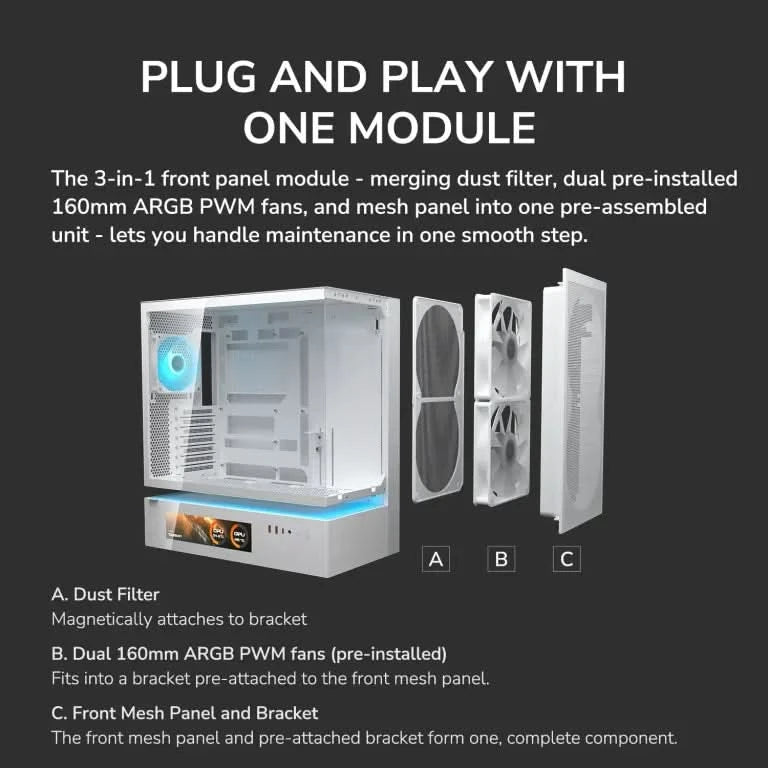

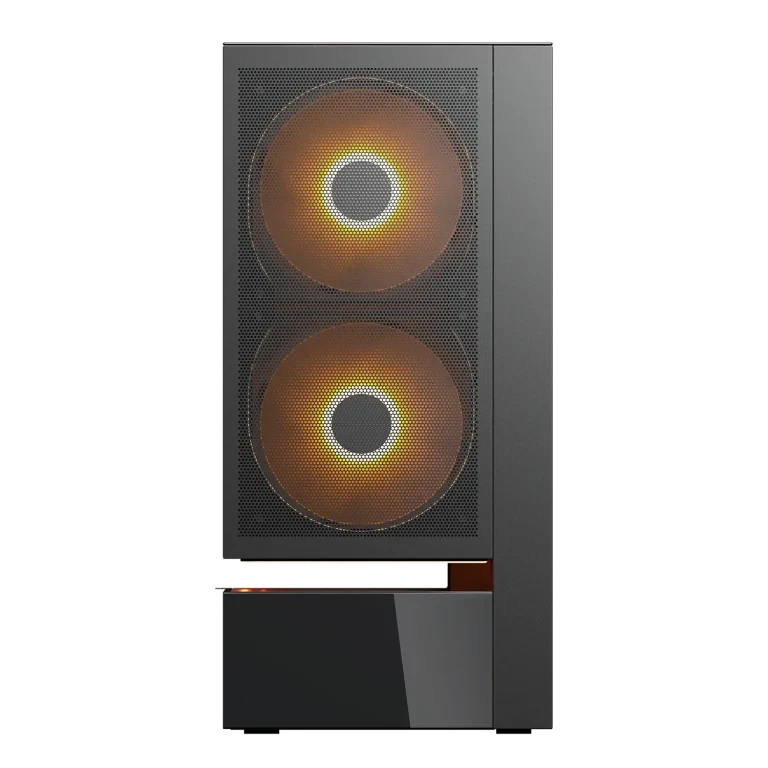

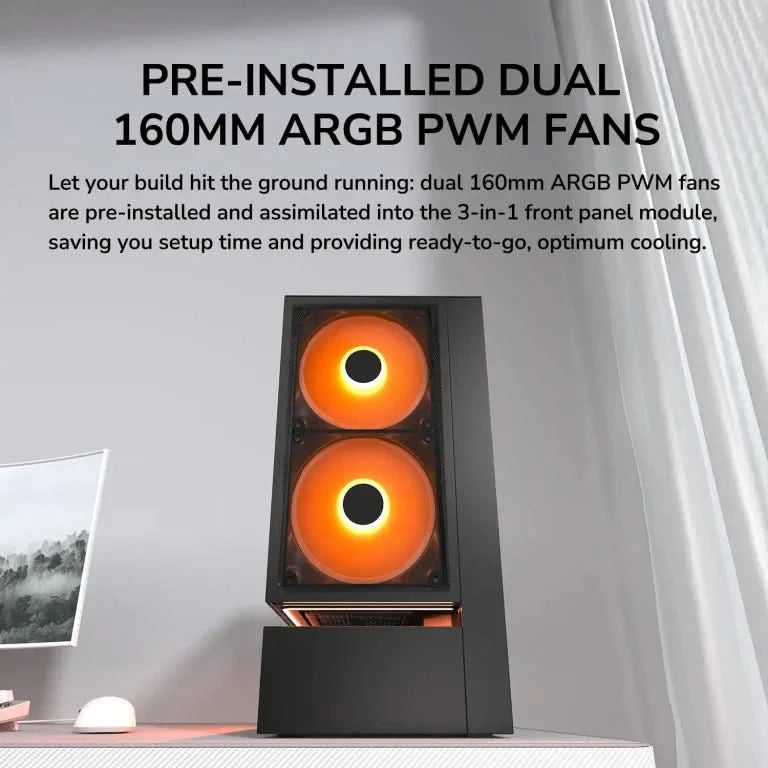

A 3-in-1 front panel module pre-assembles a dust filter, dual pre-installed 160mm ARGB PWM fans, and mesh panel into a single unit for even easier maintenance.

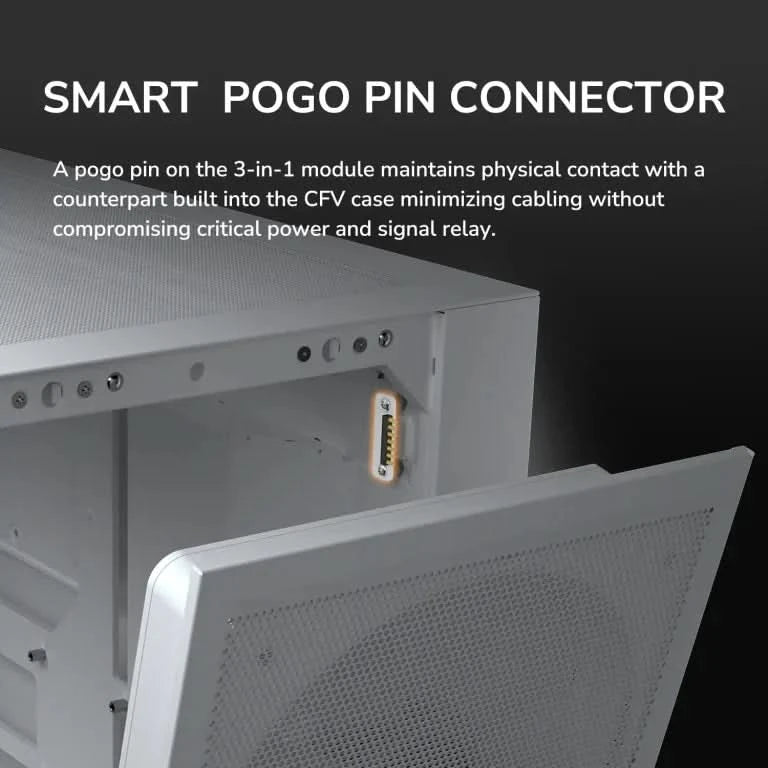

The module uses a pogo pin to connect with the case€™s built-in counterpart, minimizing cabling for easy setup and a cleaner view.

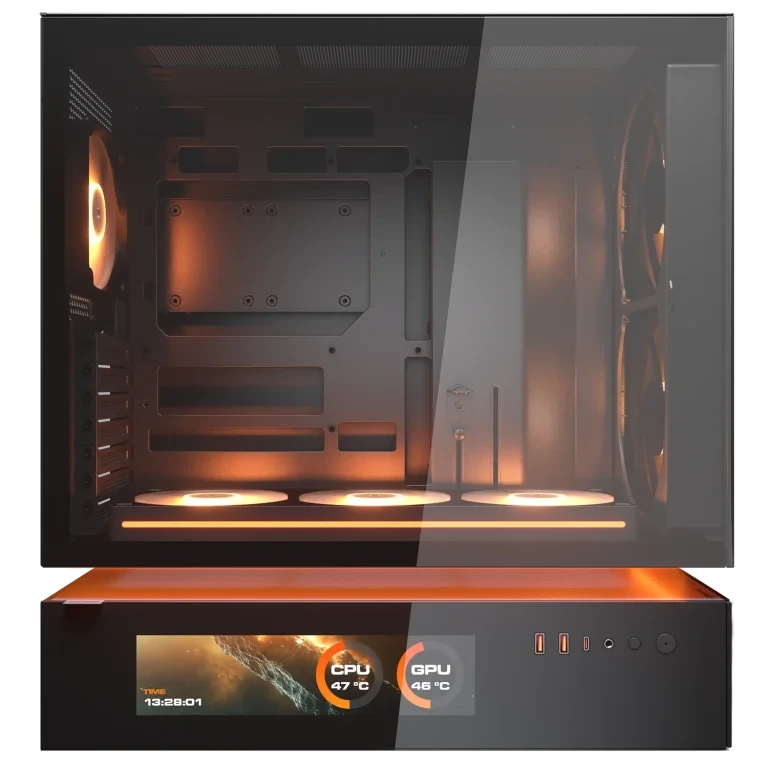

9.16-inch IPS TFT LCD delivers real-time readouts and customizable visuals in 1920 x 462 resolution with 60Hz refresh rate, fully accessible from your desktop through control software.
The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.
Accommodates a maximum GPU length of 400mm.
Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.
USB 3.2 Gen 2Ã—2 Type-C (20 Gbps) x 1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
Houses 2 x 3.5€ HDD drives and 2+2 2.5€ SSD drives (converted from 3.5€ drive bays)
Peripheral Vision
The CFV235 Mesh Vision is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.
Full House
Accommodating 2x3.5€ HDD drives and 2+2 2.5€ SSD drives (converted from 3.5€ drive bays), versatile storage options gives you plenty of room to expand your storage as needed.
