Features:

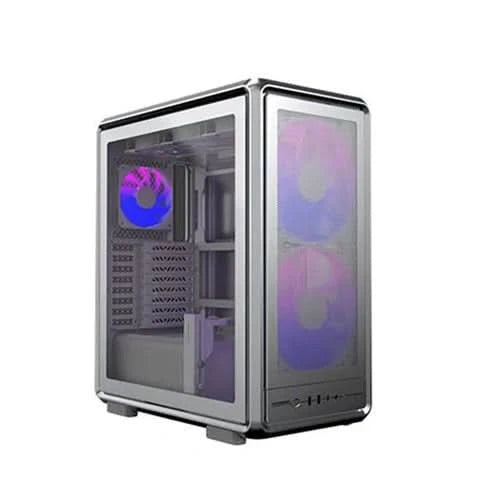

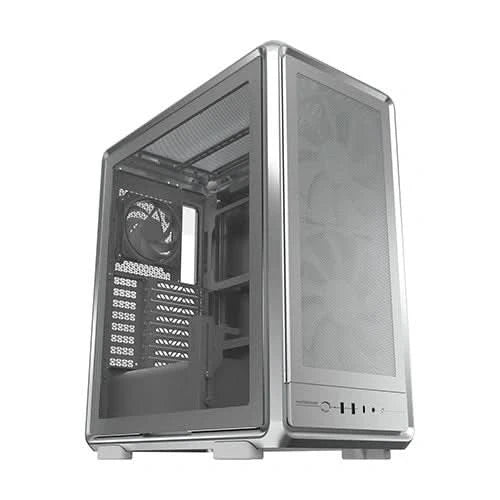

The MasterFrame 500 Mesh is a premium open-frame mid-tower chassis built for high-performance components, advanced cooling setups, and limitless customization. Embracing the FreeForm 2.0 design philosophy, it supports ATX to E-ATX motherboards and provides full access to modular design files. With enhanced mesh panels for improved airflow, it empowers builders, modders, and creators to push the boundaries of PC design.

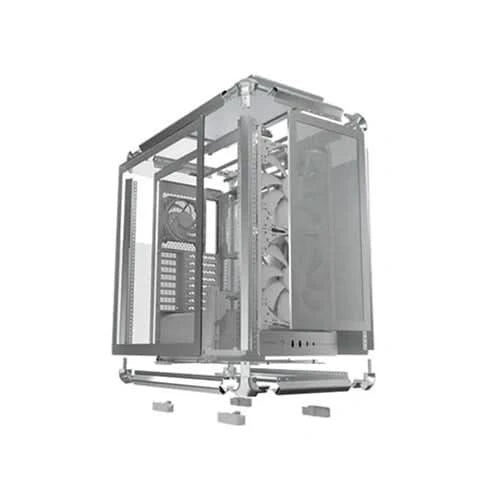

FreeForm 2.0 Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Flexible Motherboard Support
Supports Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
Extensive Cooling Support
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
-
Dimensions (L x W x H): 471 x 261 x 544mm (Incl. Protrusions), 471 x 244 x 514mm (Excl. Protrusions)
-
Power Supply Support: ATX
-
3.5" Drive Bays: 0
-
2.5" / 3.5" Drive Bays (Combo)1 (Bottom)
-
Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay(or SSD) (remark Toolfree quantity): 1x 2.5 or 1x 3.5
Preinstalled Fan
-
Front : 2x SickleFlow 200mm (ARGB)
-
Rear : 1x 120mm (ARGB)
Fan Support:
- Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
- Top: 3x 120mm, 2x 140mm, 2x 180mm , 1x 200mm
- Rear: 1x 120mm
- Bottom: 3x 120mm, 3x 140mm
Radiator Support:
- Front: 120 / 140 / 240 / 280 / 360 mm
- Top: 120 / 140 / 240 / 280 / 360 mm
- Rear: 120 mm
|
|
| Cabinet |
| Cabinet Size |
MID-TOWER |
| Color |
Silver |
| Material |
Steel, Aluminum,Tempered Glass |
| Expansion Slots |
8 |
| Motherboard Size |
SSI-CEB,E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height |
190mm |
| Max PSU Length |
235mm |
| Max Gpu Length |
390mm |
| Max 3.5" HDD |
1 |
| Max 2.5" SSD |
2 |
| Pre Installed Fans |
3 |
| Max Fan Support |
10 |
| Radiator Support |
360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel |
USB 3.2 Gen 1 Type A,USB 3.2 Gen 2x2 Type C,3.5mm Headset Jack |
| Warranty |
2 Years |
| Note*** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
|
