Series | MasterBox Series |
Size | Mid Tower |
Color(s) | Black |
Materials | Steel, Plastic, Tempered Glass |
Dimensions (L x W x H) | 496 x 217 x 469 mm |
Weight | 6.59 kg |
Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB*, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |
Expansion Slots | 7 |
5.25" Drive Bays | N/A |
2.5" / 3.5" Drive Bays (Combo) | 2 (Max.2) |
2.5" Drive Bays | 4 (Max.6) |
I/O Panel | 2 x USB 3.2 Gen 1 (USB 3.0), 1 x 3.5mm Audio Jack,1 x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model) |
Pre-installed Fans - Front | 3x 120mm 650~1800RPM SickleFlow PWM ARGB |
Pre-installed Fans - Rear | 1x 120mm 1000-1400RPM MasterFan Lite |

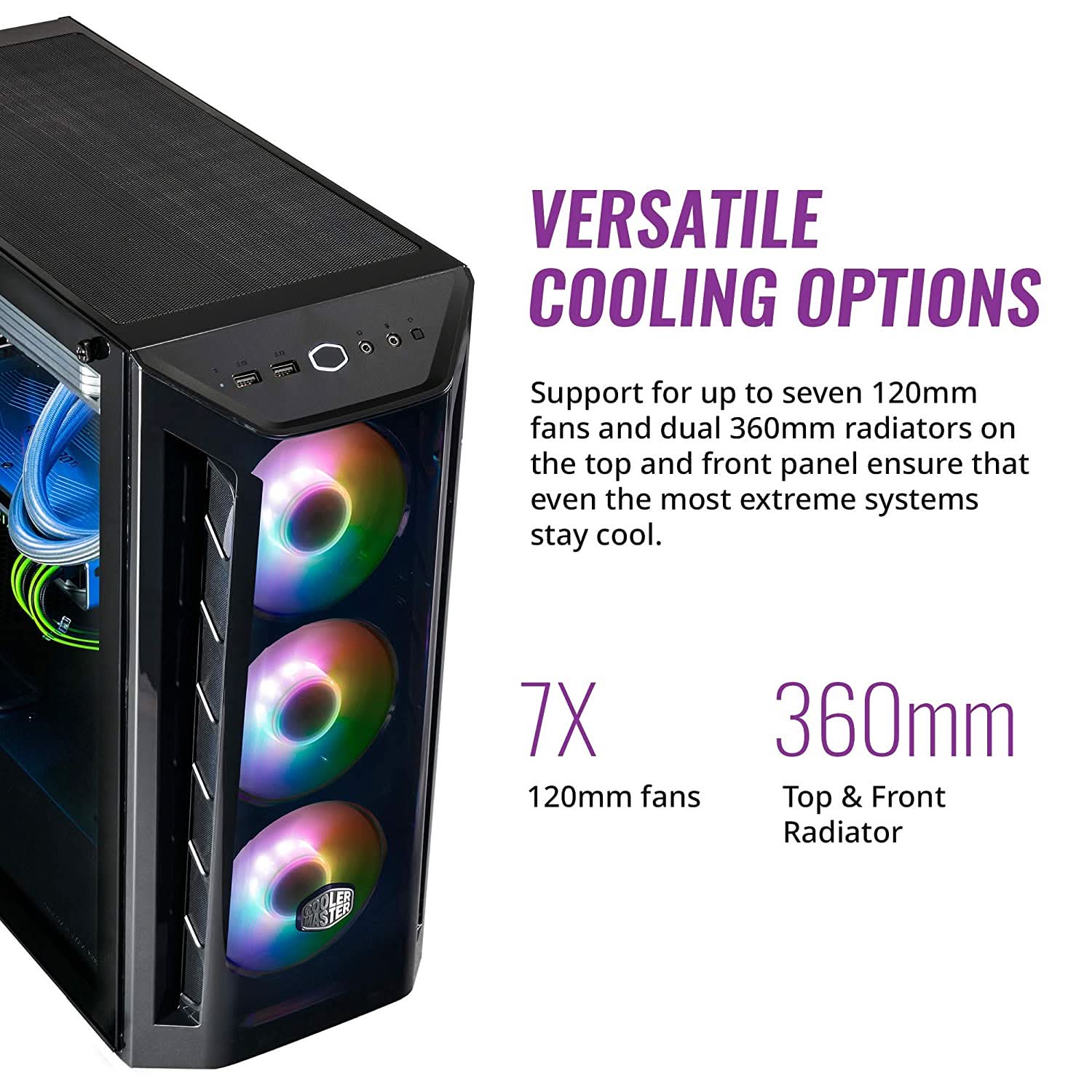

Fan Support - Top | 3x 120mm, 2x 140mm |
Fan Support - Front | 3x 120mm, 2x 140mm |
Fan Support - Rear | 1x 120mm |
Radiator Support - Top | 120mm, 240mm, 360mm, (44mm max motherboard component height) |
Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance) |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 165mm / 6.49" |
Clearance - PSU | 180mm/7.08" |
Clearance - GFX | 410mm/16.1" |
Cable Routing | 19~27mm |
Dust Filters | Top, Front, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 years |
Model Number | MCB-B520-KGNN-RGA |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
| Featured | Yes |
|---|---|
| brand | Cooler Master |
