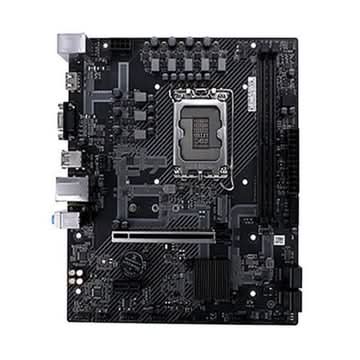

COLORFUL H610M-D M.2 V20 DDR4 Intel Motherboard

Features:
Colorful H610M-D M.2 V20 DDR4 Intel Motherboard
Motherboard Series Colorful Chipset Intel H610 Processor Supports 12th Gen Intel® Core Processors (Socket 1700) Memory 2 DIMM slots, support dual channel DDR4-3200/3000/2800/2666/2400 MHz; Graphics Support 1*PCI Express 4.0 x 16 slot SATA Ports 4*SATA 3.0 6Gb/s ports Board I/O 1*HDMI port, 1*VGA port; 4*USB 2.0 ports, 2*USB 3.2 Gen1 ports; 3*audio ports; Expansion Slots 1*PCI Express 4.0 x16 slot, 1*PCI Express 3.0X 1 slot, 1*M. 2 slot; BIOS 128M UEFI Hardware Monitor CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring LAN 1000Mbit LAN Audio 6-Channel High Definition audio Configuration 235mm x 205mm, M-ATX

Specifications



Brand
Colorful


Model
H610M-D M.2 V20


Supported CPU



CPU Socket Type
LGA1700


CPU Type
Supports 12th Gen Intel® Core™ Processors


Chipset
Intel H610


Number of Memory Slots
2 x DDR4


Memory Standard
support dual channel DDR4-3200/2933/2666/2400MHz


Maximum Memory Supported
64GB


Channel Supported
Dual Channel


Expansion Slots



PCI Express x16

1*PCI Express4.0×16slot,1*PCIExpress3.0X1 slot,1*M.2 slot
1*PCI Express 4.0 x 16 slot



Storage Devices



SATA 3Gb/s
4 x SATA3 6.0 Gb/s Connectors


Audio Channels
6-Channel High Definition audio CODEC


Onboard LAN



LAN Chipset
1000M LAN，


Rear Panel Ports



USB
4*USB 2.0 ports,2*USB 3.2 Gen1 ports


Audio Ports
3 x audio jacks


Video Ports
HDMI, VGA


HDMI
1 x HDMI


Form Factor
Micro ATX


Power Pin
1 x 24-pin Main Power connector


Dimensions
230X180mm
