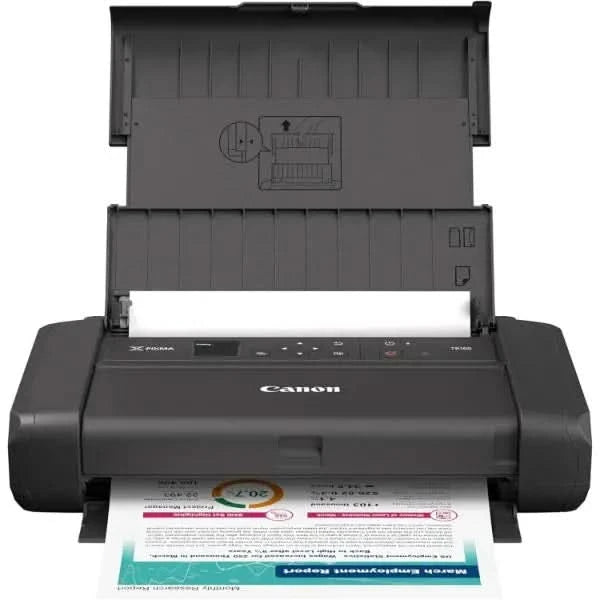

Canon Pixma TR160 Wireless Portable Printer
Canon PIXMA TR160 LIGHTWEIGHT AND PORTABLE – Connect and print on the go with the PIXMA TR160. This lightweight portable printer can fit into a bag or backpack with room to spare.
HIGH-QUALITY PRINTING ON THE GO – Print documents and photos up to 8.5” x 11” that showcase sharp black text and vibrant details with rich color thanks to a 5-Color Hybrid Ink System, including square and borderless prints.
SIMPLE & EASY CONNECTIVITY – Printing is only an app away when using the Canon PRINT app, Apple AirPrint4, or Mopria Print Service5 with your compatible device(s) or the cloud.
WIRELESS DIRECT MODE – Connect your compatible device to the printer even without a wireless router.
1.44” OLED DISPLAY – Easily check ink levels, printer status, and other settings with the 1.44” Monochrome OLED.
Print Head / Consumables
Number of Nozzles
Total 1,856 nozzles
Ink Cartridges (Type/Colours)
PGI-35 (Pigment Ink/Black), CLI-36 (Dye-Based/Cyan, Magenta, Yellow, Black)
Maximum Printing Resolution
4,800 (Horizontal)*1 x 1,200 (Vertical) dpi
Print Speed (Approx.)
Document (ESAT/Simplex)*3
9 / 5.5 images per minute (Mono/Colour)
Document (FPOT Ready/Simplex)*4
11 / 15 s (Mono/Colour)
Photo 4 x 6" (PP-201/Borderless)*5
53 s
Paper Handling
Print Margin
Borderless Printing
Top/Bottom/Left/Right: 0 mm
Bordered Printing
Envelopes (COM10, DL): Top: 3 mm, Bottom: 12.7 mm, Left/Right: 3.4 mm
Square (127 x 127 mm): Top/Bottom/Left/Right: 6 mm
Square 89 x 89 mm (4 x 4"): Top/Bottom/Left/Right: 5 mm
LTR, LGL: Top: 3 mm, Bottom: 5 mm, Left: 6.4 mm, Right: 6.3 mm
Others: Top: 3 mm, Bottom: 5 mm, Left/Right: 3.4 mm
Supported Media (Rear Tray)
Plain Paper (64 - 105 g/m²), High Resolution Paper (HR-101N), Photo Paper Plus Glossy II (PP-201, PP-208), Matte Photo Paper (MP-101), Envelope
Paper Size (Rear Tray)
A4, A5, B5, LTR, LGL, Envelopes (DL, COM10), Square (127 x 127 mm, 88.9 x 88.9 mm), Card Size (91 x 55 mm), 101.6 x 152.4 mm, 127 x 177.8 mm, 177.8 x 254 mm, 203.2 x 254 mm, [Custom Size] Width: 55 - 215.9 mm, Length: 89 - 676 mm
Borderless Printing*6
A4, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (89 x 89 mm, 127 x 127 mm), Card Size (91 x 55 mm)
Paper Weight (Rear Tray)
Plain Paper: 64 - 105 g/m², Canon Specialty Paper: Approx. 275 g/m² (Max.) (Photo Paper Plus Glossy II, PP-201)
Maximum Capacity (Rear Tray)
Plain Paper (A4, LTR): 50, Photo Paper Plus Glossy II (PP-208, 4 x 6"): 10
Network
Protocol
SNMP, HTTP, TCP/IP (IPv4/IPv6)
TLS
1.3 / 1.2 / 1.1 / 1.0
Wireless LAN
Type
IEEE 802.11a/ac/b/g/n
Frequency Band
2.4 GHz / 5 GHz
Channel
2.4 GHz: 1 - 11, 5 GHz: W52, W53, W58
Security
WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES)
Direct Connection (Wireless LAN)
2.4 GHz: Available
Printing Solutions
Canon Printing Apps (Mobile iOS/Android)
Canon PRINT, Easy-PhotoPrint Editor, Creative Park
Canon Printing Apps (PC Windows/Mac)
Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser-based)
Mobile/Cloud Printing Solutions
AirPrint®, Mopria® Print Service, Canon Print Service (Android), Direct Wireless, Cloud Service (via Smartphone/Tablet)
System Requirements
OS System Compatibility*7
Windows 11 / 10 / 8.1 / 7 SP1, macOS 11.7.6 - 14 or later, ChromeOS
General Specifications
Operation Panel
Display
3.6 cm (1.44") OLED (Mono)
Interface
USB 2.0
Operating Environment*8
Temperature: 5 - 35°C, Humidity: 10 - 90% RH (no dew condensation)
Recommended Environment*9
Temperature: 15 - 30°C, Humidity: 10 - 80% RH (no dew condensation)
Storage Environment
Temperature: 0 - 40°C, Humidity: 5 - 95% RH (no dew condensation)
Quiet Mode
Available
Acoustic Noise (PC Print)*10
Plain Paper: 40.5 dB(A)
Power Requirements
AC 100 - 240 V, 50/60 Hz
Power Consumption (Approx.)
OFF: 0.15 W, Standby (USB connection to PC): 1.1 W, Operation*11: 8 W
Duty Cycle
Up to 500 prints/month
Dimensions (W x D x H) (Approx.)
with Optional Battery: 322 x 210 x 66 mm, without Optional Battery: 322 x 185 x 66 mm, Output Tray Extended: 322 x 307 x 245 mm
Weight (Approx.)
with Optional Battery: 2.3 kg, without Optional Battery: 2.1 kg
Page Yield*12
A4 Colour Documents*13
PGI-35: 200, CLI-36: 260
Photo Paper (PP-201) 4 x 6" Photos*14
PGI-35: N/A, CLI-36: 102
External Battery, LK-72 (Optional)
Type
Lithium-ion
Voltage Level
DC 10.8 V; 2170 mAh
Charging Time (Approx.)
AC Adaptor: 2 hr 20 min, USB 1.5A: 5 hr
Printable Pages (Approx.)
Full charge15: 330 sheets, 10 min charge with AC Adaptor16: 36 sheets, 5 min charge with USB 1.5A*16: 4 sheets
