| Specification | Details |
|---|---|

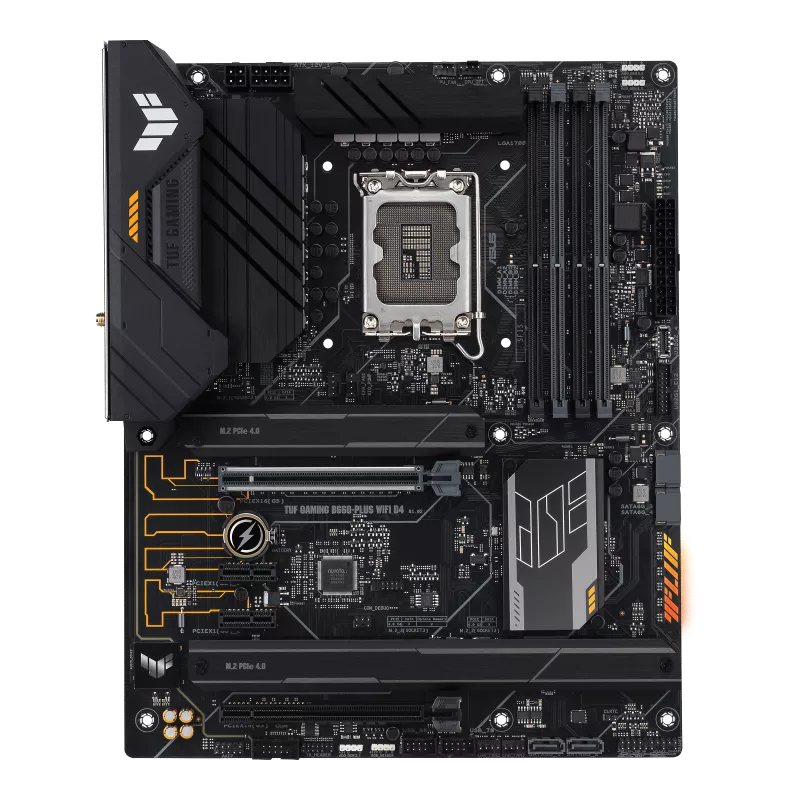

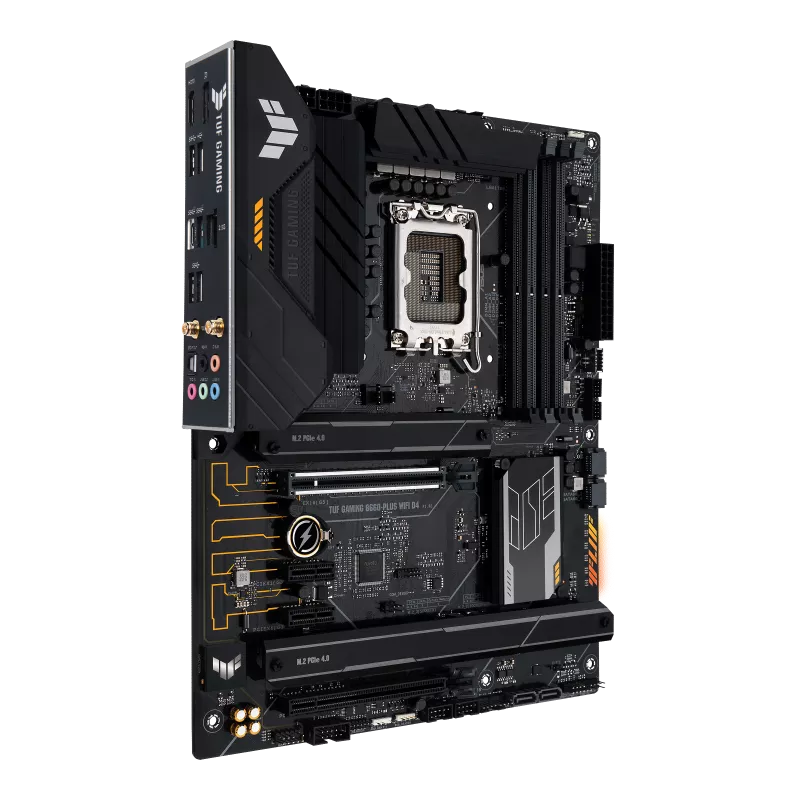

| Model | TUF GAMING B660-PLUS WIFI D4 |
| CPU | Intel Socket LGA1700 for 13 th Gen Intel Core Processors & 12 th Gen Intel Core , Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B660 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel 13 th & 12 th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel Optane Memory H Series on PCH-attached PCIe slot |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13 th & 12 th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| Ethernet | 1 x Intel 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (3 x Type-A) 1 x USB 2.0 port(s) (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (3 x Type-A) 1 x USB 2.0 port(s) (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Featured | Yes |
|---|---|
| brand | ASUS |
