Specifications
Specification
Details
Model

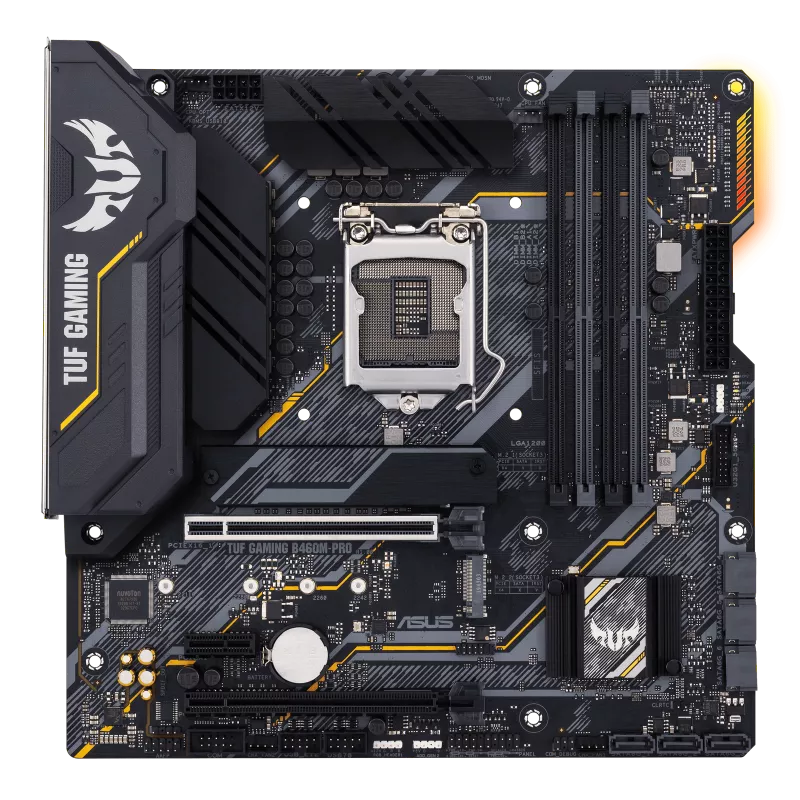

TUF GAMING B460M-PRO
CPU
Intel Socket 1200for 10 th Gen Intel Core , Pentium Gold and Celeron Processors *,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**,**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel 14nm CPU,* Refer to www.asus.com for CPU support list
Chipset
Intel B460
Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *,OptiMem,* 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,Dual Channel Memory Architecture,Supports Intel Extreme Memory Profile (XMP)
Graphic
Integrated Graphics Processor *,1 x DisplayPort 1.4 **,**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.,1 x HDMI 1.4b,*Graphics specifications may vary between CPU types.
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel B460 Chipset , Intel 10th Gen Processors ,1 x PCIe 3.0 x16 (x4 mode),1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x1
Storage
Intel B460 Chipset : , Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports ,Intel Optane Memory Ready * 2 ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 ,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel Rapid Storage Technology supports
LAN
Realtek RTL8125-CG 2.5G LAN
Audio
Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, Audio Feature : ,- Exclusive DTS Custom for GAMING Headsets.
USB Ports
5 x USB 3.2 Gen 1 port(s)(4 x Type-A +1 x USB Type-C ), Rear USB Port ( Total 7 ), Front USB Port ( Total 6 ),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features
Pre-mounted I/O Shield ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink - Aluminum heatsink design AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s)
Back I/O Ports
1 x USB 3.2 Gen 1 USB Type-C ,4 x USB 3.2 Gen 1 Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,1 x Optical S/PDIF out,5 x Audio jack(s)
Internal I/O Ports
1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),2 x Chassis Fan connector(s),2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode),6 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin EATX 12V Power connectors,1 x Front panel audio connector(s) (AAFP),1 x System panel(s) (Chassis intrusion header is inbuilt),1 x Clear CMOS jumper(s),1 x COM port header
Accessories
1 x M.2 SSD screw package(s),1 x M.2 Rubber Package(s),2 x SATA 6Gb/s cable(s),User´s manual,1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s),2 x SATA 6Gb/s cable(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PXE
Operating System
Windows 10 64-bit
Form Factor
mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note
*1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. *2 Only the M.2_2 socket can support Intel Optane Memory Ready.
