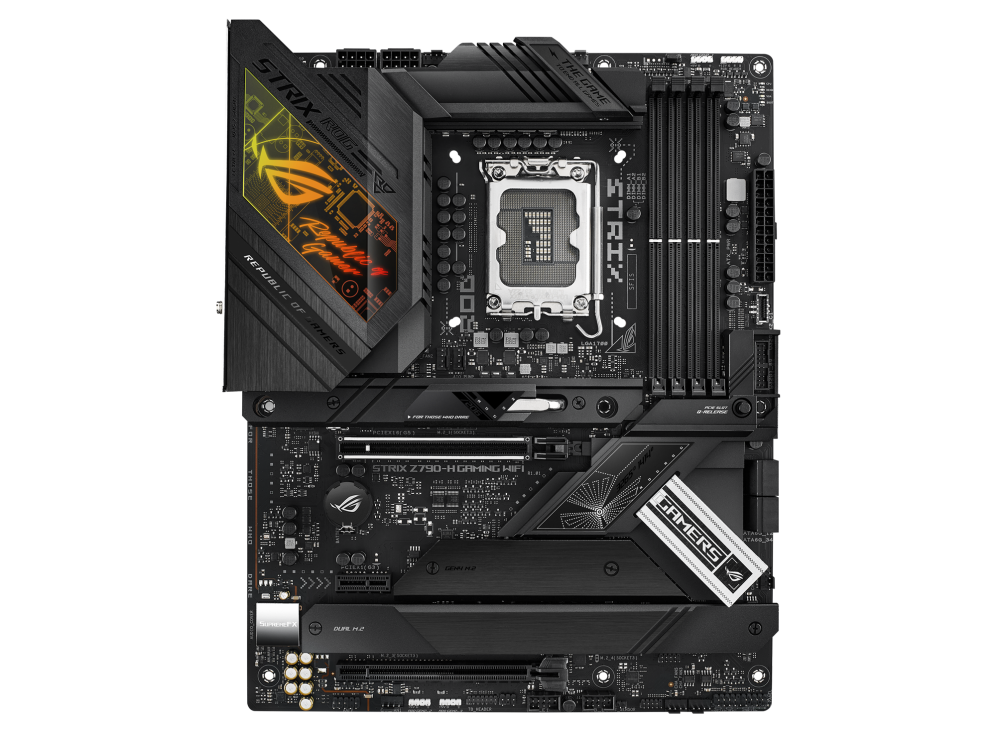

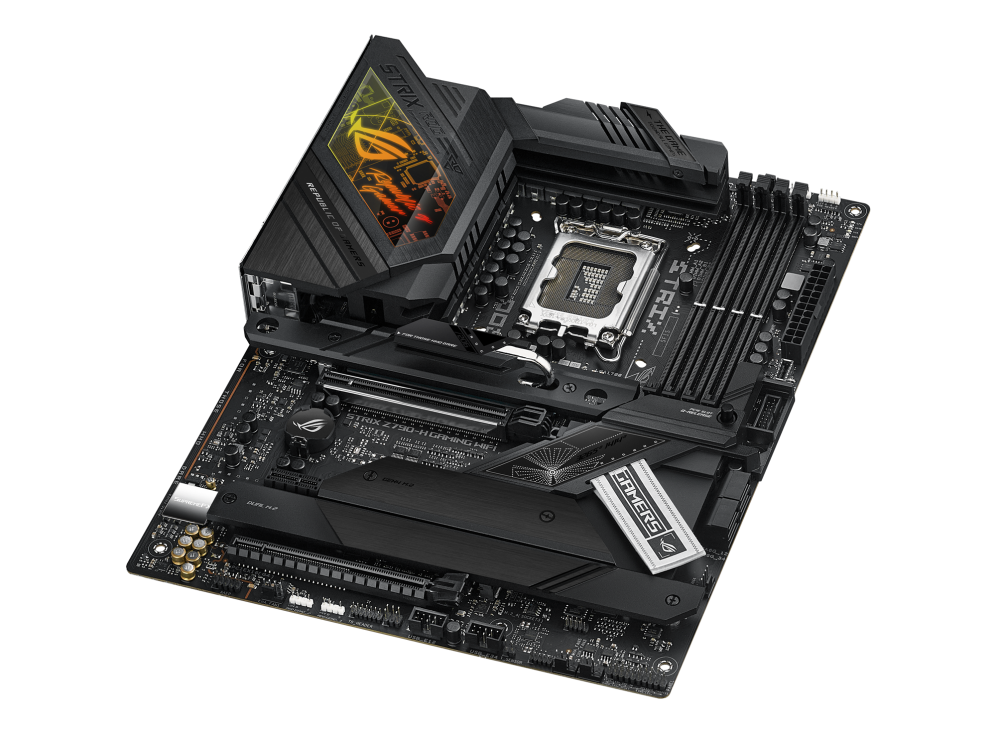

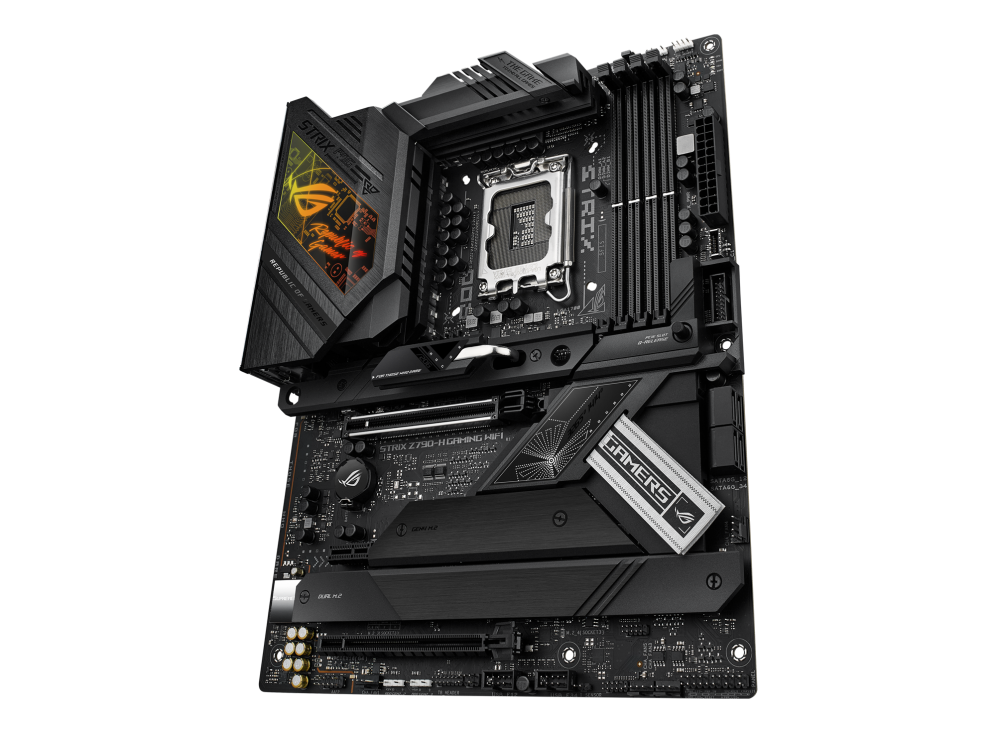

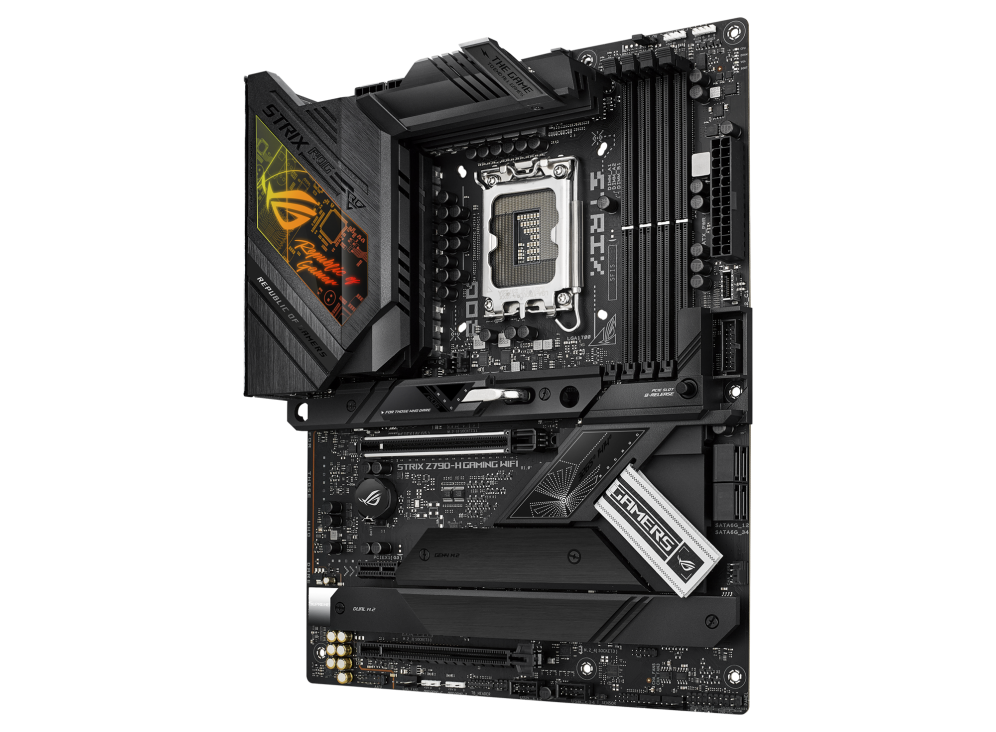

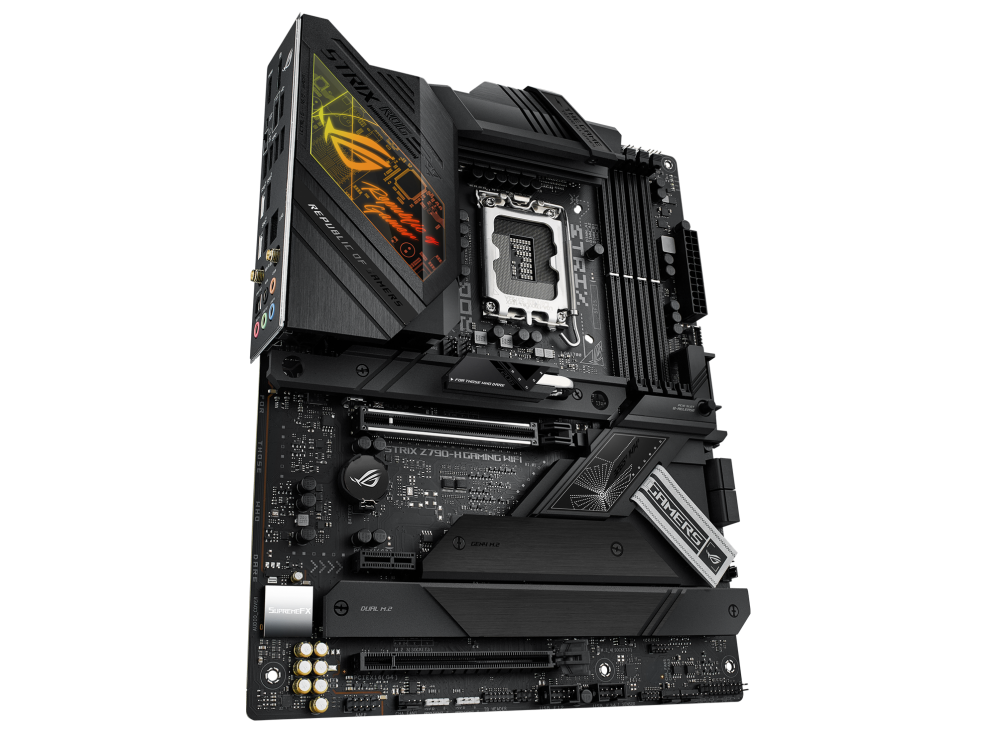

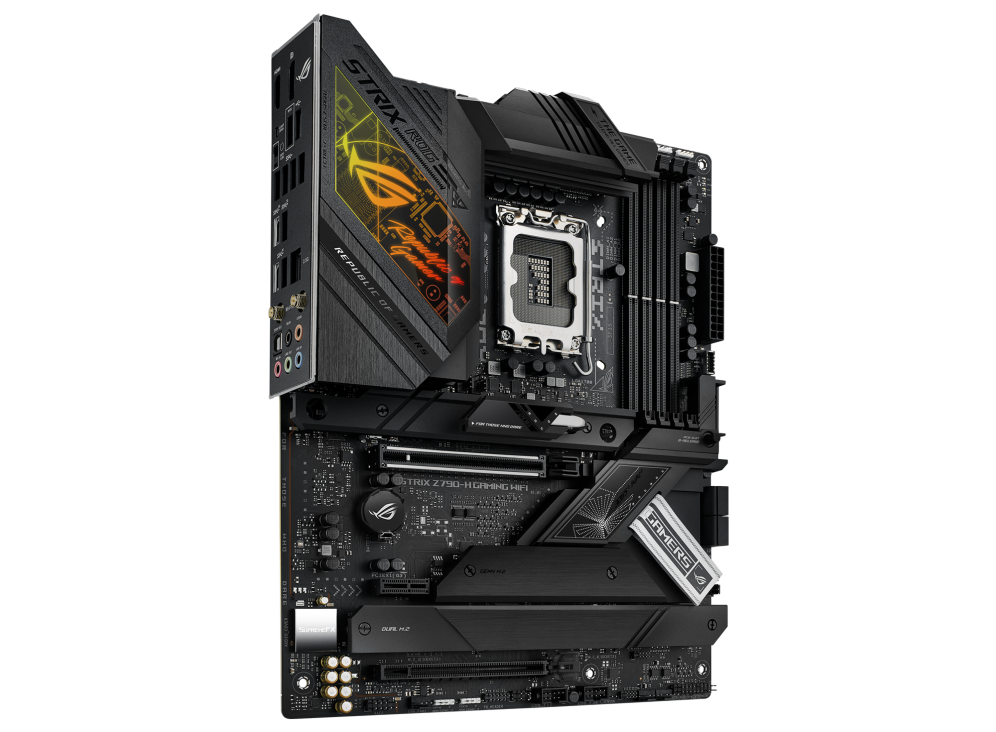

| Model | ROG STRIX Z790-H GAMING WIFI |
| CPU | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processor |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel Z790 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 |
| 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 | |
| Non-ECC, Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| Supports IntelÆ Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | 1 x DisplayPort |
| 1 x HDMI port | |
| Graphics specifications may vary between CPU types. | |
| Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| Supports 4K@60Hz as specified in HDMI 2.1. | |
| VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | Intel 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| Intel Z790 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Intel 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| Intel Z790 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * IntelÆ Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band | |
| BluetoothÆ v5.3 | |
| WiFi 6E 6GHz regulatory may vary between countries. | |
| The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | Rear USB (Total 10 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) | |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround SoundHigh Definition Audio CODEC S1220A |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Supports up to 32-Bit/192 kHz playback | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - Savitech SV3H712 AMP | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |
| *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |

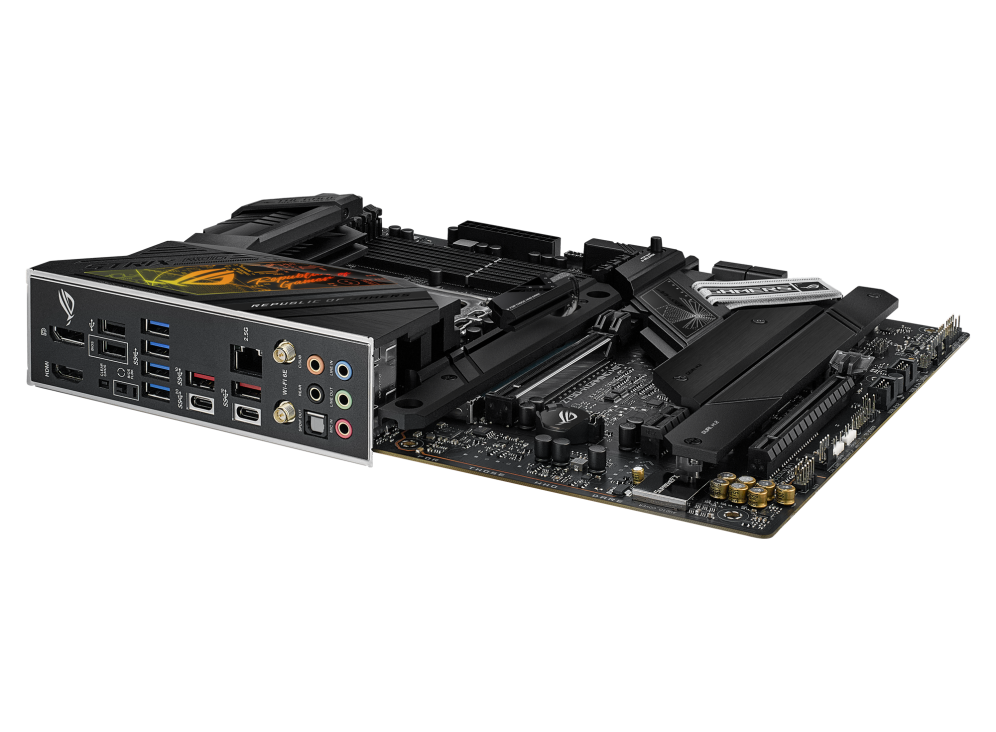

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBackô button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V Power connectors | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thermal Sensor header | |
| 1 x Thunderboltô header | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBackô button | |
| - BIOS FlashBackô LED | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTSÆ Sound Unbound | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - Aura Creator- Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - Easy Optimization with AI Overclocking | |
| - TPU | |
| - DIGI+ VRM | |
| - Turbo app | |
| - PC Cleaner | |
| - System Information | |
| MyAsus | |
| Norton 360 for Gamers | |
| WinRAR | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties package | |
| 1 x M.2 backplate Q-Latch package | |
| 1 x M.2 Q-Latch package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x ROG Strix thank you card | |
| 2 x M.2 Rubber Packages | |
| 1 x M.2 backplate Rubber | |
| PackageDocumentation | |
| 1 x User guide | |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
| Featured | Yes |
|---|---|
| brand | ASUS |
