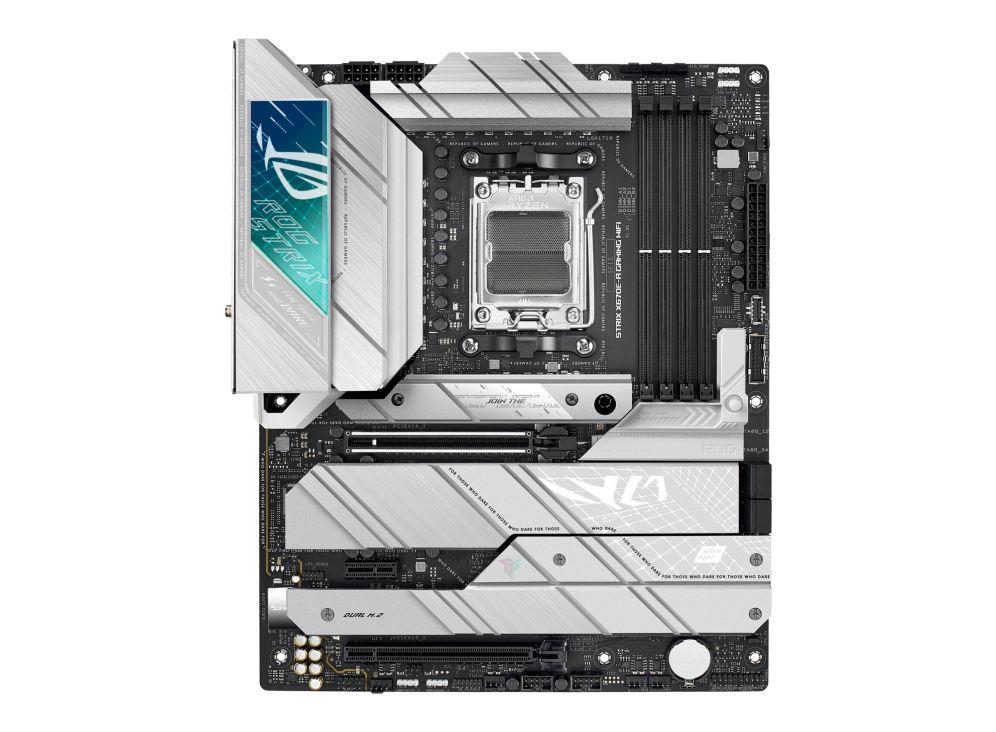

ASUS ROG STRIX X670E-A GAMING WIFI AMD AM5 MOTHERBOARD

Specifications



CPU
AMD Socket AM5 for AMD Ryzenô 7000 Series Desktop Processors


Chipset
AMD X670


Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory


Dual Channel Memory Architecture


Supports AMD EXTended Profiles for Overclocking (EXPOô)


OptiMem II


Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.


Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function


Graphics
1 x DisplayPort


1 x HDMIÆ port


*Supports max. 8K@60Hz as specified in DisplayPort 1.4.


Supports Supports 4K@60Hz as specified in HDMI 2.1.


VGA resolution support depends on processors' or graphic cards' resolution.


Expansion Slots
AMD Ryzenô 7000 Series Desktop Processors


1 x PCIe 5.0/4.0/3.0 x16 slot


AMD X670 Chipset


1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)


1 x PCIe 3.0 x1 slot


Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*


AMD Ryzenô 7000 Series Desktop Processors


M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)


AMD X670 Chipset


M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)


M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


4 x SATA 6Gb/s ports


AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10


Ethernet
1 x IntelÆ 2.5Gb Ethernet


ASUS LANGuard


Wireless & Bluetooth
Wi-Fi 6E


2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)


Supports 2.4/5/6GHz frequency band


Bluetooth v5.2


WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.


USB
Rear USB (Total 12 ports)


1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-CÆ)


1 x USB 3.2 Gen 1 port (1 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


Front USB (Total 7 ports)


1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Audio
"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080


Impedance sense for front and rear headphone outputs


Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking -


High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


Supports up to 32-Bit/384 kHz playback"


Audio Features


SupremeFX Shielding Technology


Savitech SV3H712 AMP


Rear optical S/PDIF out port


Premium audio capacitors


Audio cover


Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-CÆ)


1 x USB 3.2 Gen 1 port (1 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x DisplayPort


1 x HDMIÆ port


1 x Wi-Fi Module


1 x IntelÆ I225-V 2.5Gb Ethernet port


5x Audio jacks


1 x Optical S/PDIF out port


1 x BIOS FlashBackô button


1 x Clear CMOS button


Internal I/O Connectors
Fan and Cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


5 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


2 x 8-pin +12V Power connector


Storage related


4 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÆ )


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x Aura RGB header


1 x CPU Over Voltage jumper


1 x Front Panel Audio header (AAFP)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thermal Sensor header


1 x Thunderboltô header


Special Features
Extreme Engine Digi+


- 5K Black Metallic Capacitors


ASUS Q-Design


- M.2 Q-Latch -


PCIe Slot Q-Release -


Q-DIMM -


Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) -


Q-Slot


ASUS Thermal Solution


M.2 heatsink backplate


M.2 heatsink


VRM heatsink design


ASUS EZ DIY


BIOS FlashBackô button


BIOS FlashBackô LED


Clear CMOS button


ProCool II


Pre-mounted I/O shield


SafeSlot -


SafeDIMM


AURA Sync


AURA RGB header


Addressable Gen 2 headers


Software Features
ROG Exclusive Software


- GameFirst VI


ROG CPU-Z


Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion


Sonic Radar III


DTSÆ Sound Unbound


Anti-virus software


ASUS Exclusive Software


Armoury Crate


AIDA64 Extreme (60 days free trial)


AURA Creator


AURA Sync


Fan Xpert 4 (with AI Cooling II)


Power Saving


Two-Way AI Noise Cancellatio


AI Suite 3


TPU


DIGI+ VRM


Turbo app


PC Cleane


MyAsus


WinRAR


UEFI BIOS


ASUS EZ DIY


ASUS CrashFree BIOS 3


ASUS EZ Flash 3


ASUS UEFI BIOS EZ Mode


FlexKey


BIOS
256 Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cables


Additional Cooling Kit


1 x Thermal pad for M.2


Miscellaneous


1 x ASUS Wi-Fi moving antennas


1 x Cable ties pack


1 x M.2 Q-Latch packages for M.2 backplate


1 x M.2 Q-Latch package


1 x ROG key chain


1 x ROG Strix sticker


1 x ROG Strix thank you card


2 x Rubber Packages for M.2


1 x Rubber Package for M.2 backplate


Documentation


1 x User guide


Operating System
WindowsÆ 11 64-bit


Form Factor
ATX Form Factor


12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


Warranty
3 Years





*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
