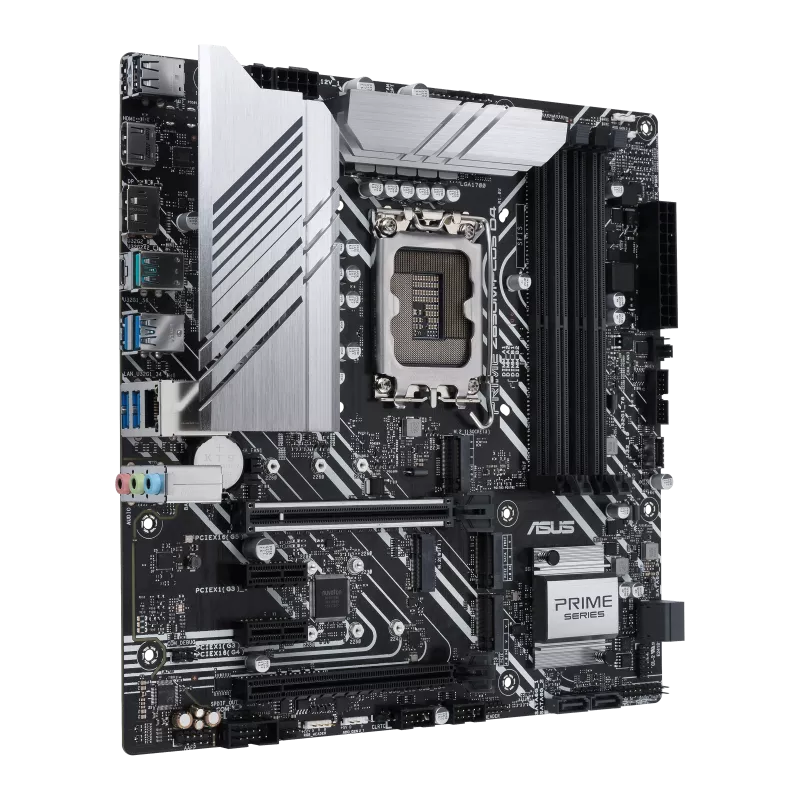

ASUS PRIME Z690M PLUS DDR4 INTEL LGA1700 MOTHERBOARD

Specifications



PRIME Z690M-PLUS D4


CPU
IntelÆ Socket LGA1700 for 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors*


Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.


** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset
IntelÆ Z690 Chipset


Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MT/s Non-ECC, Un-buffered Memory*


Dual Channel Memory Architecture


Supports IntelÆ Extreme Memory Profile (XMP)


OptiMem II


*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.


Graphics
1 x DisplayPort**


1 x HDMIÆ port***


*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


**Support 4K@60Hz as specified in DisplayPort 1.4.


***Support 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
IntelÆ 12th Gen Processors*


1 x PCIe 5.0/4.0/3.0 x16 slot


IntelÆ Z690 Chipset**


1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)


2 x PCIe 3.0 x1 slots


* Please check PCIe bifurcation table in support site.


** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot


Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*


IntelÆ 12th Gen Processors


M.2_1 slot (Key M), type 2242/2260/2280


- IntelÆ 12th Gen processors support PCIe 4.0 x4 mode.


IntelÆ Z690 Chipset**


M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)


M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)


4 x SATA 6Gb/s ports


* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.


** IntelÆ Rapid Storage Technology supports IntelÆ Optane Memory H Series on PCH attached M.2 slots.


Ethernet
1 x IntelÆ 1Gb Ethernet


Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.


USB
Rear USB (Total 8 ports)


1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


1 x USB 3.2 Gen 2 port (1 x Type-A)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


Front USB (Total 7 ports)


1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports*


* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.


Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback


Audio Features


- Audio Shielding


- Premium audio capacitors


- Dedicated audio PCB layers


* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.


Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)


1 x USB 3.2 Gen 2 port (1 x Type-A)


4 x USB 3.2 Gen 1 ports (4 x Type-A)


2 x USB 2.0 ports (2 x Type-A)


1 x DisplayPort


1 x HDMIÆ port


1 x IntelÆ 1Gb Ethernet port


3 x Audio jacks


Internal I/O Connectors
Fan and cooling related


1 x 4-pin CPU Fan header


1 x 4-pin CPU OPT Fan header


1 x 4-pin AIO Pump header


3 x 4-pin Chassis Fan headers


Power related


1 x 24-pin Main Power connector


1 x 8-pin +12V Power connector


1 x 4-pin +12V Power connector


Storage related


3 x M.2 slots (Key M)


4 x SATA 6Gb/s ports


USB


1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


3 x Addressable Gen 2 headers


1 x AURA RGB header


1 x Clear CMOS header


1 x COM Port header


1 x Front Panel Audio header (AAFP)


1 x M.2 slot (Key E)


1 x S/PDIF Out header


1 x SPI TPM header (14-1pin)


1 x 20-3 pin System Panel header with Chassis intrude function


1 x Thunderboltô header


Special Features
ASUS 5X PROTECTION III


- DIGI+ VRM (- Digital power design with DrMOS)


- LANGuard


- Overvoltage Protection


- SafeSlot


- Stainless-Steel Back I/O


ASUS Q-Design


- Q-DIMM


- Q-Slot


ASUS Thermal Solution


- VRM heatsink design


ASUS EZ DIY


- ProCool


AURA Sync


- AURA RGB header


- Addressable Gen 2 headers


Software Features
ASUS Exclusive Software


Armoury Crate


- AURA Sync


- Fan Xpert 4


AI Suite 3


-Performance And Power Saving Utility


TurboV EVO


EPU


DIGI+ VRM


ASUS CPU-Z


Norton Anti-virus software (Free Trial version)


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode


BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS


Manageability
WOL by PME, PXE


Accessories
Cables


2 x SATA 6Gb/s cables


Miscellaneous


1 x I/O Shield


2 x M.2 SSD screw packages


Installation Media


1 x Support DVD


Documentation


1 x User guide


Operating System
WindowsÆ 11 64-bit, WindowsÆ 10 64-bit


Form Factor
mATX Form Factor


9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)


Dimension


Product (mm)_ L*W*H
244mm*244mm*40mm


Color Box (mm)_ L*W*H
275mm*266.5mm*67.5mm


Weight


Motherboard only
0.8251 Kg


Full package
0.9736 Kg




*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
