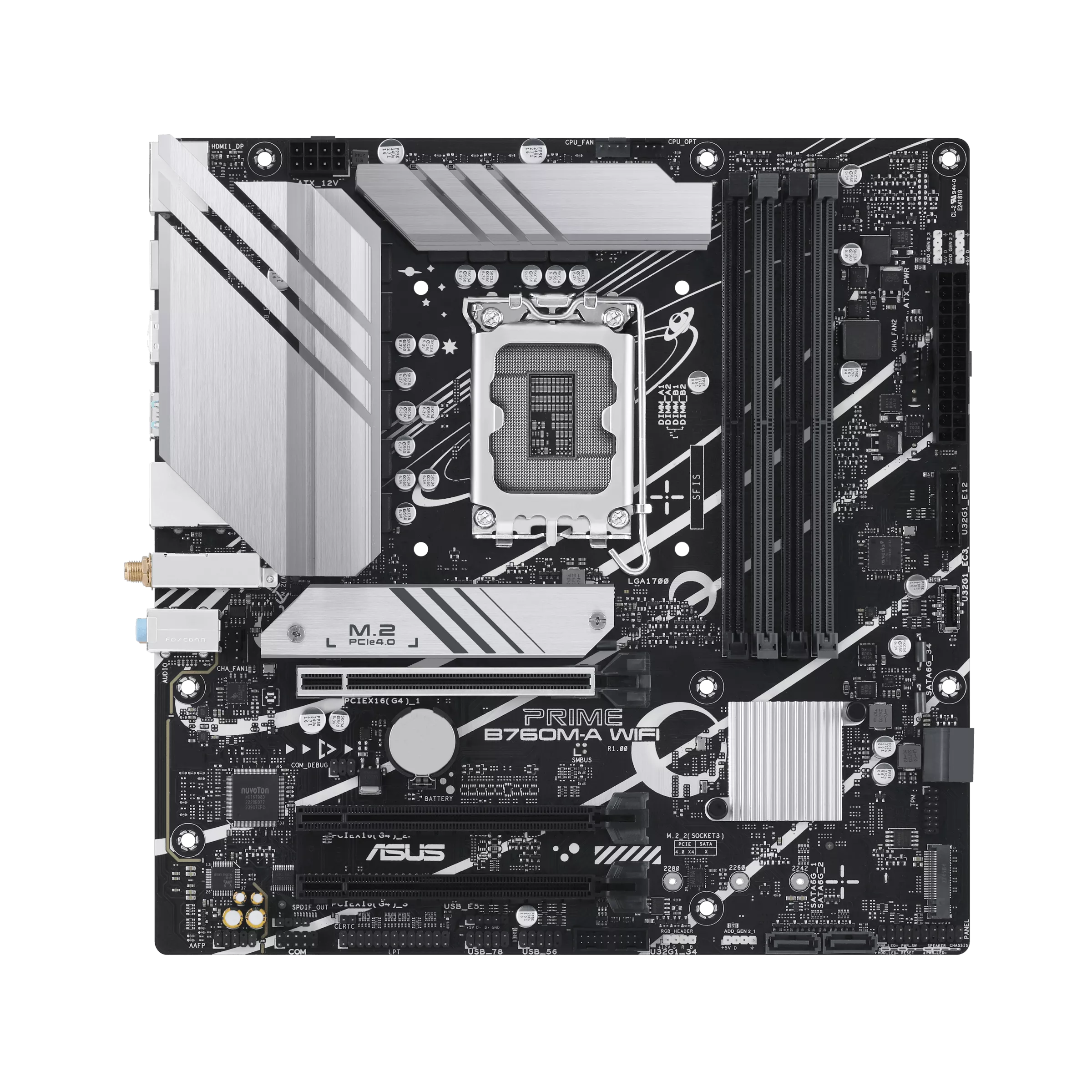

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Technical Details:
Platform
INTEL
Socket
LGA1700
CPU Type
13th Gen, 12th Gen
Chipset
B760
Memory Speed
up to 7200+
Max Memory Support
128 GB
Supported Memory Type
DDR5
Channel Supported
Dual Channel
Memory Feature
Supports Intel Extreme Memory Profile (XMP)OptiMem II
Graphics Port
1 x DisplayPort, 2 x HDMI ports
Expansion Slots
Intel 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x16 slot (supports x1 mode)
Wireless Networking
WiFi 6,Bluetooth 5.2
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort2 x HDMITM ports1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connector
Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports1 x USB 3.2 Gen 1 connector (supports USB Type-C)2 x USB 2.0 headers support 4 additional USB 2.0 ports1 x USB 2.0 header supports 1 additional USB 2.0 portMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function
