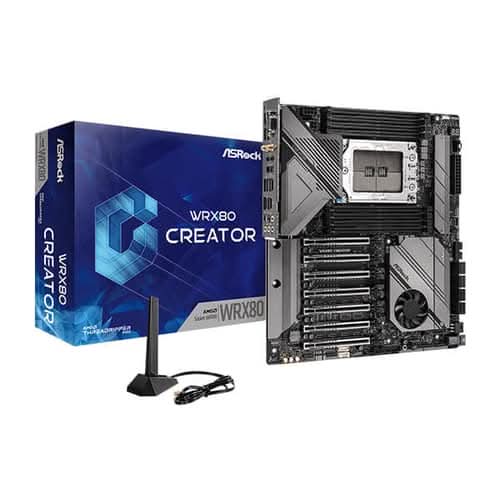

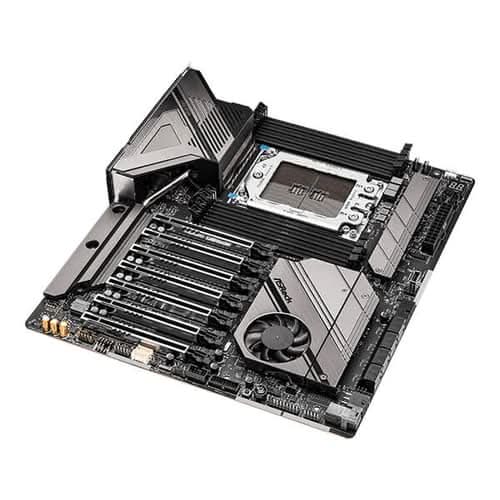

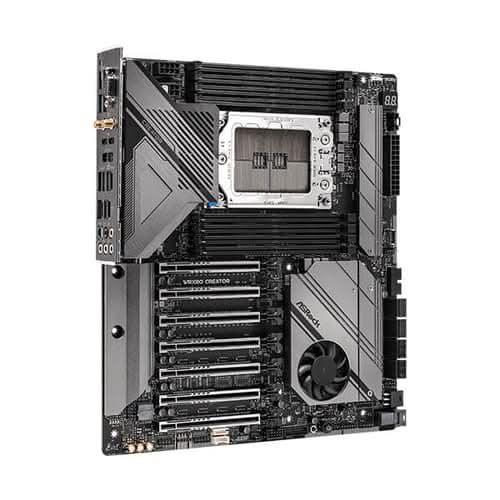

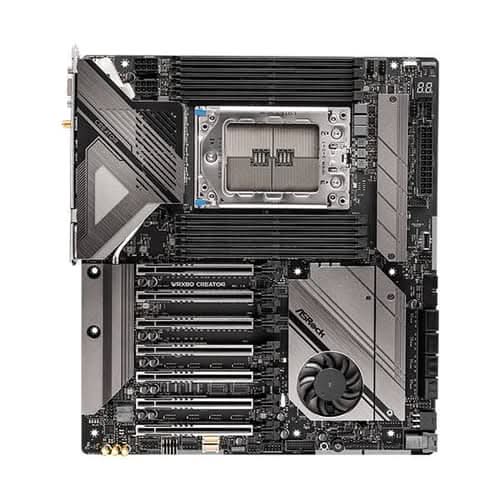

ASRock WRX80 Creator R2.0 WIFI Workstation Motherboard

Be the first to review this product

Special Price ₹68,685.00 Regular Price ₹90,000.00

Details

Features:

Supports AMD Ryzenâ„¢ Threadripperâ„¢ PRO 3000WX/5000WX Series Processors
8 Power Phase Design, 105A SPS
14 Layer Server-Grade Low-Loss PCB
Supports DDR4 4533+(OC)
7 PCIe 4.0 x16
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 U.2 (PCIe Gen3 x4)
2 Thunderboltâ„¢ 4 Type-C, 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio
Dual Marvell (Aquantia) 10Gbe LAN, 1 Dedicated IPMI LAN
IntelÂ® 802.11ax (WiFi 6E) + Bluetooth 5.3

Model	WRX80 Creator R2.0
Unique Feature	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium Power Choke - 105A Dr.MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Matte Black PCB - High Density Glass Fabric PCB - 14 Layer PCB - 2oz Copper PCB Server-Grade Low-Loss PCB Dual Marvell (Aquantia) 10GbE LAN 802.11ax Wi-Fi 6E ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	Supports AMD Socket sWRX8 for AMD Ryzenâ„¢ Threadripperâ„¢ PRO 5000WX and 3000WX Series Processors Intersil Digital PWM 8 Power Phase design Supports ASRock Hyper BCLK Engine III
Chipset	AMD WRX80
Memory	Eight Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 ECC & non-ECC, buffered and un-buffered memory (U-DIMM) up to 4400+(OC) Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, buffered and un-buffered memory (R-DIMM and 3DS R-DIMM) Max. capacity of system memory: 2048 GB 15Î¼ Gold Contact in DIMM Slots
BIOS	256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics	Aspeed AST2500 BMC Controller Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Audio	7.1 CH HD Audio (Realtek ALC4050H+ALC1220) Premium Blu-ray Audio support Supports Surge Protection NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) Pure Power-In Direct Drive Technology PCB Isolate Shielding Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Gold Audio Jacks 15Î¼ Gold Audio Connector Nahimic Audio
LAN	2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS) Support Wake-On-LAN Supports PXE 1 x Dedicated IPMI (ASPEED AST2500) Supports iKVM and vMedia
Wireless LAN	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth + High speed class II Supports MU-MIMO
Slots	CPU: 7 x PCIe 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8) Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD 4-Way CrossFireXâ„¢, 3-Way CrossFireXâ„¢ and CrossFireXâ„¢ 15Î¼ Gold Contact in VGA PCIe Slots (PCIE1, PCIE2,PCIE3, PCIE5 and PCIE7)
Storage	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 8 x SATA3 6.0 Gb/s Connectors 1 x U.2 Connector
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	1 x SPI TPM Header - 1 x COM Port Header - 1 x Intelligent Platform Management Bus Header - 1 x PSU SMBus Header - 1 x BMC SMBus Header - 1 x Auxiliary Panel Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15Î¼ Gold Audio Connector) - 1 x Right Angle Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Non Maskable Interrupt Button Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button

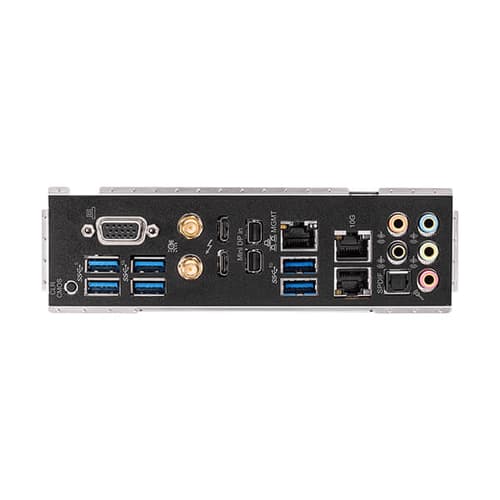

Rear Panel I/O	- 2 x Antenna Ports - 1 x D-Sub Port - 1 x Optical SPDIF Out Port - 2 x USB 4.0 Thunderboltâ„¢ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderboltâ„¢ protocol) (Supports ESD Protection) - 2 x Mini DisplayPort Input Ports(For Thunderbolt) - 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Instant Flash
Accessories	Quick Installation Guide 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
Hardware Monitor	Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V
Form Factor	EATX Form Factor: 12.0-in x 10.7-in, 30.5 cm x 27.2 cm 14 Layer PCB 2oz Copper PCB
OS	MicrosoftÂ® WindowsÂ® 10 64-bit / 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready
Warranty	3 Years
