Supports AMD Ryzen„ Threadripper„ PRO 7000 and AMD Ryzen„ Threadripper„ 7000 Series Processors
18 3 3 Power Phase Design, 110A SPS for VCore
Supports 4 DIMMs DDR5 ECC Registered memory
3 PCIe 5.0 x16, 2 PCIe 4.0 x16
Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
Unique Feature
Superb Productivity €“ PCIe Gen5 (Graphics, M.2) €“ Quad Channel DDR5 Rock-Solid Durability €“ Ultra Low-Loss PCB €“ 18+3+3 Power Phase, 110A SPS for VCore €“ Pre-Installed I/O Shield €“ 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity €“ 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update €“ BIOS Flashback Button €“ ASRock Auto Driver Installer
CPU
€“ Supports AMD Ryzen„ Threadripper„ PRO 7000 and AMD Ryzen„ Threadripper„ 7000 Series Processors €“ Supports AMD Socket sTR5 €“ Supports ASRock Hyper BCLK Engine
Chipset
AMD TRX50
Memory
€“ Quad Channel DDR5 Memory Technology €“ 4 x DDR5 DIMM Slots €“ Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) €“ Max. capacity of system memory: 1TB
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
N/a
Audio
€“ 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) €“ Impedance Sensing on Rear Out port €“ Individual PCB Layers for R/L Audio Channel €“ Nahimic Audio
LAN
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) €“ Support Wake-On-LAN €“ Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) €“ Supports Dragon 2.5G LAN Software €“ Smart Auto Adjust Bandwidth Control €“ Visual User Friendly UI €“ Visual Network Usage Statistics €“ Optimized Default Setting for Game, Browser, and Streaming Modes €“ User Customized Priority Control
Wireless LAN
€“ 802.11ax Wi-Fi 6E Module €“ Supports IEEE 802.11a/b/g/n/ac/ax €“ Supports Dual-Band 2×2 with extended 6GHz band support* €“ 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology €“ Supports Bluetooth 5.2 + High speed class II €“ Supports MU-MIMO
Slots
CPU: €“ 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* €“ 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* €“ 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: €“ 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module €“ 15μ Gold Contact in VGA PCIe Slots
Storage
CPU: €“ 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* €“ 1 x MCIO PCIe Gen5x4 Connector €“ 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: €“ 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* €“ 4 x SATA3 6.0 Gb/s Connectors
RAID
€“ Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices €“ Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB
CPU: €“ 1 x USB 3.2 Gen2x2 Type-C (Rear) €“ 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: €“ 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) €“ 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) €“ 4 x USB 2.0 (Front)
Connector
€“ 2 x Thermistor Cable Headers €“ 1 x SPI TPM Header €“ 1 x COM Port Header €“ 1 x Chassis Intrusion and Speaker Header €“ 2 x Addressable LED Headers* €“ 1 x CPU Fan Connector (4-pin)** €“ 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** €“ 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** €“ 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) €“ 1 x 3 pin ATX Power Connector***** €“ 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** €“ 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** €“ 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)******* €“ 1 x Front Panel Audio Connector (15μ Gold Audio Connector) €“ 1 x Thunderbolt„ AIC Connector (5-pin) (Supports ASRock Thunderbolt„ 4 AIC Card) €“ 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) €“ 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) €“ 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) €“ 1 x Dr. Debug with LED €“ 1 x Power Button with LED €“ 1 x Reset Button with LED

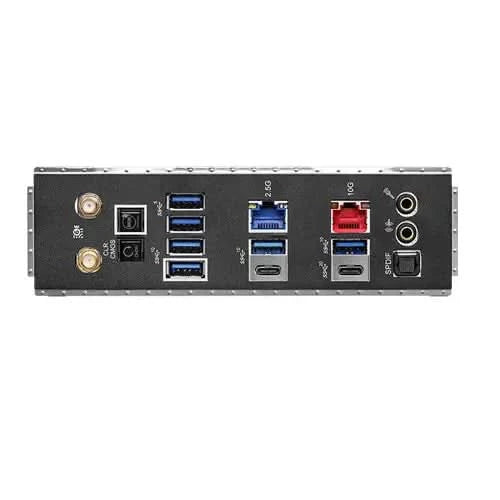

Rear Panel I/O
€“ 2 x Antenna Ports €“ 1 x Optical SPDIF Out Port €“ 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) €“ 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) €“ 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) €“ 2 x USB 3.2 Gen1 Type-A Ports €“ 2 x RJ-45 LAN Ports €“ 1 x Clear CMOS Button €“ 1 x BIOS Flashback Button €“ 1 x Line Out Jack (Gold Audio Jack) €“ 1 x Microphone Input Jack (Gold Audio Jack)
Software & UEFI
Software €“ ASRock Motherboard Utility (A-Tuning) €“ ASRock Dragon 2.5G LAN Software €“ ASRock Polychrome SYNC* UEFI €“ ASRock Full HD UEFI €“ ASRock Auto Driver Installer €“ ASRock Instant Flash
Accessories
€“ 1 x User Manual €“ 4 x SATA Data Cables €“ 1 x ASRock WiFi 2.4/5/6 GHz Antenna €“ 2 x Thermistor Cables €“ 1 x Multi PSU Adaptor Cable €“ 2 x Screws for M.2 Sockets €“ 2 x Standoffs for M.2 Sockets
Form Factor
€“ EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm €“ 12 Layer PCB €“ 2oz Copper PCB
OS
Microsoft® Windows® 11 64-bit
Certifications
€“ FCC, CE €“ ErP/EuP ready (ErP/EuP ready power supply is required)
