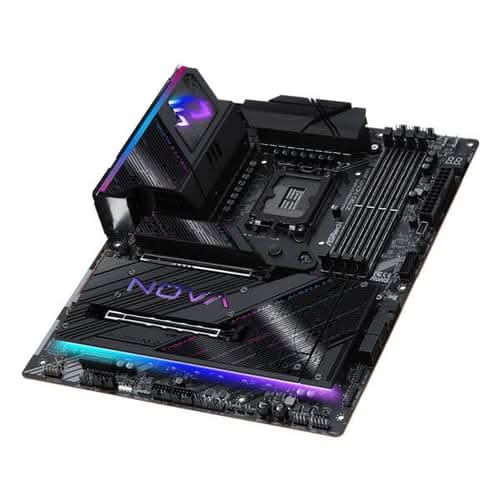

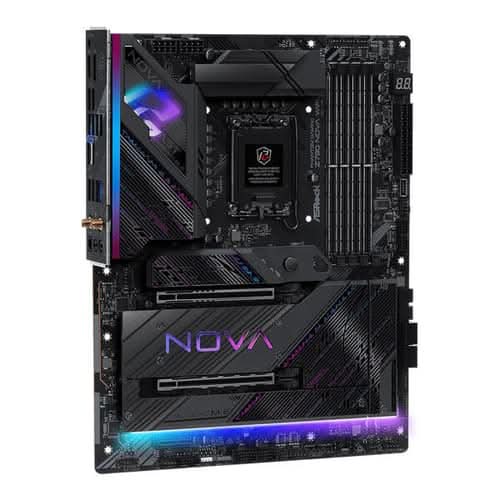

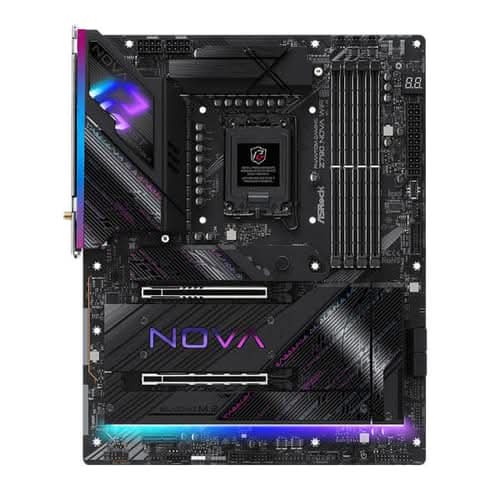

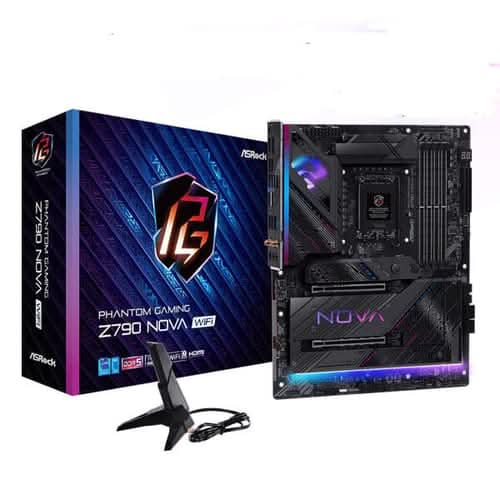

ASRock Phantom Gaming Z790 Nova ATX WiFi Motherboard

Be the first to review this product

Special Price ₹30,600.00 Regular Price ₹40,000.00

Details

Features:

Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
20+1+1 Power Phase, SPS for VCore+GT, 8-Layer 2OZ PCB
4 x DDR5 DIMMs, supports up to 8000+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),4 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
Intel® Killer 2.5G LAN
802.11be WiFi 7 + Bluetooth
Supports Graphics Card Holder, Toolless Multi-Layer M.2 Heatsink

Platform	INTEL
Socket	LGA1700
Cpu Type	14th Gen, 13th Gen, 12th Gen
Chipset	Z790
Memory Speed	up to 8000+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP) 3.0
Graphics Port	1 x HDMI,1 x DisplayPort
Expansion Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 3.0 x1 Slot (PCIE3)* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire - 15Î¼ Gold Contact in VGA PCIe Slot (PCIE1)
Wireless Networking	Wi-Fi 7,Bluetooth v5.4
Back Panel I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 3 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack)
Internal I/O Connector	3 x Thermistor Cable Headers 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x VRM Fan Connector (4-pin) (Smart Fan Speed Control)**** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15Î¼ Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED
Form Factor	ATX
Warranty	3 Years
