Power Capacity: 1000VA / 670W – ideal for servers, switches, routers, and POS systems.
Battery Backup: 2 x 11Ah built-in batteries; 6 minutes at full load, 20.6 minutes at 50% load.
Efficiency: Up to 96% – reduces energy consumption and heat generation.
Output: Pure sine wave at 230V; 50/60 Hz auto-sensing frequency.
Input Voltage Range: 160–285V (standard), 151–302V (adjustable).
Connectivity: USB, RS-232 serial port, and SmartSlot for optional network cards.
Display: LED status indicators with load and battery bar graphs.
Surge Protection: 320 Joules; full-time multi-pole noise filtering.
Software: PowerChute Business Edition – supports Microsoft Exchange, SQL Server, IIS, and more.
Form Factor: Compact design with sleek dimensions for optimal space utilization.
Certifications: BIS, CE, EN50091, IEC60950, RoHS compliant.
Warranty: 1-year warranty.
Â
Â
Â
| Category | Specification |
|---|---|
| Overview | |
| Lead Time | Usually in Stock |
| Main | |
| Product Type | Uninterruptible Power Supply (UPS) |
| Run Time for Load | 670 W |
| Min–Max Load Range | 67–670 W |
| Runtime (Full Load) | 6 minutes 5 seconds |
| Max Capacity Used | 100% |
| Configurable Output Voltage | 220 V / 230 V / 240 V |
| Complementary | |
| Communication Port Type | SmartSlot |
| Batteries & Runtime | |
| Battery Type | Lead-acid battery |
| Extended Runtime | No |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| Battery Recharge Time | 3 hours |
| Battery Replacement Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | RBC6 |
| Battery Charger Power | 88 W rated |
| General | |
| Provided Equipment | CD with software, RS-232 cable, USB cable, User manual |
| Power Module Count | 0 |
| Redundant | No |
| Physical | |
| Height | 21.6 cm |
| Width | 17 cm |
| Depth | 43.9 cm |
| Product Weight | 18.86 kg |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two-Post Mountable | 0 |
| USB Compatible | No |
| Input | |
| Main Input Voltage | 230 V |
| Input Voltage Limits | 151–302 V (adjustable) |
| Network Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Plug Standard | — |
| Output | |
| Main Output Voltage | 230 V |
| Output Voltage Range | 220 V / 230 V / 240 V configurable |
| Rated Power (W / VA) | 670 W / 1000 VA |

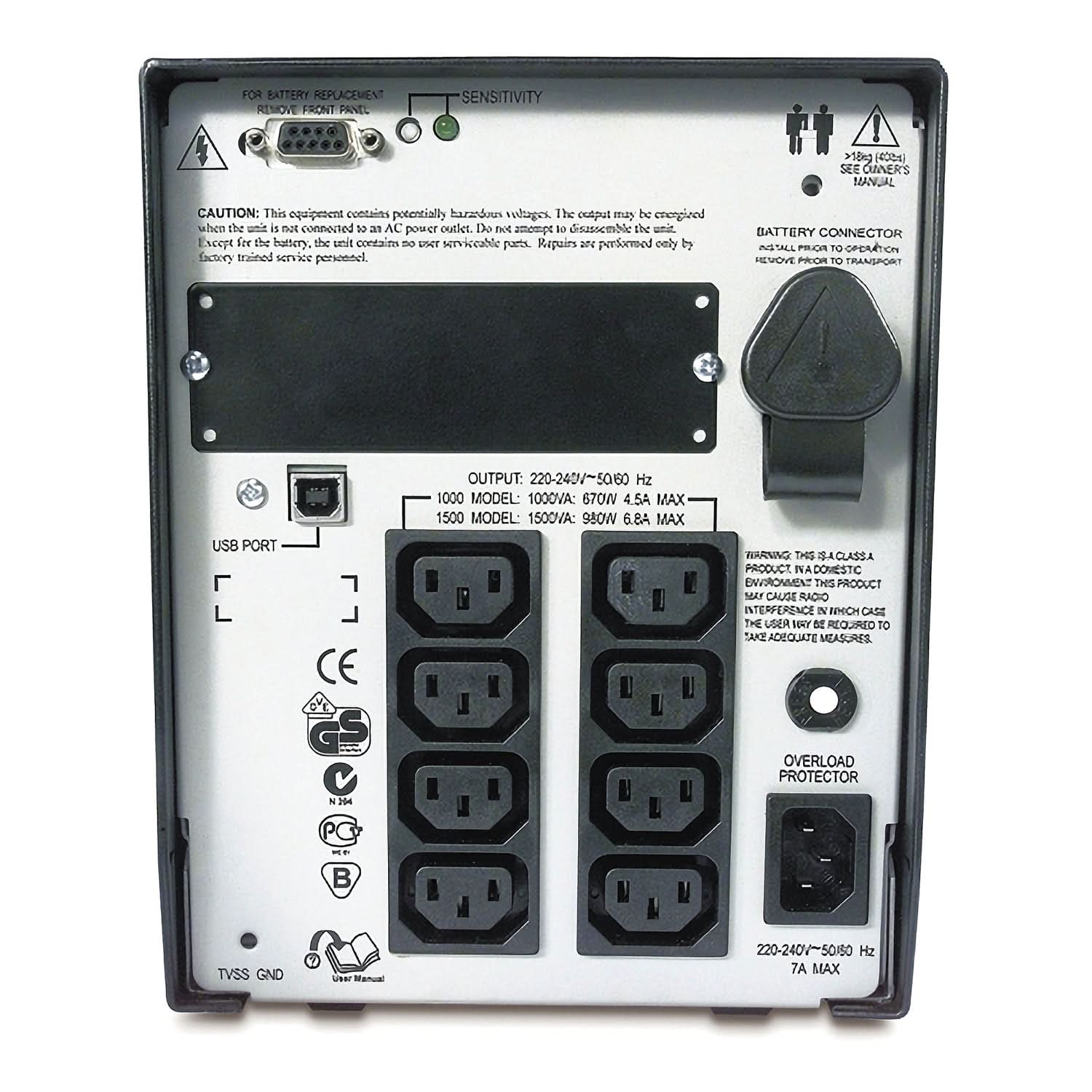

| Output Connection Type | 8x IEC 320 C13, 2x IEC Jumpers |
| Harmonic Distortion | < 5% |
| Max Configurable Power (W / VA) | 670 W / 1000 VA |
| UPS Type | Line Interactive |
| Output Frequency | 47–53 Hz (for 50 Hz sync) / 57–63 Hz (for 60 Hz sync) |
| Environmental | |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -15–45 °C |
| Relative Humidity (Operation/Storage) | 0–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–15,240 m |
| Acoustic Level | 41 dBA |
| Heat Dissipation | 100 BTU/h |
| Communications & Management | |
| Control Panel | LED status (on-line, on-battery, replace battery, overload) |
| Alarm | On battery, low battery (distinctive tone), configurable delay |
| Surge Protection & Filtering | |
| Surge Energy Rating | 320 J |
| Noise Suppression | Full-time multi-pole filtering, 0.3% IEEE let-through, zero clamping, UL 1449 |
| Packing Units | |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H x W x L) | 38.1 cm x 58.4 cm x 33 cm |
| Package Weight | 20.91 kg |
| Warranty | |
| Contractual Warranty | 1 year repair or replace |
| Featured | Yes |
|---|---|
| brand | APC |
