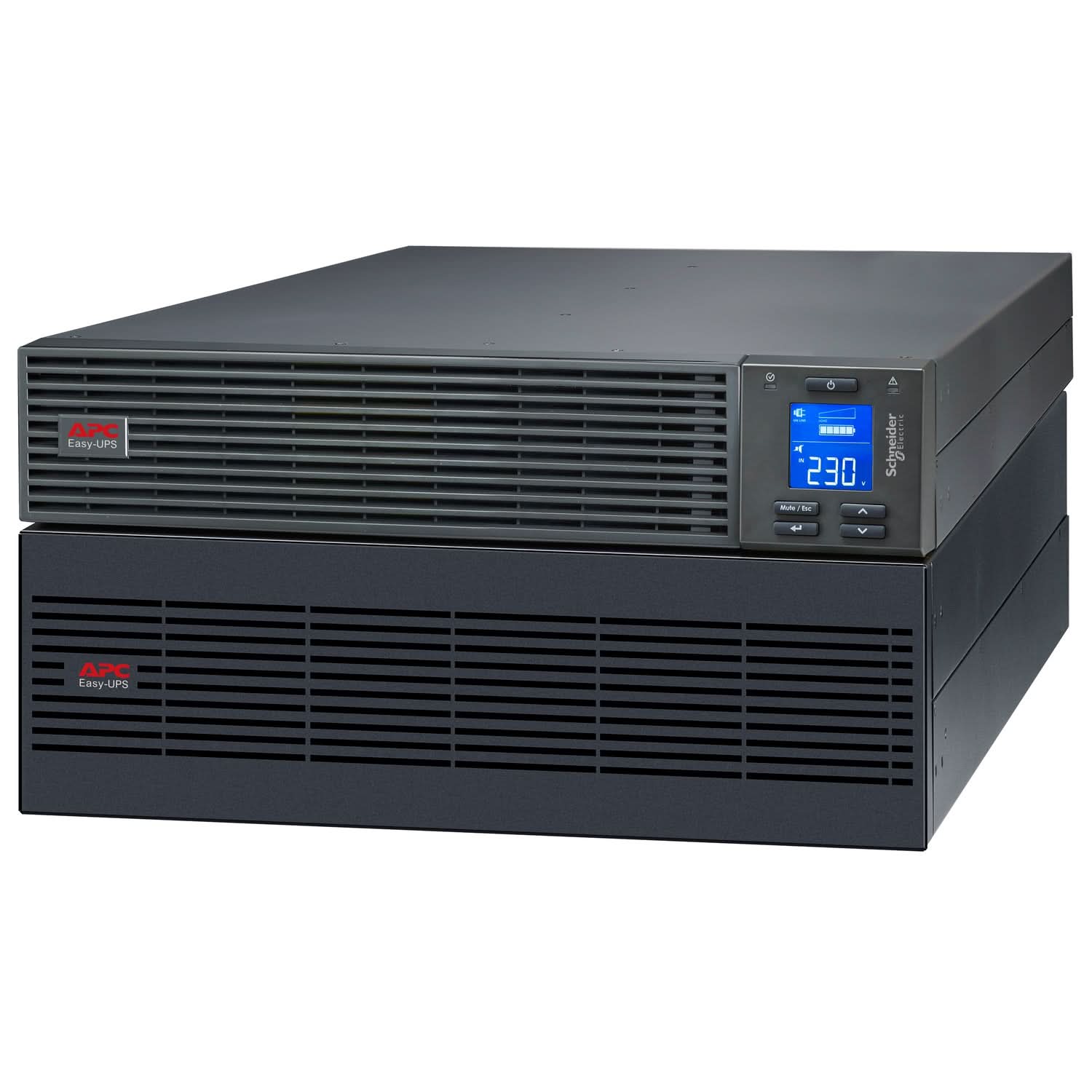

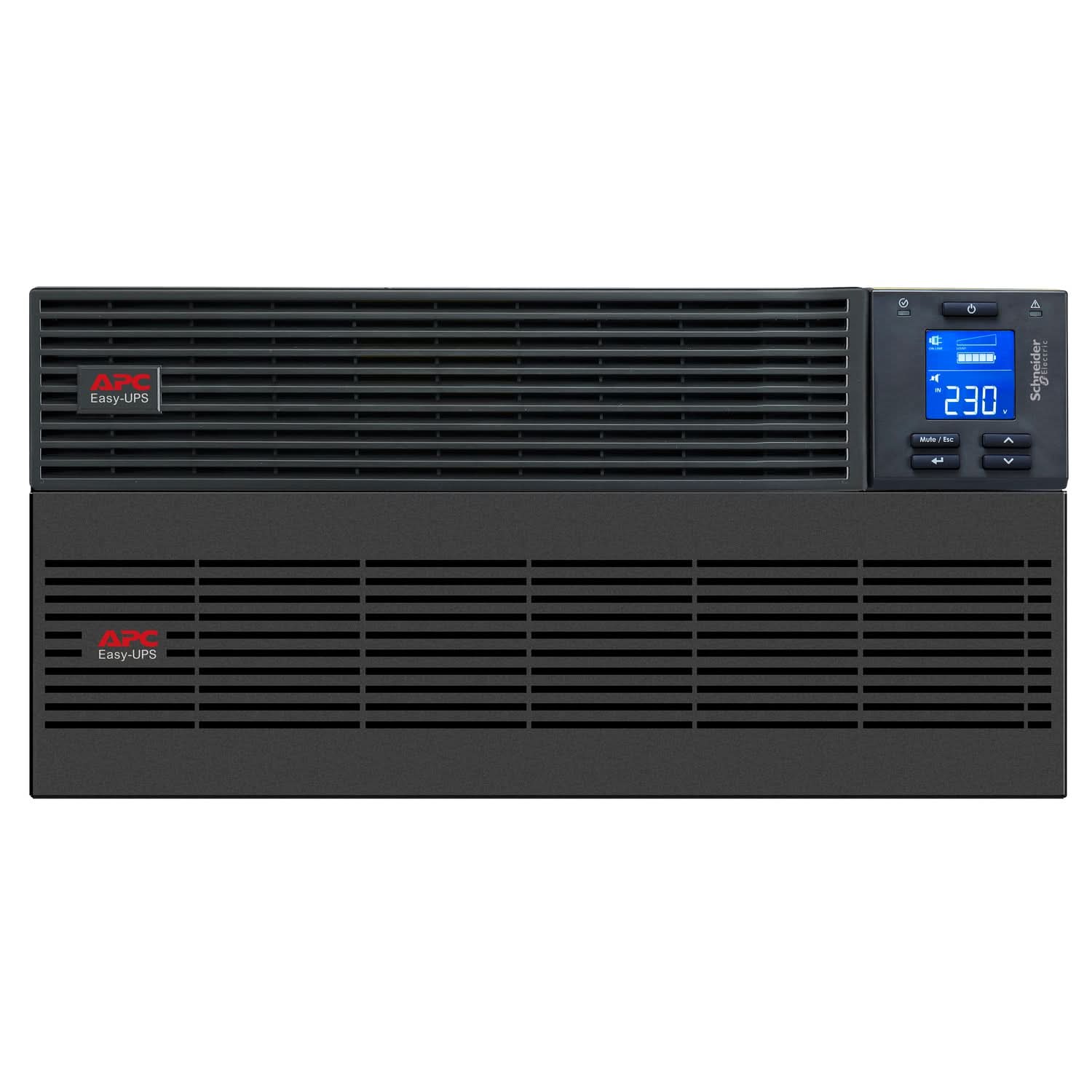

APC EASY UPS ON-LINE SRV10KRIL-IN - 10KVA/10KW| 230V | RACKMOUNT 5U | HARD WIRE 3-WIRE(1P+N+E) OUTLET | INTELLIGENT CARD SLOT | VISUAL LCD AND AUDIBLE ALARMS | EXTENDED RUNTIME, W/O RAIL KIT | 2 YEARS WARRANTY

About the item



• High-Performance Double-Conversion: 10kVA/10kW (Unity Power Factor) On-Line UPS delivers premium, uninterrupted, and pure sine wave power for critical IT, data centers, healthcare, and industrial applications.
• Exceptional Energy Savings: Achieves up to 94% efficiency in online mode and 97% in ECO mode, significantly reducing energy consumption and associated cooling costs.

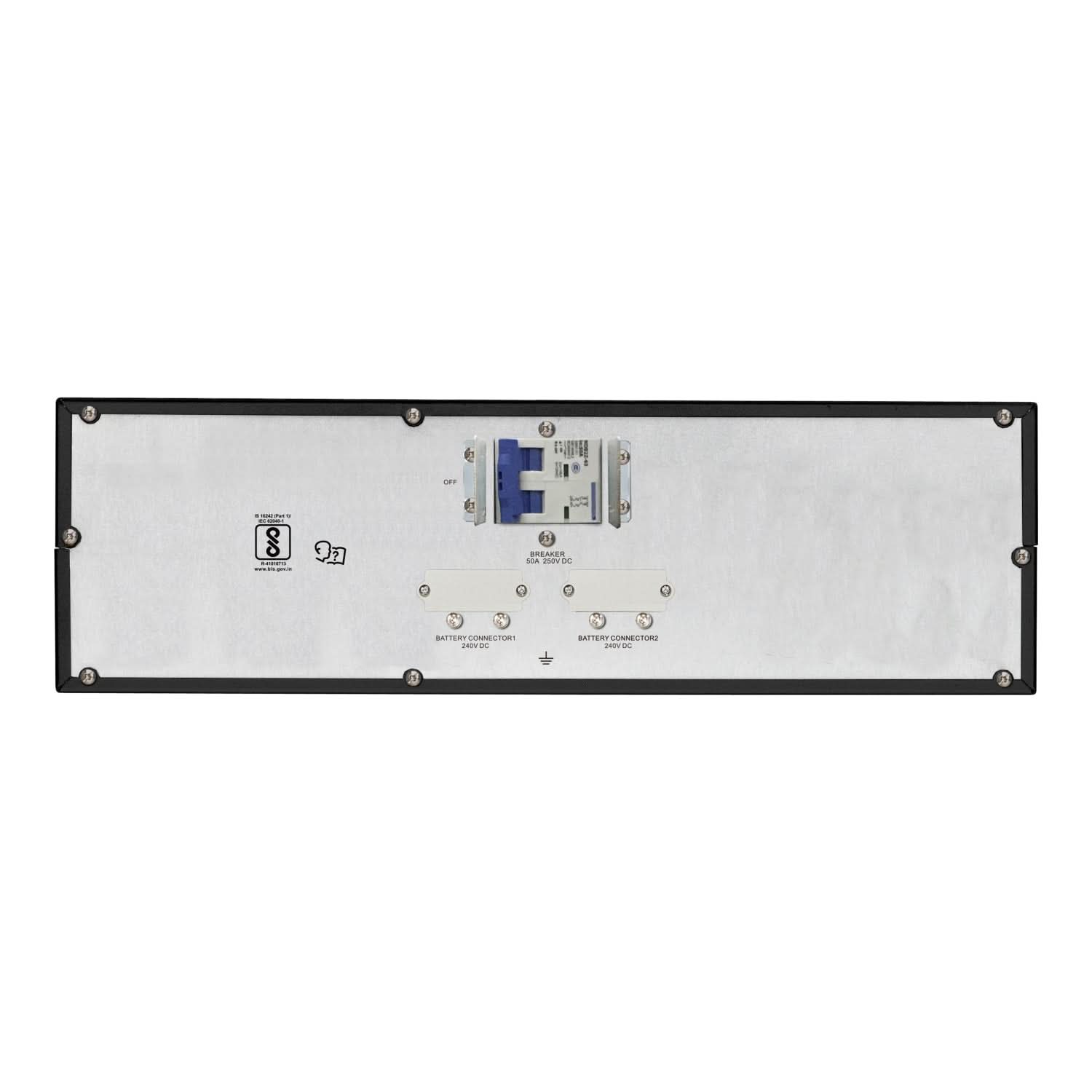

• Extended Runtime Capability: Supports external battery packs (SRV240RBP-9A) for customizable, extended backup durations, ensuring critical business continuity.
• Wide Voltage Tolerance: Operates reliably across a wide input voltage range (176-300V at full load), making it ideal for unstable power environments prevalent in India.
• Rackmount Design: Space-saving Rackmount 5U form factor (438 x 86 x 615 mm for power module) integrates seamlessly into existing IT infrastructure.
• Comprehensive Management: Features a multi-function LCD display, USB and RS-232 ports, plus an Intelligent Slot for optional network management cards for advanced monitoring and control.
• Enhanced Safety & Reliability: Includes Hardwire outlet connectivity, Emergency Power Off (EPO) functionality, and is generator compatible for maximum uptime and safety.
• BIS Certified Quality: BIS certified for safety and quality assurance, ensuring dependable performance.
• 2-Year Warranty: Backed by a comprehensive manufacturer's 2-year repair or replace warranty for long-term peace of mind.







Key Features:

• Power Capacity: 10,000 VA / 10,000 W with unity power factor – supports high-density IT loads.

• Topology: True double-conversion online UPS – delivers clean, consistent power.

• Efficiency: Up to 94% in online mode, 97% in ECO mode – reduces energy and cooling costs.

• Input Voltage Range: 176–300V (full load), 110–300V (half load) – ideal for Indian power conditions.

• Output Voltage: 230V (user-selectable 220V/240V) with pure sine wave output.

• Battery Support: External battery pack compatible (SRV240RBP-9A); 2-minute runtime at full load, 8 minutes at half load.

• Recharge Time: 4 hours to 90% capacity.

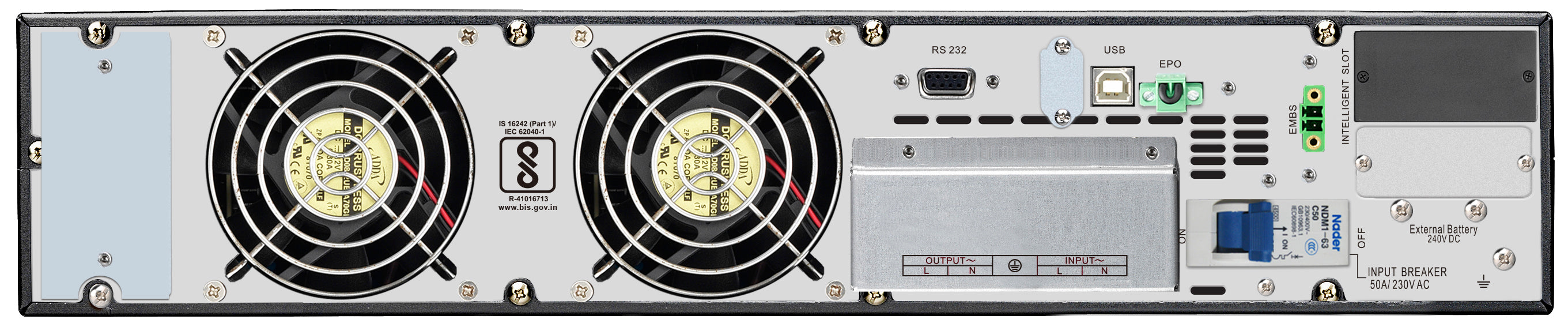

• Connectivity: USB, RS-232, and intelligent slot for optional network management.

• Display: Multi-function LCD with LED indicators for real-time monitoring.

• Safety: Emergency Power Off (EPO) support with NC contacts.

• Design: Rack-mountable (5U); dimensions: 438 x 86 x 615 mm (power module), 438 x 133 x 606 mm (battery pack).

• Weight: 16 kg (power module), 63 kg (battery pack).

• Environment: Operates at 0–40°C, <60 dBA noise, IP20 protection.

• Certifications: BIS, CE, IEC 62040-1, IEC 62040-2.

• Warranty: 2 years repair or replace.
