The APC Back-UPS BX1000UXI is a powerful and flexible uninterruptible power supply designed to deliver long backup times and reliable protection for your IT and electronic equipment. With a capacity of 1000VA/600W, this UPS is ideal for homes, small offices, and areas with frequent power fluctuations.
Built by Schneider Electric, the BX1000UXI supports both SMF and tubular batteries, giving users the freedom to connect batteries of any size. Its selectable charging current (5A/10A/15A/20A) ensures optimal charging performance based on the battery type and capacity. The UPS features 4 Indian output sockets, a separate charging LED, and a resettable circuit breaker for added safety and convenience.
Thanks to its wide input voltage window (140V€“300V) and genset compatibility (40Hz€“70Hz), the BX1000UXI is perfectly suited for challenging power environments. It delivers a stepped sinewave output and has a fast transfer time of 4€“10 ms, ensuring your devices stay protected and operational during outages. With a 2-year warranty, this UPS offers dependable performance and peace of mind.
Key Features:
Power Capacity: 1000VA / 600W €“ ideal for home and office electronics.
Battery Compatibility: Supports SMF and tubular batteries (external, not included).
Selectable Charging Current: 5A, 10A, 15A, or 20A €“ connect any size battery.
Wide Input Voltage Range: Operates from 140V to 300V €“ perfect for low-voltage areas.
Genset Compatible: Works with generators across a 40Hz€“70Hz frequency range.
Fast Transfer Time: 4€“10 ms typical, 15 ms max €“ ensures minimal disruption.
Output Voltage: 230V stepped sinewave output for stable power delivery.

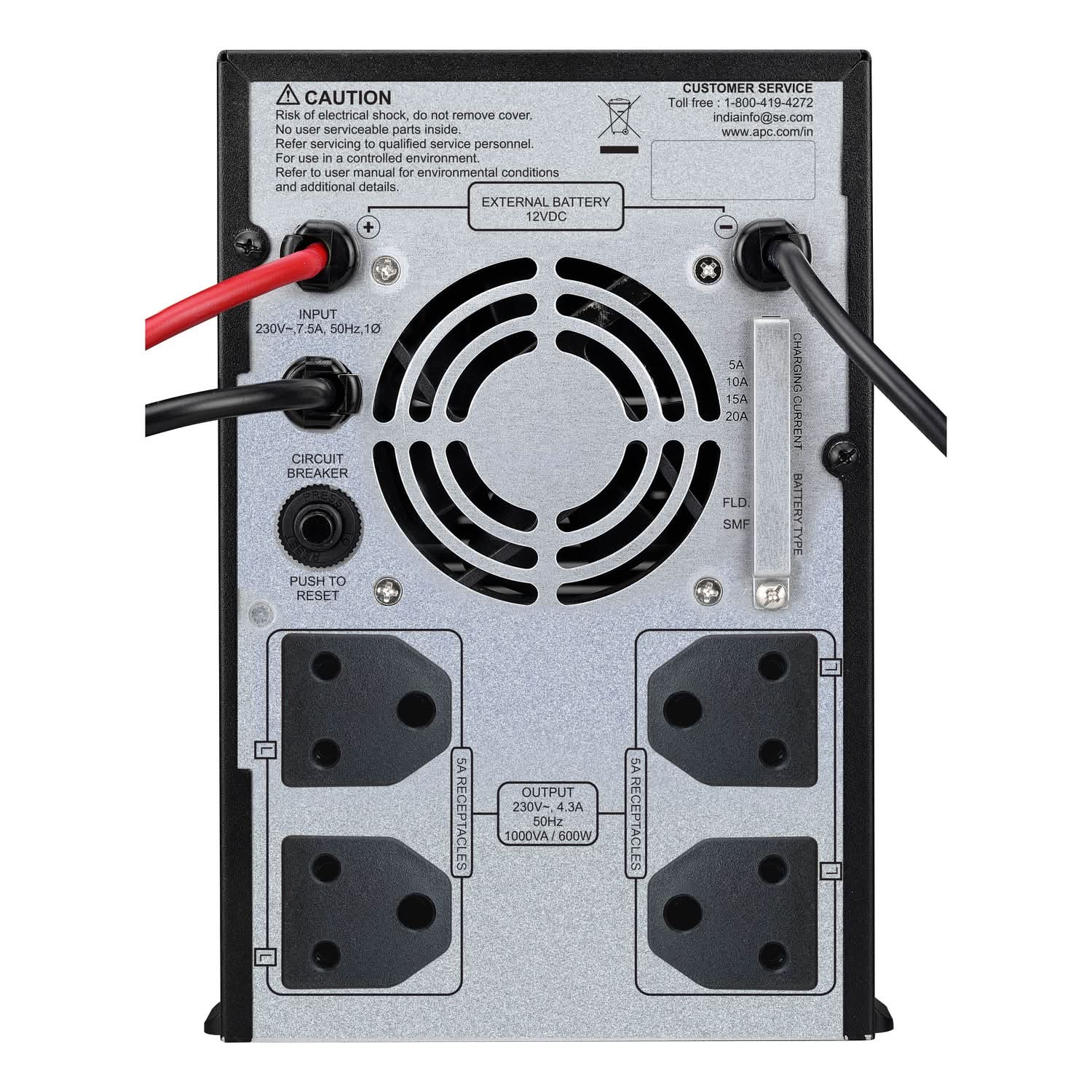

User-Friendly Design: 4 Indian output sockets and separate charging LED.
Safety Features: Resettable circuit breaker for overload protection.
Compact & Durable: Dimensions €“ 392 x 145 x 220 mm; Weight €“ 9.3 kg.
Environmental Tolerance: Operates in 0€“40°C with up to 95% non-condensing humidity.
Warranty: 2-year manufacturer warranty for reliable support.
Specifications
Category
Specification
Lead Time
Usually in Stock
Product Type
Uninterruptible Power Supply (UPS)
Range of Product
Back-UPS
Main Input Voltage
230 V
Main Output Voltage
230 V
Rated Power (W)
600 W
Rated Power (VA)
1000 VA
Maximum Configurable Power (W)
600 W
Maximum Configurable Power (VA)
1000 VA
Output Frequency
50 Hz ± 1 Hz (unsynchronized)
UPS Type
Square
Waveform
Stepped approximation to a sinewave
Efficiency (Full Load)
92%
Transfer Time
8 ms typical / 12 ms max
Output Connection Type
4x India 3-pin 6A
Cable Length
1.5 m
Battery Type
External battery system
Battery Voltage
12 V
Battery Charger Power
288 W rated
Extended Runtime
0
Battery Filled Slots
0
Battery Free Slots
0
Power Module Free Slots
0
Power Module Filled Slots
0
Redundant
No
Plug Standard
India 3-pin 6A
Input Voltage Limits
140€“300 V
Network Frequency
40€“70 Hz auto sensing
Colour
Black
Height
22 cm
Width
14.5 cm
Depth
39.2 cm
Product Weight
9.3 kg
Mounting Preference
No preference
Mounting Mode
Not rack-mountable
Two-Post Mountable
0
USB Compatible
No
Operating Temperature
0€“40 °C
Operating Humidity
0€“95% non-condensing
Operating Altitude
0€“3000 ft
Storage Temperature
0€“45 °C
Storage Humidity
0€“95% non-condensing
Storage Altitude
0€“3048 m
Acoustic Noise Level
50 dBA
IP Protection Rating
IP20
Control Panel
LED status display with online / battery indicators
