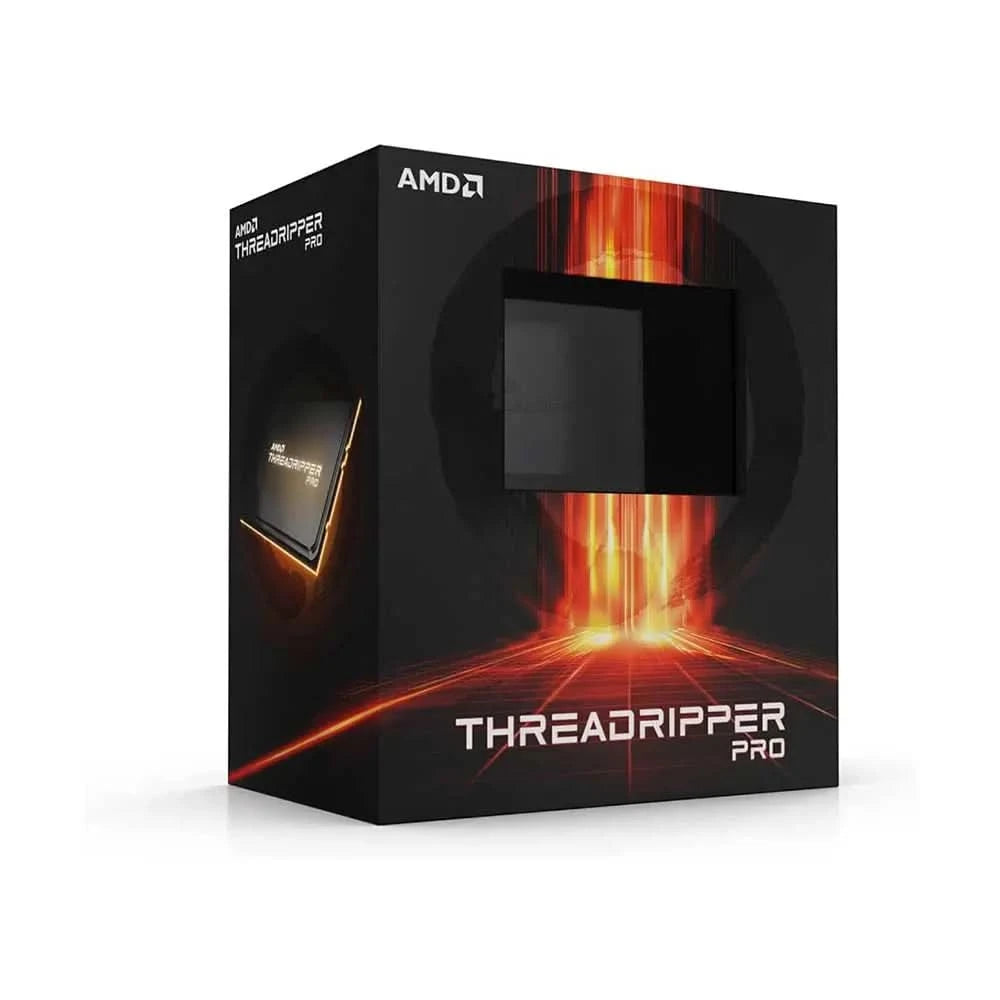

Amd Ryzen Threadripper pro 7955WX Desktop Processor Built for modern business, AMD PRO technologies provide layers of protection, seamless manageability, and reliable longevity.
| General Specifications | |
| Platform | Desktop |
| Product Family | AMD Ryzenâ„¢ PRO Processors |
| Product Line | AMD Ryzenâ„¢ Threadripperâ„¢ PRO 7000 WX-Series |
| AMD PRO Technologies | Yes |
| Commercial Use | Yes |
| Regional Availability | Global |
| Former Codename | “Storm Peak†|
| Architecture | “Zen 4†|
| # of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| # of Threads | 32 |
| Max. Boost Clock | Up to 5.3Ghz |
| Base Clock | 4.5Ghz |
| L1 Cache | 1MB |
| L2 Cache | 16MB |
| L3 Cache | 64MB |
| Default TDP | 350W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 388mm² |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPOâ„¢ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| CPU Socket | sTR5 |
| Supporting Chipsets | WRX90 TRX50 Pro 695 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not included |
| Thermal Solution (MPK) | NA |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | No |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native SATA Ports | 4 |
| PCI Express® Version | PCIe 5.0 |
| PCIe® Lanes (Total/Usable/PCIe® 5.0) | 148 / 144 / 128 |
| NVMe Support | Boot, RAID0, RAID1, RAID10, RAID5 |
| System Memory Type | DDR5 |
| Memory Channels | 8 |
| System Memory Subtype | RDIMM |
| System Memory Specification | Up to 5200MT/s |
| ECC Support | Yes (Default Enabled) |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| SB Type-C® DisplayPort™ Alternate Mode | N/A |
| Product ID Tray | 100-000000886 |
| Supported Technologies | AMD EXPOâ„¢ Technology AMD PRO technologies AMD Ryzenâ„¢ Technologies |
| Warranty | 1 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
