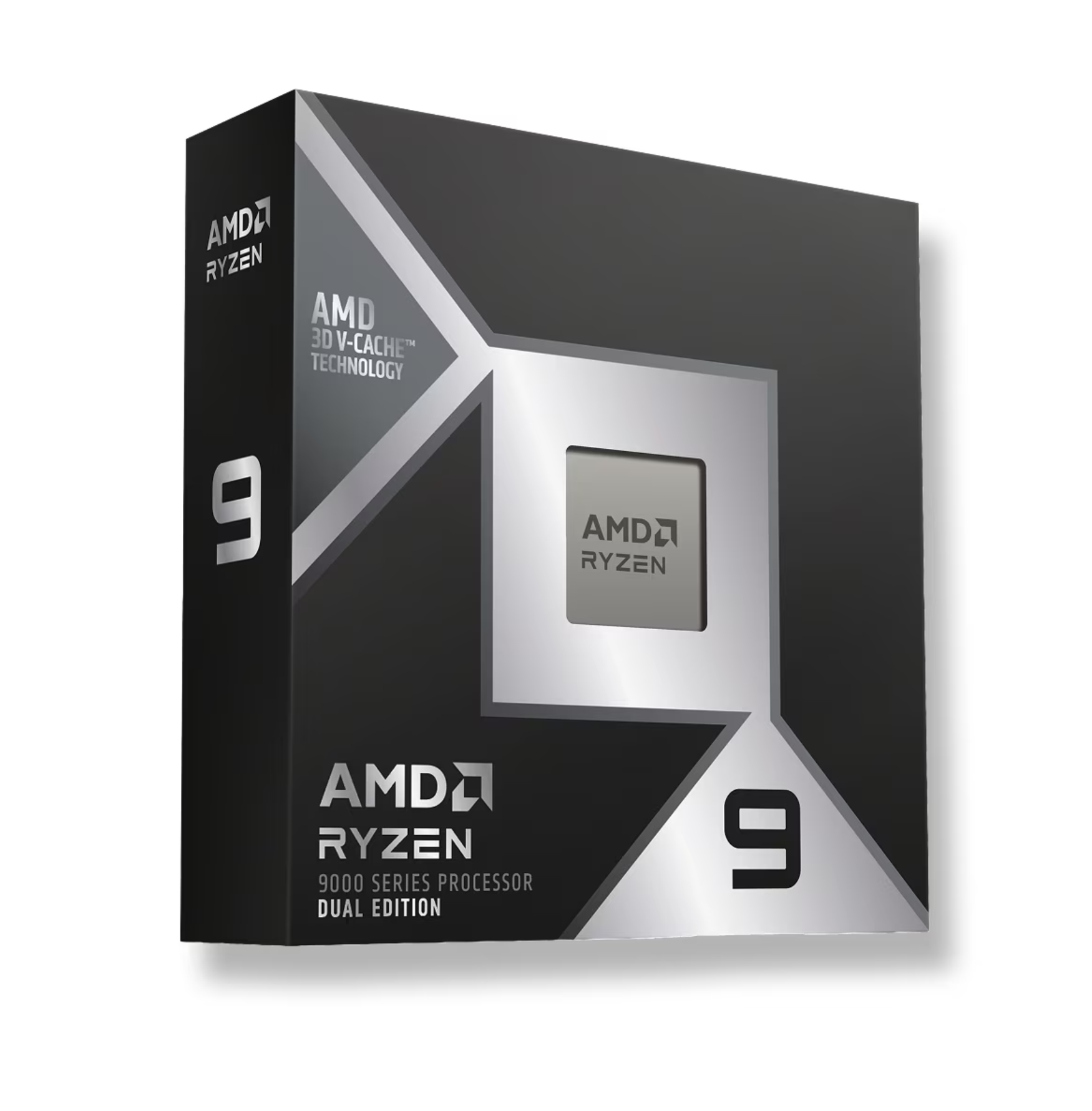

AMD Ryzen 9 9950X3D2 Dual Edition Desktop Processor

Specifications



Name
AMD Ryzen™ 9 9950X3D2 Dual Edition



Family

Ryzen



Series

Ryzen 9000 Series



Form Factor

Desktops , Boxed Processor



Market Segment

Enthusiast Desktop



Regional Availability

Global



Former Codename

Granite Ridge AM5



Processor Architecture

Zen 5



# of CPU Cores

16



Multithreading (SMT)

Yes



# of Threads

32



Max. Boost Clock

Up to 5.6 GHz



Base Clock

4.3 GHz



L1 Cache

1280 KB



L2 Cache

16 MB



L3 Cache

192 MB



Default TDP

200W



Processor Technology for CPU Cores

TSMC 4nm FinFET



Processor Technology for I/O Die

TSMC 6nm FinFET



Package Die Count

3



Unlocked for Overclocking

Yes



AMD EXPO™ Memory Overclocking Technology

Yes



Precision Boost Overdrive

Yes



Curve Optimizer Voltage Offsets

Yes



AMD Ryzen™ Master Support

Yes



CPU Socket

AM5



Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850



CPU Boost Technology

Precision Boost 2



Instruction Set

x86-64



Supported Extensions

AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64



Thermal Solution (PIB)

Not Included



Recommended Cooler

Liquid cooler recommended for optimal performance



Max. Operating Temperature (Tjmax)

95°C



*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit



Native USB 3.2 Gen 2 (10Gbps)

4



Native USB 2.0 (480Mbps)

1



PCI Express® Version

PCIe® 5.0



Native PCIe® Lanes (Total/Usable)

28 , 24



NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10



System Memory Type

DDR5



Memory Channels

2



Max. Memory

256 GB



System Memory Subtype

UDIMM



Max Memory Speed







2x1R



DDR5-5600




2x2R


DDR5-5600




4x1R


DDR5-3600




4x2R


DDR5-3600



ECC Support

Yes (Requires mobo support)



Product ID Boxed

100-100001978WOF



Product ID Tray

100-000001978
