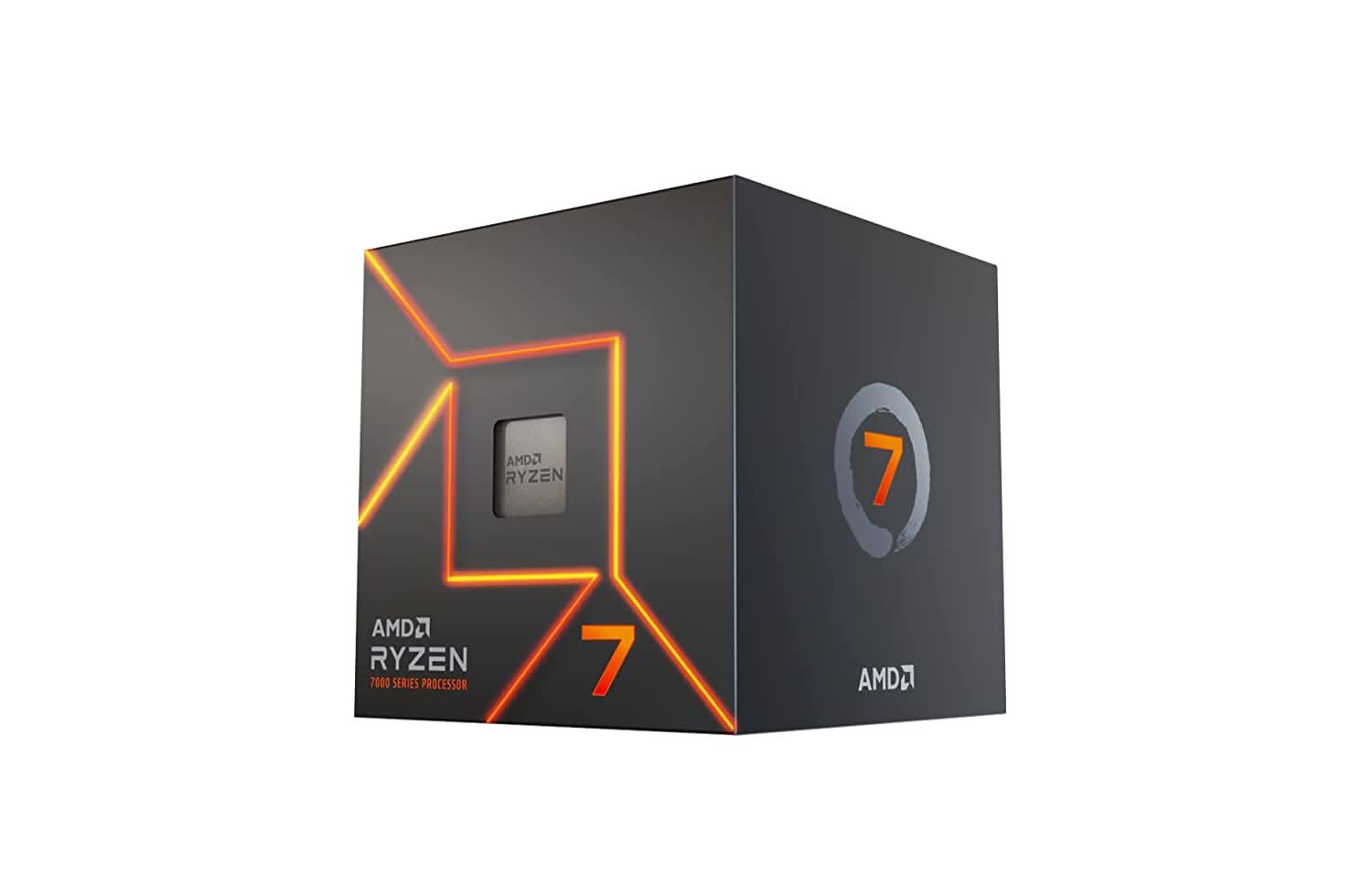

AMD RYZEN 7 7700 8 CORES UPTO 5.3 GHZ AM5 PROCESSOR

Model
RYZEN-7-7700


General Specifications


Platform
Desktop


Product Family
AMD Ryzen Processors


Market Segment
Enthusiast Desktop


Product Line
AMD Ryzen 7 Processors


AMD PRO Technologies
No


Consumer Use
Yes


Regional Availability
Global


Former Codename
"Raphael AM5"


Architecture
"Zen 4"


Multithreading (SMT)
Yes


# of CPU Cores
8


# of Threads
16


Max. Boost Clock
Up to 5.3GHz


Base Clock
3.8GHz


L1 Cache
512KB


L2 Cache
8MB


L3 Cache
32MB


Default TDP
65W


Processor Technology for CPU Cores
TSMC 5nm FinFET


Processor Technology for I/O Die
TSMC 6nm FinFET


CPU Compute Die (CCD) Size
71mm≤


I/O Die (IOD) Size
122mm≤


Package Die Count
2


Unlocked for Overclocking
Yes


AMD EXPOô Memory Overclocking Technology
Yes


Precision Boost Overdrive
Yes


Curve Optimizer Voltage Offsets
Yes


AMD Ryzenô Master Support
Yes


CPU Socket
AM5


Supporting Chipsets
X670E


X670


B650E


B650


CPU Boost Technology
Precision Boost 2


Instruction Set
x86-64


Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64


Thermal Solution (PIB)
AMD Wraith Prism


Max. Operating Temperature (Tjmax)
95∞C


*OS Support
Windows 11 - 64-Bit Edition


Windows 10 - 64-Bit Edition


RHEL x86 64-Bit


Ubuntu x86 64-Bit


*Operating System (OS) support will vary by manufacturer.


Connectivity


USB Type-CÆ Support
Yes


Native USB 3.2 Gen 2 (10Gbps) Ports
4


Native USB 3.2 Gen 1 (5Gbps) Ports
0


Native USB 2.0 (480Mbps) Ports
1


Native SATA Ports
0


PCI Express Version
PCIe 5.0


Native PCIe Lanes (Total/Usable)
28/24


Additional Usable PCIe Lanes from Motherboard
AMD X670E 12x Gen4


AMD X670   12x Gen4


AMD B650E  8x Gen4


AMD B650    8x Gen4


NVMe Support
Boot, RAID0, RAID1, RAID10


System Memory Type
DDR5


Memory Channels
2


Max. Memory
128GB


System Memory Subtype
UDIMM


Max Memory Speed
2x1R DDR5-5200


2x2R DDR5-5200


4x1R DDR5-3600


4x2R DDR5-3600


ECC Support
Yes (Requires mobo support)


Graphics Capabilities


Integrated Graphics
Yes


Graphics Model
AMD Radeon Graphics


Graphics Core Count
2


Graphics Frequency
2200 MHz


GPU Base
400 MHz


USB Type-C DisplayPort Alternate Mode
Yes


Key Features


Supported Technologies
AMD EXPO Technology


AMD Ryzen Technologies


Warranty
3 Years



*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
