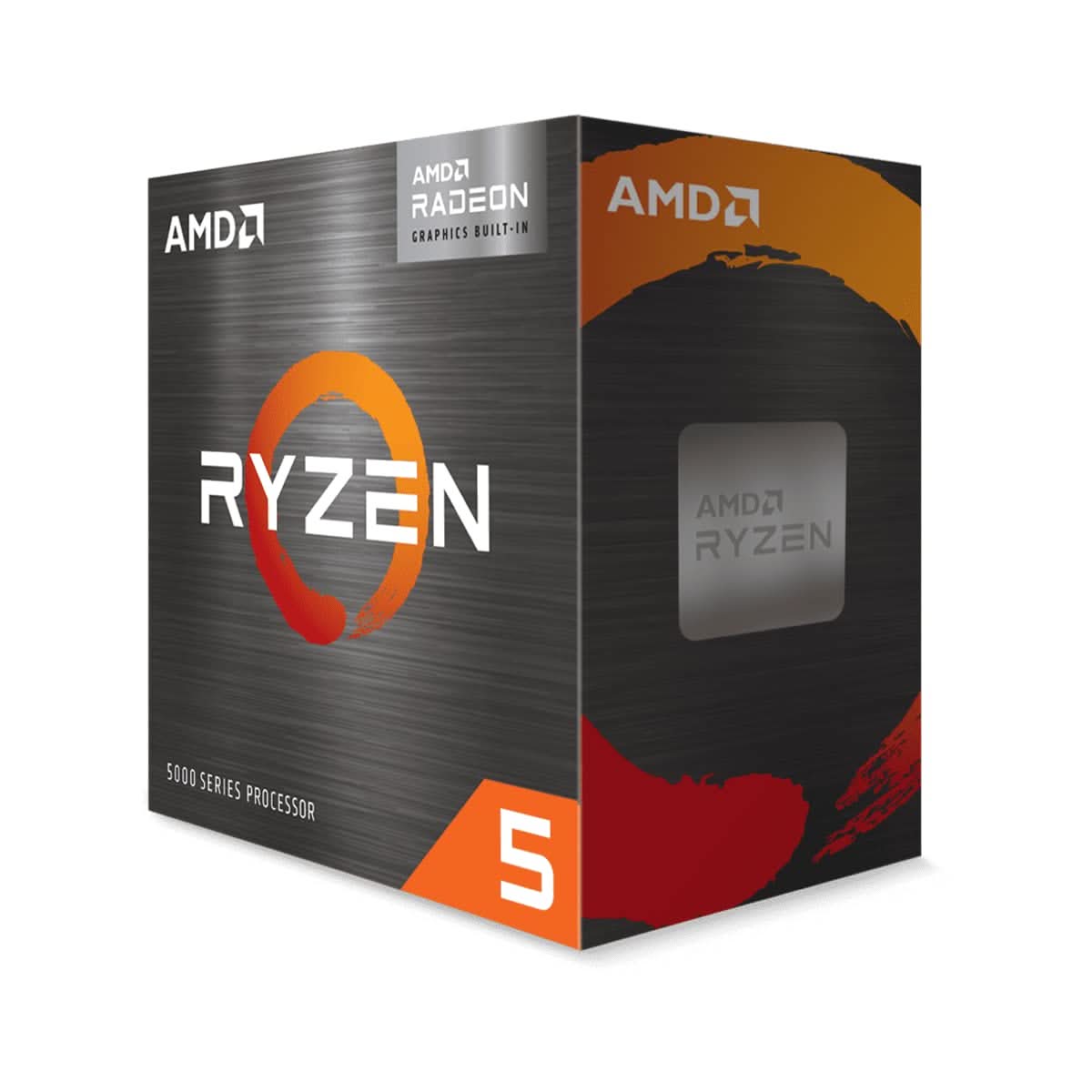

AMD RYZEN 5 5600G 6 CORE UPTO 4.4 GHZ AM4 PROCESSOR

Specifications




General Specifications





Platform




Boxed Processor






Product Family



AMD Ryzen Processors





Product Line



AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics





# of CPU Cores



6





# of Threads



12





Max. Boost Clock



Up to 4.4GHz





Base Clock



3.9GHz





L2 Cache



3MB





L3 Cache



16MB





Default TDP



65W





AMD Configurable TDP (cTDP)



45-65W





Processor Technology for CPU Cores



TSMC 7nm FinFET




Unlocked for Overclocking



Yes
AMD`s product warranty does not cover damages caused by overclocking, even when overclocking is enabled via AMD hardware and/or software. GD-26.






CPU Socket




AM4






Thermal Solution (PIB)



Wraith Stealth





Max. Operating Temperature (Tjmax)



95∞C





Launch Date



4/13/2021





*OS Support




Windows 11 - 64-Bit Edition






Windows 10 - 64-Bit Edition





RHEL x86 64-Bit





Ubuntu x86 64-Bit





*Operating System (OS) support will vary by manufacturer.



Connectivity



PCI Express Version
PCIeÆ 3.0


System Memory Type
DDR4


Memory Channels
2


System Memory Specification
Up to 3200MHz


Graphics Capabilities



Integrated Graphics
Yes


Graphics Model
Radeon Graphic


Graphics Core Count
7


Graphics Frequency
1900 MHz
