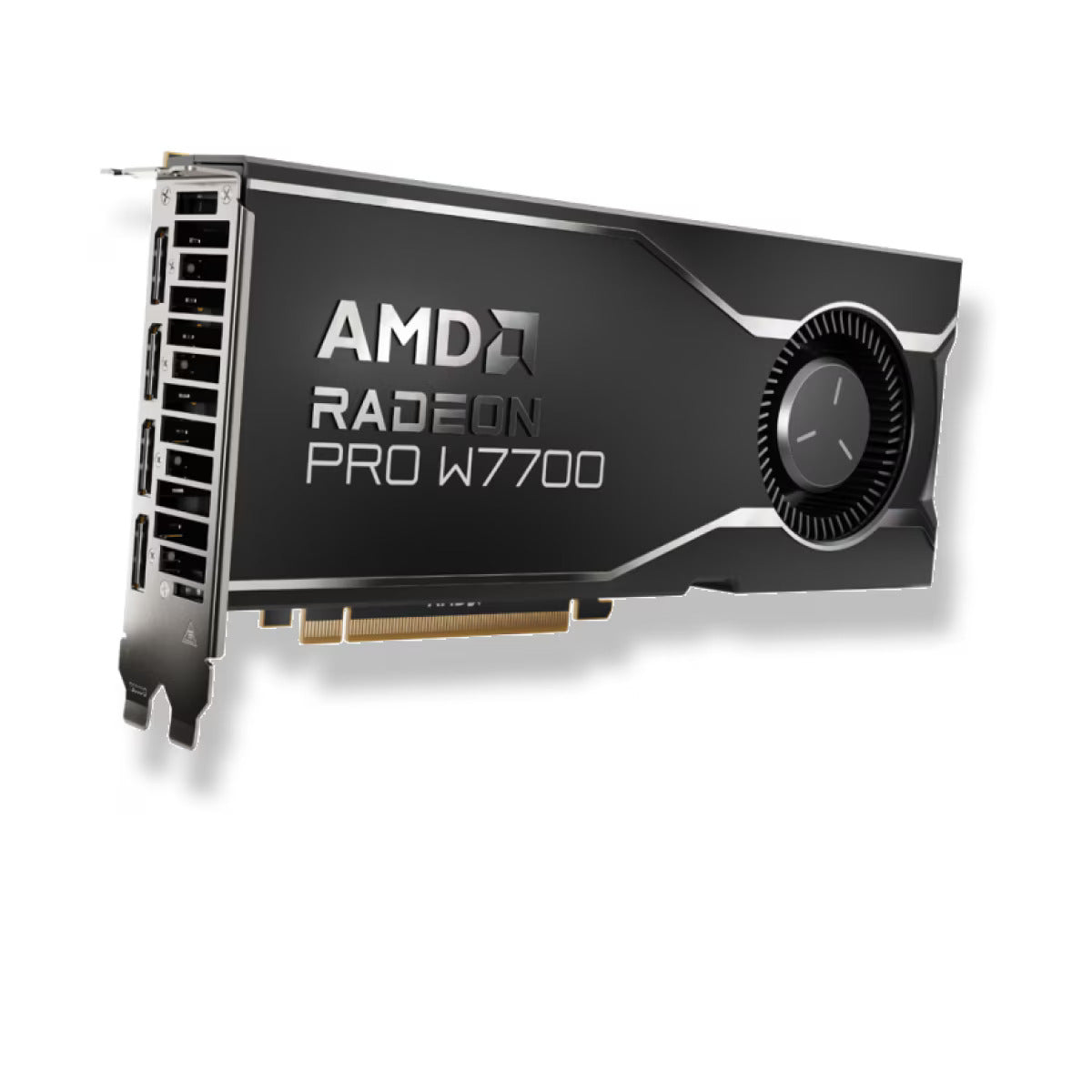

AMD RADEON PRO W7700 16GB GDDR6 PROFESSIONAL GRAPHICS CARD

About this item


Accessories Smartphones model Radeon PRO W7700 16GB (RDNA 3, 4x DisplayPort 2.1)
Item Package Dimension: 12.3228346331L x 7.3622047169W x 2.8346456664H inches
Item Package Weight - 2.755778275 Pounds
Item Package Quantity - 1
Product Type - VIDEO CARD


Specifications:




Product Basics
Value


Name
AMD Radeon PRO W7700


Family
Radeon PRO


Series
Radeon PRO W7000 Series


Form Factor
Workstations


GPU Specifications



GPU Architecture
AMD RDNA 3


Hardware Raytracing
Yes


Lithography
TSMC 5nm GCD 6nm MCD


Ray Accelerators
48


AI Accelerators
96


Stream Processors
3072


Compute Units
48


Peak Half Precision (FP16) Performance
56.54 TFLOPs


Peak Single Precision Matrix (FP32) Performance
28.3 TFLOPs


Transistor Count
28.1 Billion


OS Support
Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, Linux x86 64-Bit


Requirements



External Power Connectors
1x8-Pin


Total Board Power (TBP)
190W Peak


Minimum PSU Recommendation
650W


GPU Memory



Dedicated Memory Size
16 GB


Dedicated Memory Type
GDDR6


AMD Infinity Cache Technology
64 MB


Memory Interface
256-bit


Peak Memory Bandwidth
576 GB/s


Memory ECC Support
Yes


Board Specifications



GPU Form Factor
PCIe Add-in Card


Bus Type
PCIe 4.0 x16 (3.0 Backward Compatible)


Cooling
Active


Display Outputs
4x DisplayPort 2.1 (UHBR 13.5)


Display Configurations


4x 4096 x 2160 (4K DCI) @ 120Hz with DSC
2x 6144 x 3456 (6K) 12-bit HDR @ 60Hz Uncompressed
1x 7680 x 4320 (8K) 12-bit HDR @ 60Hz Uncompressed
1x 12288 x 6912 (12K) @ 120Hz with DSC




HDR Support
Yes


8K Support
Yes


10K Support
Yes


12K Support
Yes


Dimensions



Board Height
Full Height


Board Length
9.5" (241 mm)


Board Width
Double Slot


Additional Features



Supported Rendering Formats
1x Encode & Decode (AV1), 2x Decode (H265/HEVC, H264), 2x Encode (H265/HEVC, H264)


Supported Technologies
AMD Viewport Boost, AMD Remote Workstation, AMD Radeon Media Engine, AMD Software PRO Edition, AMD Radeon VR Ready Creator, AMD Radeon Pro Render


10-bit Display Color Output
Yes


12-bit Display Color Output
Yes


3D Stereo Support
Yes


Software API Support



DirectX
12.0 Ultimate


OpenGL
4.6


OpenCL
2.1


Vulkan
1.3


Warranty
3 Years
