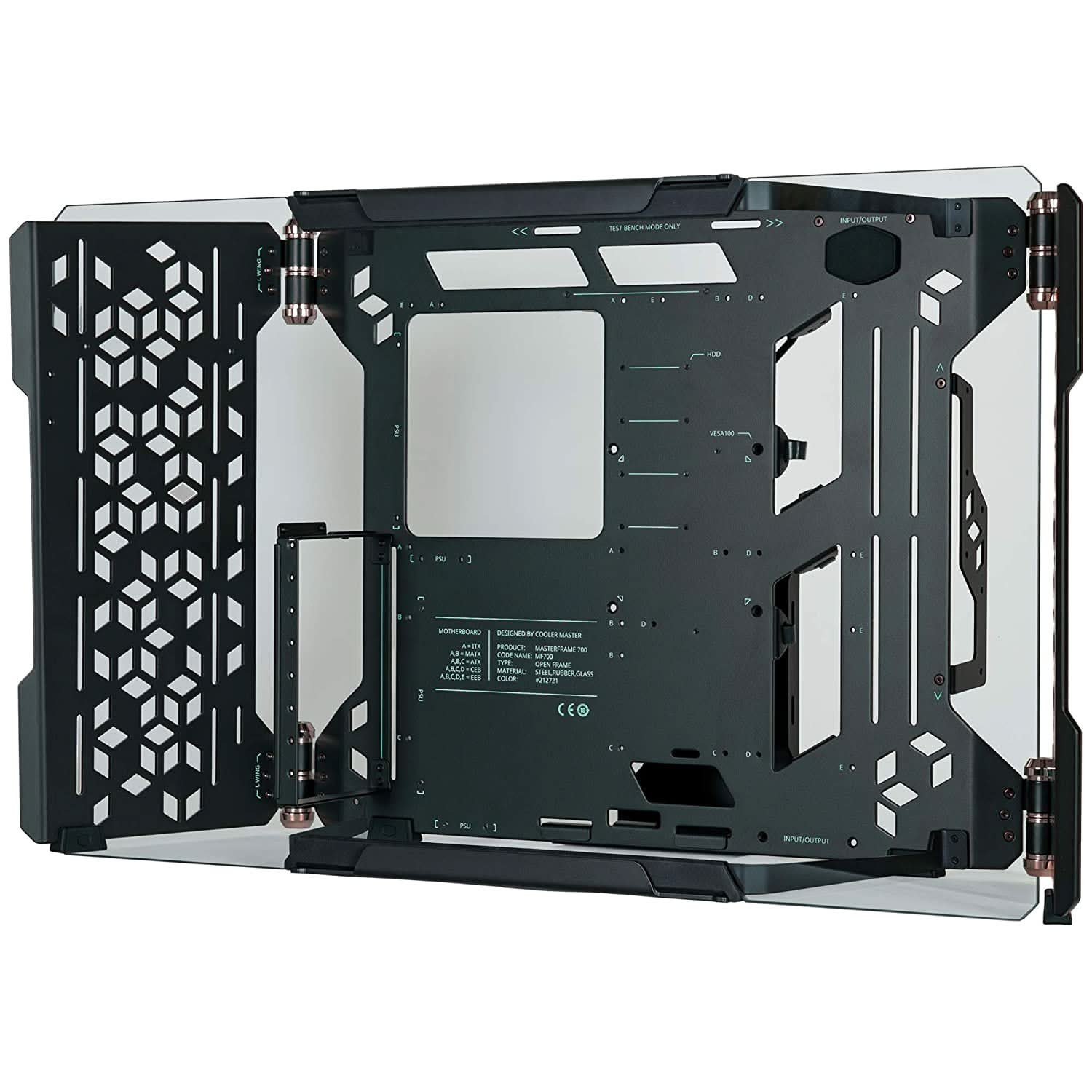

For its size, MasterFrame 700 sports an unmatched level of hardware compatibility. It is designed to fit any component available, even oversized ones. Users can mount up to SSI-EEB motherboards, multiple power supplies and multiple radiators at the same time and still have room for triple slots GPUs and storage.
Â
Our goal is to provide a limitless experience in hardware support. MasterFrame 700 allows you to mount any motherboard in the consumer market, even going so far as to support 14x14" SSI-EEB motherboards. If SSI-EEB motherboards are installed the support for the pump and radiator is covered, but when using any other motherboard format the support remains present and accessible. Double support for ATX power supplies is available on the back, for systems that need double power supply and to cover every need during extreme overclocking sessions.
Â
Our goal is to provide a limitless experience in hardware support. MasterFrame 700 allows you to mount any motherboard in the consumer market, even going so far as to support 14x14" SSI-EEB motherboards. If SSI-EEB motherboards are installed the support for the pump and radiator is covered, but when using any other motherboard format the support remains present and accessible. Double support for ATX power supplies is available on the back, for systems that need double power supply and to cover every need during extreme overclocking sessions.
Â
Â
| SERIES | MasterFrame Series |
| SIZE | Full Tower |
| AVAILABLE COLOR(S) | Black |
| MATERIALS | Steel, Tempered Glass |
| DIMENSIONS (L X W X H) | 702 x 306 x 410mm / 27.64 x 12.05 x 16.14inch (Incl. Panels) |
| MOTHERBOARD SUPPORT | SSI EEB, SSI CEB, XL-ATX, E-ATX, ATX, Micro ATX, Mini ITX |
| EXPANSION SLOTS | 8 |
| 5.25" DRIVE BAYS | N/A |
| 2.5" / 3.5" DRIVE BAYS (COMBO) | Up to 4 (PSU cover) |
| 2.5" DRIVE BAYS | 7 (3 SSD brackets + 4 PSU cover) |
| I/O PANEL | 2x USB 3.1 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic) |
| PRE-INSTALLED FANS - TOP | N/A |
| PRE-INSTALLED FANS - FRONT | N/A |
| PRE-INSTALLED FANS - REAR | N/A |
| PRE-INSTALLED FANS - BOTTOM | N/A |
| FAN SUPPORT - TOP | N/A |
| FAN SUPPORT - FRONT | N/A |
| FAN SUPPORT - RIGHT SIDE | 3x 120mm / 2x 140mm |
| FAN SUPPORT - LEFT SIDE | 3x 120mm / 2x 140mm |
| RADIATOR SUPPORT - TOP | Up to 360/420mm |
| RADIATOR SUPPORT - RIGHT SIDE | Up to 280/360mm |
| RADIATOR SUPPORT - LEFT SIDE | Up to 280/360mm |
| CLEARANCE - CPU COOLER | 158mm / 6.22inch |
| CLEARANCE - PSU | 210mm / 8.26inch |
| CLEARANCE - GFX | Up to 450mm / 17.71inch, 310mm / 12.20inch recommended for maximum compatibility |
| CABLE ROUTING | 100mm |
| DUST FILTERS | N/A |
| POWER SUPPLY SUPPORT | 2x ATX |
| MODEL NUMBER | MCF-MF700-KGNN-S00 |
| Featured | Yes |
|---|---|
| brand | Cooler Master |
